Vivotek FD9182-H 5MP H.265 Indoor Recessed Dome, IoTSecurity
Quantity:
- 1/2.7" Progressive CMOS Sensor
- 20 fps @ 2560x1920
- Smart Stream III to Optimize Bandwidth Efficiency
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- SNV (Supreme Night Visibility) for Low Light Conditions
Overview

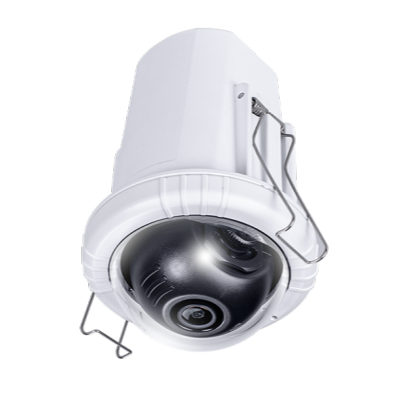

VIVOTEK's FD9182-H is a H.265 recessed dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9182-H is capable of capturing high-quality imagery in both high contrast and low light environments. The recess mounted design enables discreet and elegant ceiling installations. FD9182-H is able to blend into any indoor surveillance space such as retail, banking, restaurants, offices, and other public areas.
- Model
- FD9182-H
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128 MB
- RAM
- 512 MB
Camera Features
- Image Sensor
- 1/2.7" Progressive CMOS
- Max. Resolution
- 2560x1920 (5MP)
- Lens Type
- Fixed-focal
- Focal Length
- f = 2.8 mm
- Aperture
- F2.0
- Iris Type
- Fixed Iris
- Field of View
- 103° (Horizontal)
76° (Vertical)
134° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- Minimum Illumination
- 0.03 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
- Pan Range
- ±80°
- Tilt Range
- 65°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Storage
- Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 20 fps @ 2560x1920
- Maximum Streams
- 3 video streams (Up to 8 configurable profiles)
- S/N Ratio
- 65 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings
- General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
Audio
- Audio Capability
- One-way Audio
- Audio Compression
- G.711, G.726
- Audio Interface
- Built-in microphone
- Effective Range
- 5 meters
Network
- Users
- Live viewing for up to 10 clients
- Security
- Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
- Protocols
- 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
- Video Motion Detection
- Five-window video motion detection
- VADP Package
- Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event
- Event Trigger
- Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
- Event Action
- Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mpbs Network/PoE connection
- LED Indicator
- System power and status indicator
- Power Input
- IEEE 802.3af PoE Class 2
- Power Consumption
- Max. 3.6 W
- Dimensions
- Ø 82 x 122 mm
- Weight
- 353 g
- Certifications
- EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262); IA: BIS (IS 13252)
- Operating Temperature
- Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Humidity
- 90% RH (non-condensing)
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 10
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
Included Accessories
- Packing Contents
- Quick installation guide
