Key Features
- Image Sensor 1/2.7" Progressive CMOS
- 30 fps @ 2560x1920, 60 fps @ 1920x1080
- WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
- Built-in IR Illuminators, Effective up to 30 Meters
- Smart IR Technology to Avoid Overexposure
- Trend Micro IoT Security
- 2.8mm Fixed Lens
- NDAA Compliance
Camera Features
- Image Sensor 1/2.7" Progressive CMOS
- Max. Resolution 2560x1920 (5MP)
- Lens Type Fixed-focal
- Focal Length f = 2.8 mm
- Aperture F2.0
- Auto-iris Fixed-iris
- Field of View 103° (Horizontal), 76° (Vertical), 134° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*4
- Minimum Illumination 0.06 Lux @ F2.0 (Color), 0.01 Lux @ F2.0 (B/W), 0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot type: Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 2560x1920, 60 fps @ 1920x1080
- Maximum Streams 3 simultaneous streams (Up to 8 configurable profiles)
- S/N Ratio 55 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control(exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
- Audio Capability One-way Audio
- Audio Compression G.711, G.726
- Audio Interface Built-in microphone
- Effective Range 5 meters
- Users Live viewing for up to 10 clients
- Security Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
- Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF Supported Profiles G, S, T
- Smart Motion Five-window video motion detection, human detection, time filter (Without bounding box)
- Smart VCA Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection
- VADP Package Deep Learning VCA (Smart Motion Detection, Smart VCA*), Trend Micro IoT Security (3-year free trial) *License required. Free trial license is not supported.
- Event Trigger Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
- Alarm Events Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card. File upload via email, HTTP, FTP/SFTP, NAS server, SD card
- Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection
- LED Indicator System power and status indicator
- Power Input IEEE 802.3af PoE Class 0
- Power Consumption Max. 6.3 W (IR on), Max. 3.9 W (IR off)
- Dimensions Ø 130 x 95.3 mm
- Weight 350 g
- Certifications
- EMC: CE (EN55032, EN55024 Class B, E50121-4), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B);
- Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471);
- IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
- Operating Temperature Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F), Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Humidity 90%
- Warranty 36 Months
- Quick installation guide, alignment sticker, screw pack
Overview

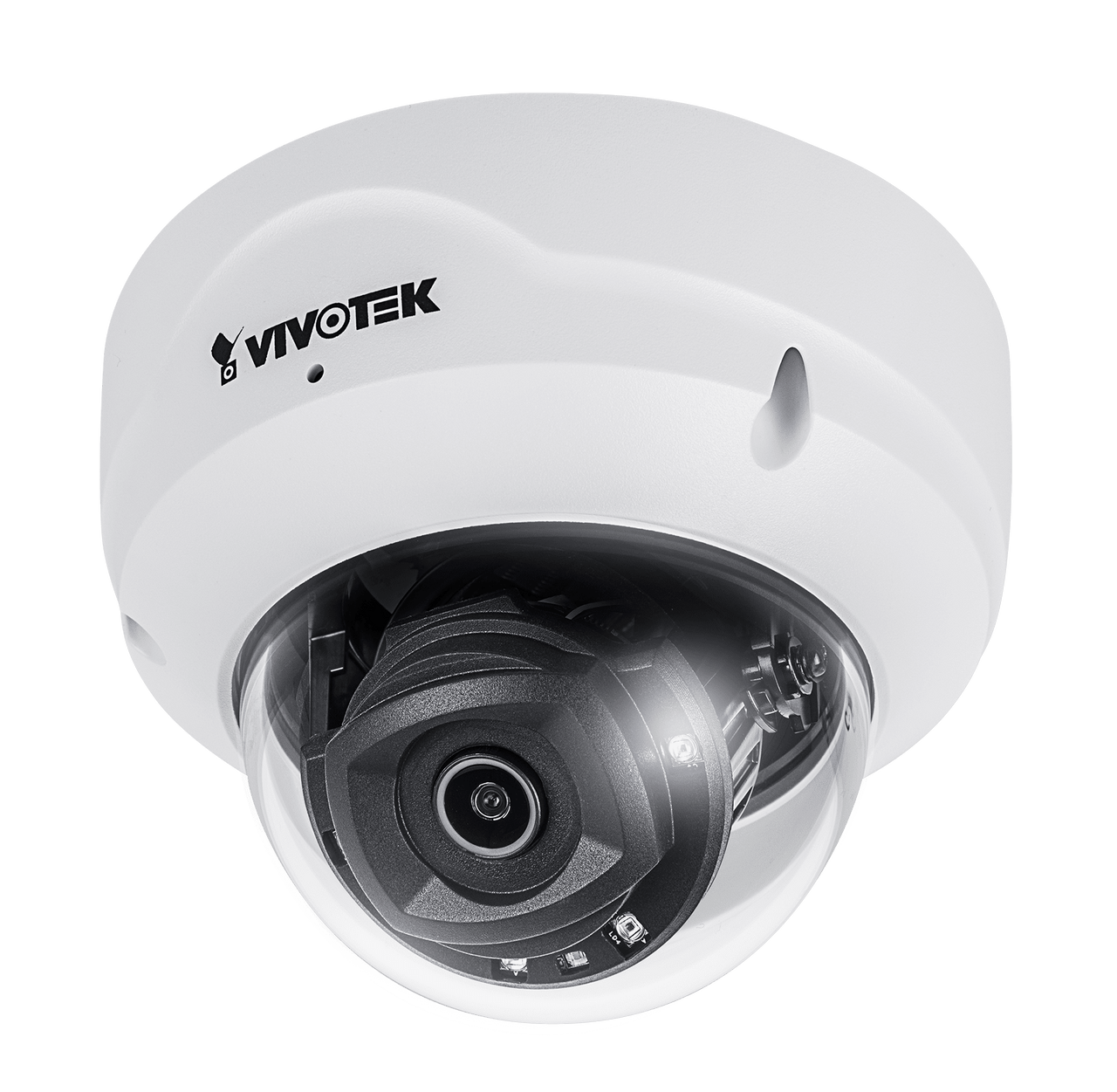

VIVOTEK’s FD9189-v2 series is a H.265 indoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9189-v2 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.
The FD9189-v2 series offers two lens options for different user scenarios: fixed-focal and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility.

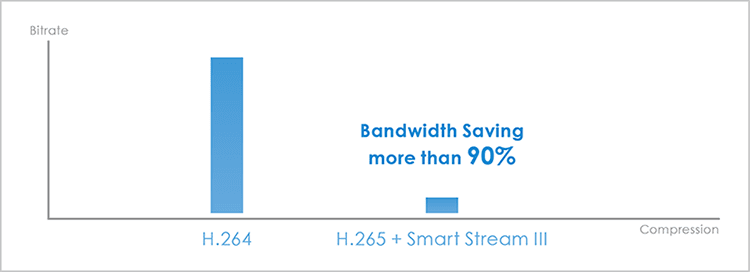

The FD9189-v2 series comes with VIVOTEK's Smart Stream III technology and H.265 codec support. It is capable of reducing bandwidth consumption to 90%* while maintaining supreme image quality. Additionally, VIVOTEK's VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market. * Depending on scenes
