Vivotek

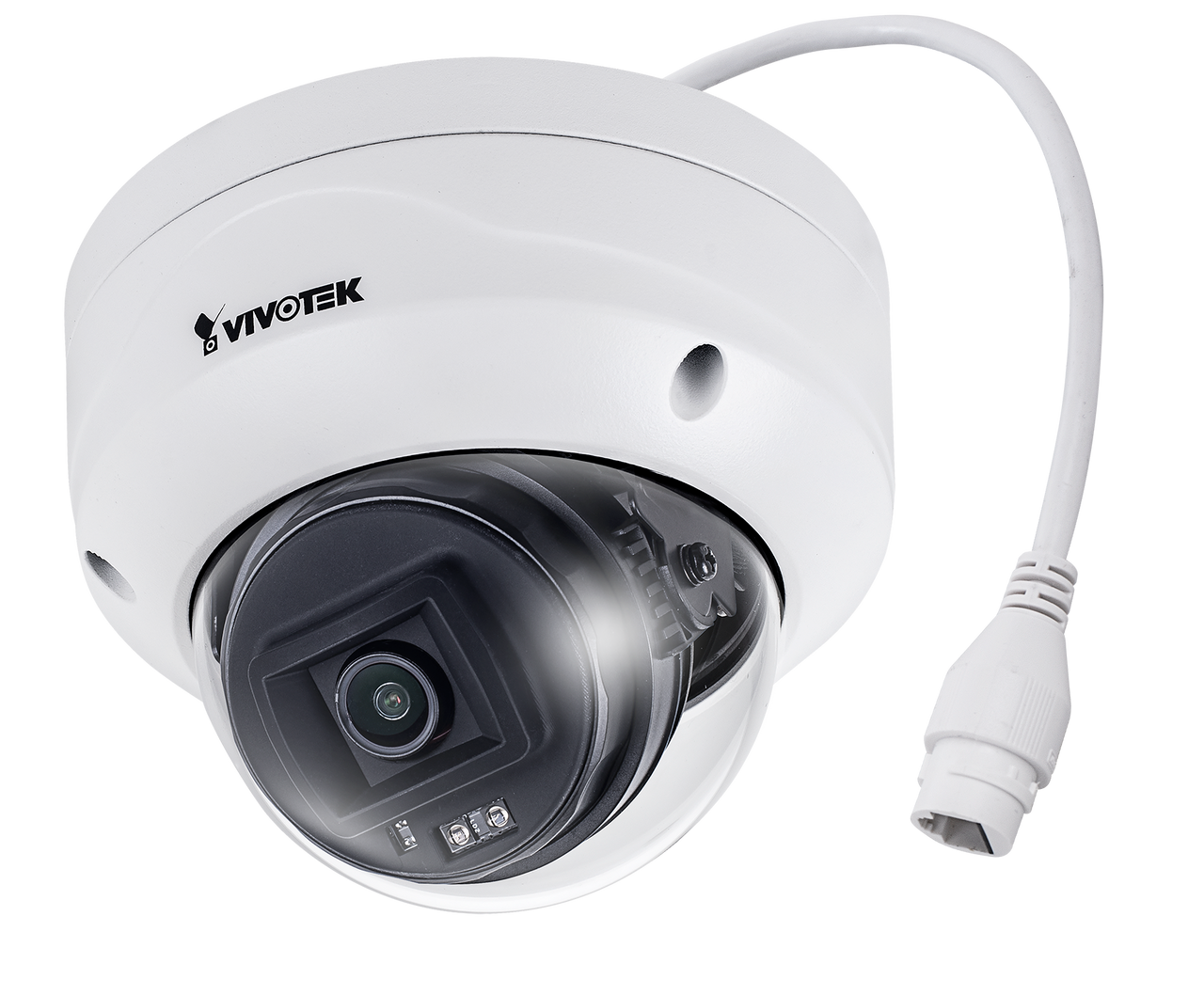

Vivotek FD9360-H 2MP 3.6mm Dome Network Camera
Discontinued - Recommended Replacement: FD9360-HF2
Features
- Image Sensor 1/2.9" Progressive CMOS
- Max. Resolution 1920x1080 (2MP)
- Lens Type Fixed-focal
- Focal Length f = 3.6 mm
- Aperture F2.0
- Iris type Fixed-iris
- Field of View 81° (Horizontal), 44° (Vertical), 95° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut filter Yes
- IR Illuminators Built-in IR Illuminators up to 30 meters with Smart IR, IR LED*2
- Minimum Illumination 0.065 lux @ F2.0 (Color), <0.005 lux @ F2.0 (B/W), 0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
- Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 1920x1080
- Maximum Streams 3 simultaneous streams
- S/N Ratio 68 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III
- Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation
- Users Live viewing for up to 10 clients
- Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported
- Video Motion Detection Five-window video motion detectinon
- VADP Package Trend Micro IoT Security, Stratocast
- Alarm Triggers Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events Event notification via email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card
- Connectors RJ-45 cable connector for Network 10/100
- Mbps PoE connection*1
- LED Indicator System power and status indicator
- Power Input IEEE 802.3af PoE Class 2
- Power Consumption Max. 6.49 W (IR on), Max. 3.69 W (IR off)
- Dimensions Ø 117.2 x 89.6 mm
- Weight 540 g
- Casing IP66, IK10 (Housing)
- Safety Certifications CE, FCC Class B, UL, LVD, VCCI, C-Tick
- Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F); Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
- Humidity 90%
- Warranty 24 months
- Quick installation guide, alignment sticker, screw pack, cable gland
Overview
VIVOTEK’s FD9360-H is a H.265 outdoor dome network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920x1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9360-H is capable of capturing high-quality imagery in both high contrast and low light environments.
The FD9360-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the FD9360-H is encased in IP66 and IK10 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9360-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.
