Vivotek

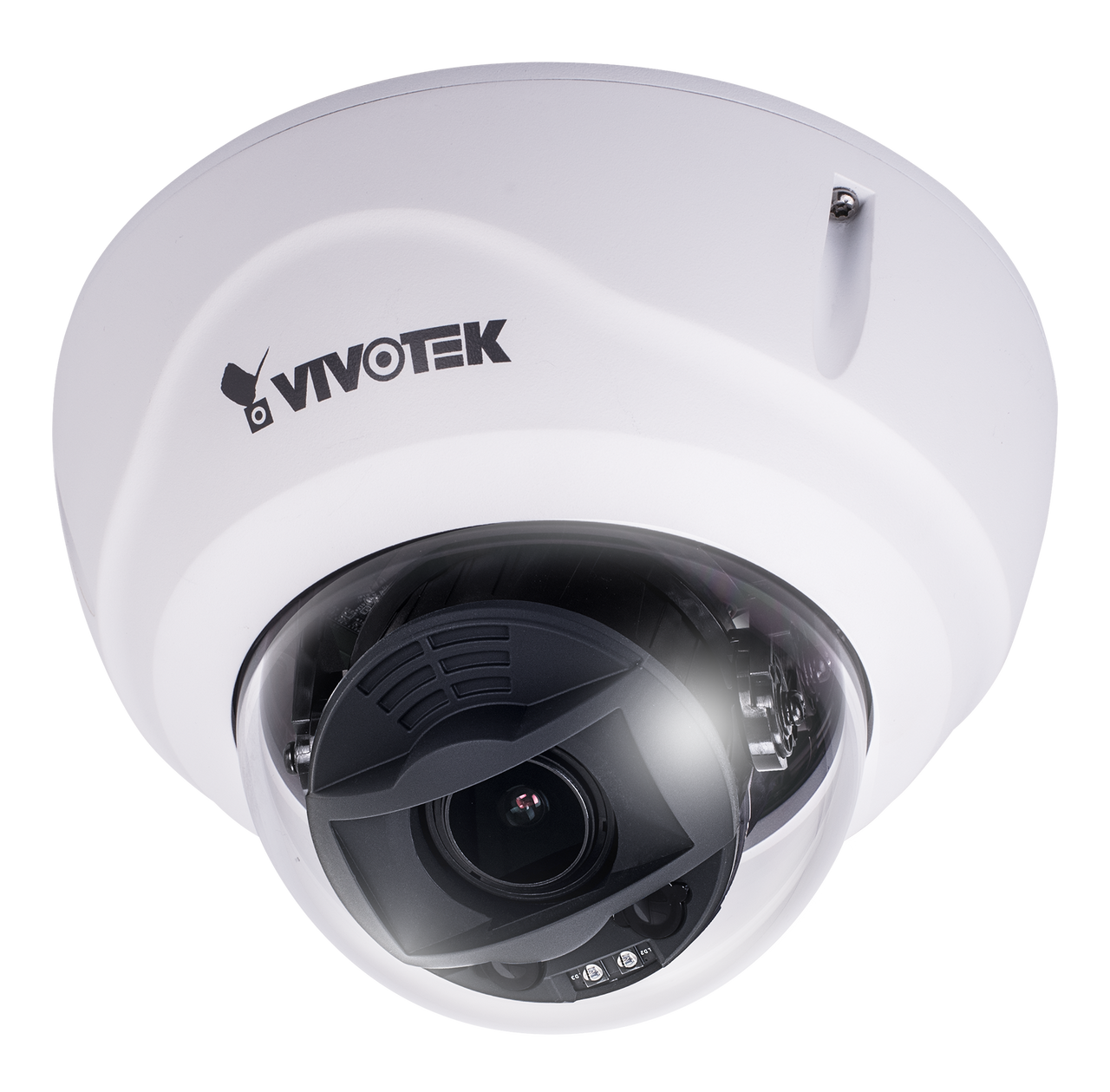

Vivotek FD9365-HTV-A 2MP Remote Focus Dome Network Camera
Discontinued - Recommended Replacement: FD9365-HTV-2(Release in Dec, 2022)
Discontinued - Recommended Replacement: FD9365-HTV-2 (Release in Dec, 2022)
Vivotek FD9365-HTV-A Features
Camera Features
- Image Sensor 1/2" Progressive CMOS
- Max. Resolution 1920x1080 (2MP)
- Lens Type Motorized, Vari-focal, Remote Focus
- Focal Length f = 4 ~ 9 mm (f = 2.8 ~ 11.4 mm, equivalent focal length @ 1/2.8")
- Aperture F1.3 ~ F2.2
- Auto-iris P-iris
- Field of View 46° ~ 120° (Horizontal), 26° ~ 60° (Vertical), 53° ~ 152° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
- Minimum Illumination 0.015 Lux @ F1.3 (Color) <0.005 Lux @ F1.3 (B/W), 0 Lux with IR illumination on
- Pan Range 350°
- Tilt Range 60°
- Rotation Range ±175°
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
Video
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 60 fps @ 1920x1080
- Maximum Streams 3 simultaneous streams
- S/N Ratio 68 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III
- Image Settings Time stamp, text overlay, flip and mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, HLC, defog, 3DNR, video rotation
Audio
- Audio Capability Two-way Audio (full duplex)
- Audio Compression G.711, G.726 Audio Interface Built-in microphone, External microphone input, External line output
- Effective Range 5 meters
Network
- Users Live viewing for up to 10 clients
- Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported
Solution Integration
- Smart Motion Detection Five-window video motion detection, people detection, time filter
- Smart VCA Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection
- VADP Package Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security
Alarm and Event
- Alarm Triggers Motion detection, digital input, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, shock detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection, Audio input, Audio output, AC 24V power input, DC 12V power input, Digital input *2, Digital output *2, TV out
- LED Indicator System power and status indicator
- Power Input AC 24V, DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy)
- Power Consumption PoE: Max. 11/7 W (IR on/off), DC 12V: Max. 8/4 W (IR on/off), AC 24V: Max. 9.5/5.5 W (IR on/off)
- Dimensions Ø 155 x 103.2 mm
- Weight 909 g
- Casing IP66, IP67, IK10
- Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
- Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F), Working Temperature(IR on): -30°C ~ 50°C (-22°F ~ 122°F), Working Temperature (IR off): -30°C ~ 60°C (-22°F ~ 140°F)
- Humidity 98%
- Warranty 36 Months
Included Accessories
- Quick installation guide, warranty card, alignment sticker, screw pack, conduit ring, desiccant bag, waterproof accessory bag
Please note: The -A indicates products that are National Defense Authorization Act compliant. We have a link to Vivotek's full statement and compliant products list under the Data Sheets & Manuals tab.
Vivotek FD9365-HTV-A Overview
The FD9365-HTV-A is the new flagship outdoor dome network camera from VIVOTEK, equipped with a full HD sensor capable of 1920 x 1080 resolutions at 60 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the FD9365-A series is capable of capturing the highest quality images in both low light and high contrast environments.
The FD9365-A series also offers the best in night time surveillance technology. By adopting Vari-angle IR technology from VIVOTEK speed domes, the FD9365-A IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range up to 50 meters.
Additionally, the FD9365-A series employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth up to 90%* while still maintaining excellent image quality. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios. Protecting all these features is the FD9365-A's IP66, IP67 and IK10 rated housing.
The FD9365-A series also now includes a new wave of advanced Video Content Analysis (VCA) - Smart VCA, including intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection. These features are the next steps in elevating surveillance cameras from image capturing devices to advanced notification instruments, allowing users to see more in smarter ways.
