Vivotek FD9367-EHTV 2MP H.265 Remote Focus Dome Network Camera

Discontinued - Recommended Replacement: FD9367-EHTV-v2

Vivotek FD9367-EHTV Features

Camera Features

• Image Sensor 1/2.8 Progressive CMOS
• Max. Resolution 1920x1080
• Lens Type Vari-focal, Remote Focus
• Focal Length f = 2.8 ~ 12 mm
• Aperture F1.4 ~ 2.8
• Auto-iris P-iris
• Field of View 33° ~ 97° (Horizontal), 19° ~ 53° (Vertical), 38° ~ 114° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Day/Night Removable IR-cut filter for day & night function
• Minimum Illumination 0.07 Lux @ F1.4 (Color), 0.001 Lux @ F1.4 (B/W), 0 Lux with IR illumination on
• Pan Range 350°
• Tilt Range 80°
• Rotation Range 180°
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR II, IR LED*4
• On-board Storage Slot type: Micro SD/SDHC/SDXC card slot, Seamless Recording

Video

• Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio 58 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and constant bit rate control; Smart Stream III
• Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC

Audio

• Audio Capability Two-way audio
• Compression G.711, G.726
• Interface Built-in Mic, External Mic input, External line output
• Effective Range 5 meters

Network

• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/ TLS
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection Five-window video motion detection

Alarm and Event

• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card
• File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors RJ-45 cable connector for Network 10/100 Mbps PoE connection, Audio Mic in, Audio line out, DC 12V, Digital input *1, Digital output *1
• LED Indicator System power and status indicator
• Power Input DC 12V, IEEE 802.3af PoE Class 0
• Power Consumption Max. 10 W
• Dimensions Ø 155 x 104 mm
• Weight 873 g (1.92 lb)
• Casing IP66, IK10
• Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
• Operating Temperature -50°C ~ 50°C (-58°F ~ 122°F)
• Humidity 90%
• Warranty 36 Months

System Requirements

• Operating System Microsoft Windows 8/7
• Web Browser Mozilla Firefox 7~43 (streaming only)
• Internet Explorer 10/11
• Other Players VLC: 1.1.11 or above
• Quicktime: 7 or above

Included Accessories

• Quick installation guide, warranty card, screw pack, alignment sticker

Vivotek FD9367-HTV Overview

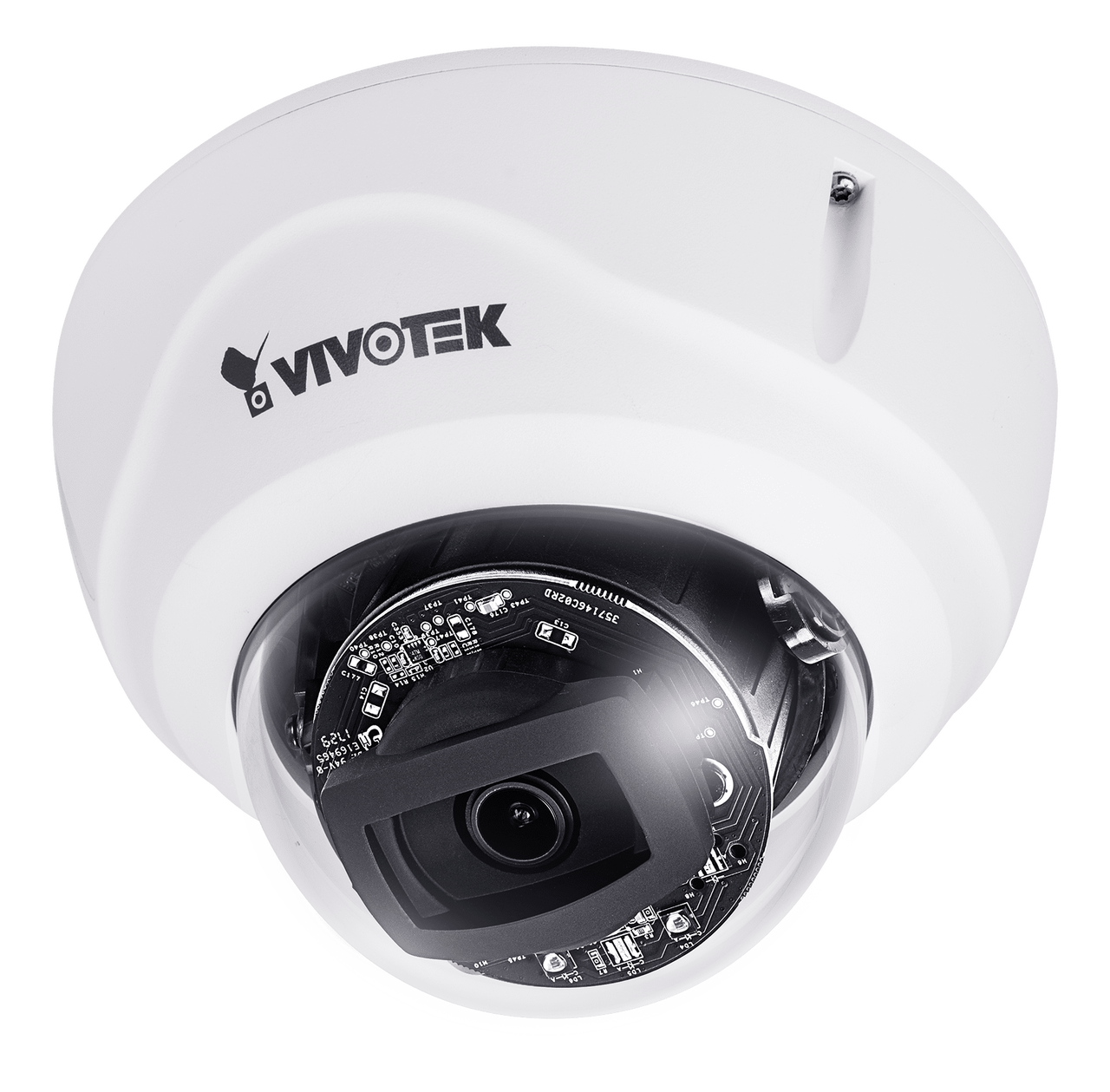

The FD9367-EHTV is the new professional outdoor IR dome network camera from VIVOTEK, equipped with a full HD sensor capable of 1920 x 1080 resolution at 30 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the FD9367-EHTV is capable of capturing the highest quality images in both low light and high contrast environments.

The FD9367-EHTV also offers great image in night time surveillance technology. By adopting Smart IR II technology from VIVOTEK speed domes, the FD9367 IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range up to 30 meters.

Additionally, the FD9367-EHTV employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios. Protecting all these features is the FD9367's IP66 and IK10 rated housing, capable of operating from -50°C to 50°C.
