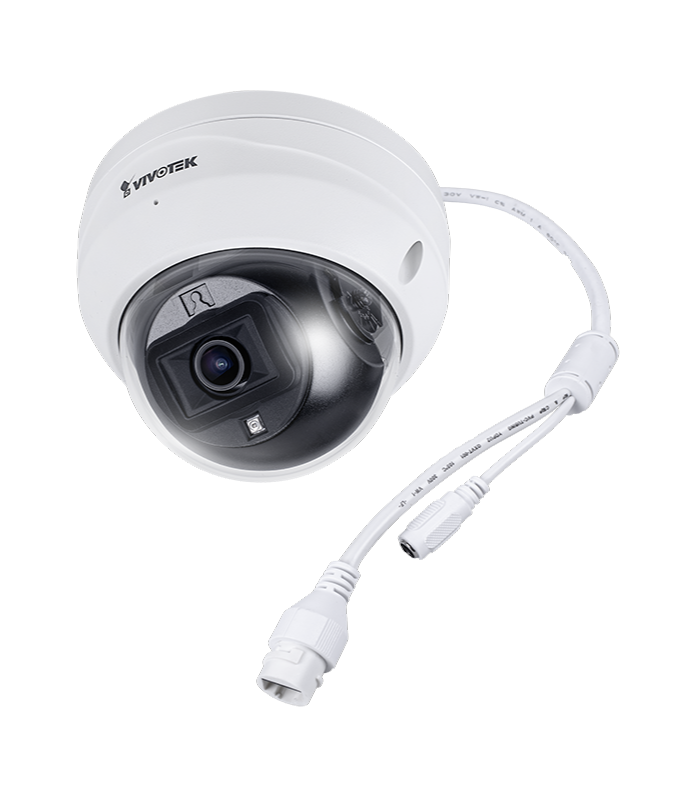

Vivotek FD9369-F2 2MP 30M IR H.265 Outdoor Dome, 2.8mm
Quantity:
VIVOTEK FD9369 is an affordable outdoor dome network camera equipped with a 2M sensor enabling resolution of 1920x1080 at 30 fps. The FD9369 offers a fixed-focus lens for different user scenarios. IR illuminators are equipped with 30-meter effective range for better night visibility. To protect the camera from a range of outdoor environments, the FD9369 is encased in robust IP66 and IK10 rated housing.
Two power input options are available: PoE (Power-over-Ethernet) and DC power, providing users with installation flexibility. In order to facilitate on-board storage and data portability, the camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording.
The FD9369 uses H.265 compression and employs VIVOTEK's Smart Stream III technology, which helps to reduce bandwidth and storage consumption. Finally, FD9369 comes with AI based deep-learning smart motion detection to reduce false alarms.
- H.265 Compression Technology
- 30 fps @ 1920x1080
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 30 Meters
- Smart IR Technology to Avoid Overexposure
- Smart Motion Detection to Reduce False Alarms
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Weather-proof IP66 and Vandal-proof IK10-rated Protection
System Information
- Model
- FD9369
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 256 MB
- RAM
- 256 MB
Camera Features
- Image Sensor
- 1/3.1" Progressive CMOS
- Max. Resolution
- 1920x1080 (2MP)
- Lens Type
- Fixed-focal
- Focal Length
- f = 2.8 mm
- Aperture
- F2.0
- Iris Type
- Fixed Iris
- Field of View
- 116° (Horizontal)
65° (Vertical)
140° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Enhanced
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1
- Minimum Illumination
- 0.08 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
- Pan Range
- 350°
- Tilt Range
- -10° ~ 75°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
- Storage
- Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 1920x1080
- Maximum Streams
- 2 video streams (Up to 7 configurable profiles)
- S/N Ratio
- 59 dB
- Video Streaming
- Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings
- General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator
Audio
- Audio Capability
- One-way audio
- Audio Compression
- G.711, G.726
- Audio Interface
- Built-in microphone
- Effective Range
- 5 meters
Network
- Users
- Live viewing for up to 10 clients
- Security
- Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management
- Protocols
- 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
- Smart Motion Detection
- Five-window video motion detection, people detection, time filter
- VADP Package
- Smart Motion Detection
Alarm and Event
- Event Trigger
- Audio detection, camera tampering detection, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
- Event Action
- Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mbps Network/PoE connection
- LED Indicator
- System power and status indicator
- Power Input
- IEEE 802.3af Class 0 PoE, DC 12V
(Simultaneous Power Redundancy Supported)
- Power Consumption
- PoE:
Max. 6.49W/4W (IR on/off)
DC 12V:
Max. 5.1W/3.4W (IR on/off)
- Dimensions
- Ø 110 x 85 mm
- Weight
- 465 g
- Certifications
- EMC: CE (EN55032 Class B,EN55035), FCC (FCC Part 15 Subpart B Class B), ICES-003 issue 7,RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22); IA: BIS (IS 13252):BSMI;Environment: IK10 (IEC 62262), IP66 (IEC 60529)
- Operating Temperature
- Starting Temperature:
-30°C ~ 50°C (-22°F ~ 122°F)
Working Temperature:
-30°C ~ 55°C (-22°F ~ 131°F) (IR off)
-30°C ~ 50°C (-22°F ~ 122°F) (IR on)
- Humidity
- 95% RH (non-condensing)
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
Included Accessories
- Packing Contents
- Quick installation guide, alignment sticker, screw pack, cable gland, desiccant bag
