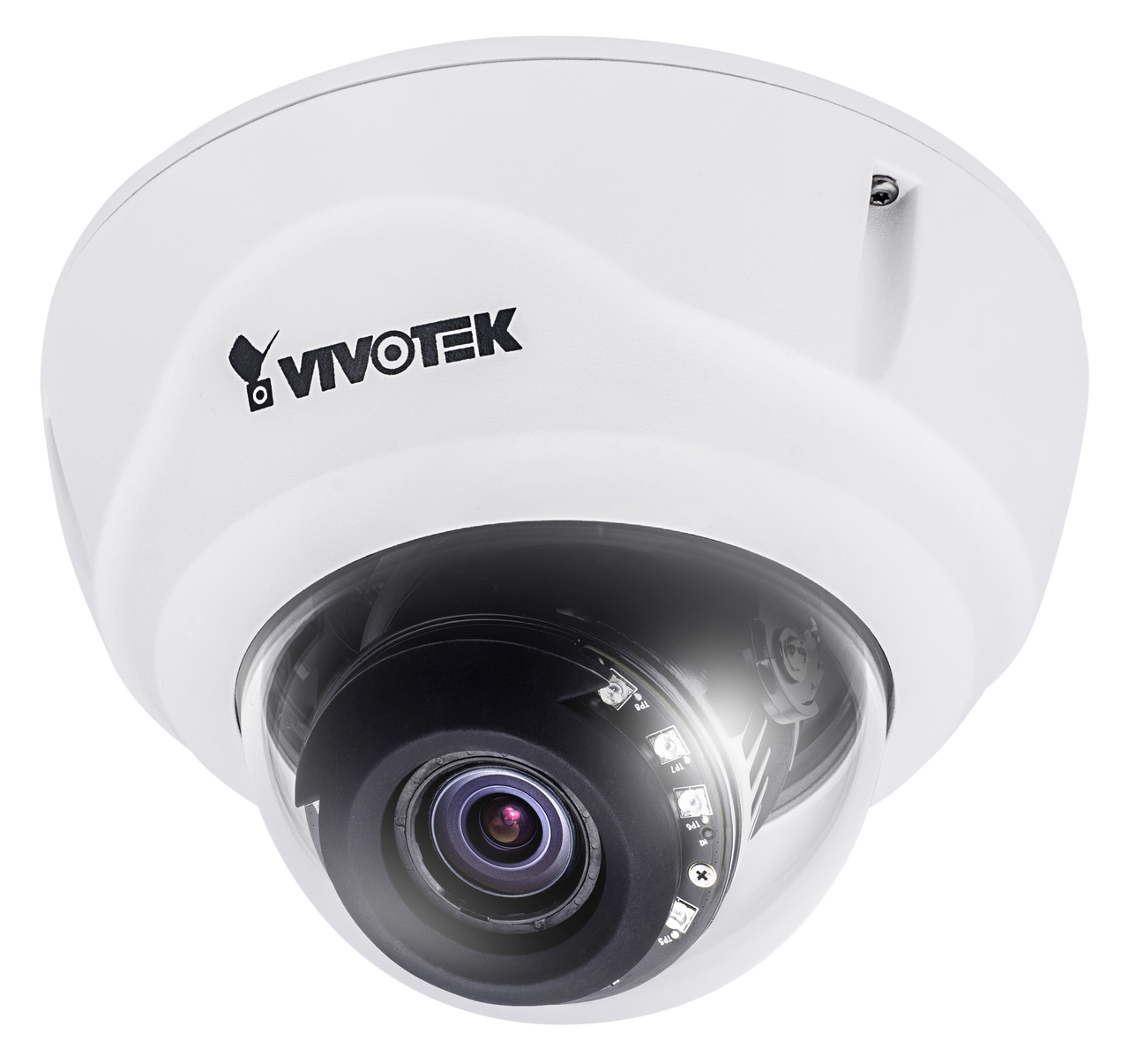

Vivotek FD9371-EHTV 3MP H.265 Extreme Weather Dome Network Camera

Replaced by the FD9387-EHTV

Vivotek FD9371-EHTV Features

• Max Resolution: 2048x1536 (3MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.01 Lux @ F1.2 (Color), 0.001 Lux @ F1.2 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 3 ~ 9 mm / F1.2 ~ F2.3
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Remote Focus
• Field of View: 41° ~ 86° (Horizontal), 31° ~ 64° (Vertical), 51° ~ 113 (Diagonal)
• Compression Styles: H.265 & H.264 & MJPEG
• Frame Rate: H.264 & H.265: 30 fps @ 2048x1536; MJPEG: 15 fps @ 2048x1536
• WDR Technology: Yes, WDR Pro
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via External microphone input & Audio output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weather-proof, IK10 vandal-proof
• Dimensions: Ø 155 x 103 mm
• Weight: 928 g (2.04 lb)
• Operating Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
• Operating Humidity: 90%
• Power/Consumption: DC 12V or IEEE 802.3at PoE / Max. 21 W (DC 12V-Heater on) or Max. 24.7 W (PoE-Heater on)
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, VAST recording software)

Vivotek FD9371-EHTV Overview

VIVOTEK's FD9371-EHTV is a brand-new professional H.265 high-efficiency outdoor dome network camera, offering 30 fps @ 3-Megapixel with outstanding image quality. Employing H.265 technology enables the camera to provide higher and more efficient image compression rates than previous H.264 systems. In addition, VIVOTEK's sophisticated Smart Stream II enables the camera to optimize resolution for a desired object or area and therefore to maximize efficiency of bandwidth usage. Combining both H.265 and Smart Stream II, the FD9371-EHTV can reduce both bandwidth and storage consumption up to 80%* while maintaining image quality of the high standard. As the professional day/night camera, the FD9371-EHTV is also equipped with WDR Pro and SNV, empowering users to enjoy superb image-detail in any lighting condition. Additionally, IP66-rated housing ensures the ability of these advanced cameras to withstand rain and dust, thus guaranteeing smooth operation even under a multitude of harsh weather conditions. The cameras’ IK10-rated housing can also provide protection against acts of vandalism and other impacts. Finally, a wide operating temperature range further enhances the performance and reliability of the FD9371-EHTV in both extremely cold and warm weather, even while using PoE.
