Vivotek FD9380-H
Network Camera Store is an Authorized Vivotek Reseller
H.265 Compression
Smart Stream III
Smart IR
MicroSD/SDHC/SDXC card slot
Removable IR-cut filter

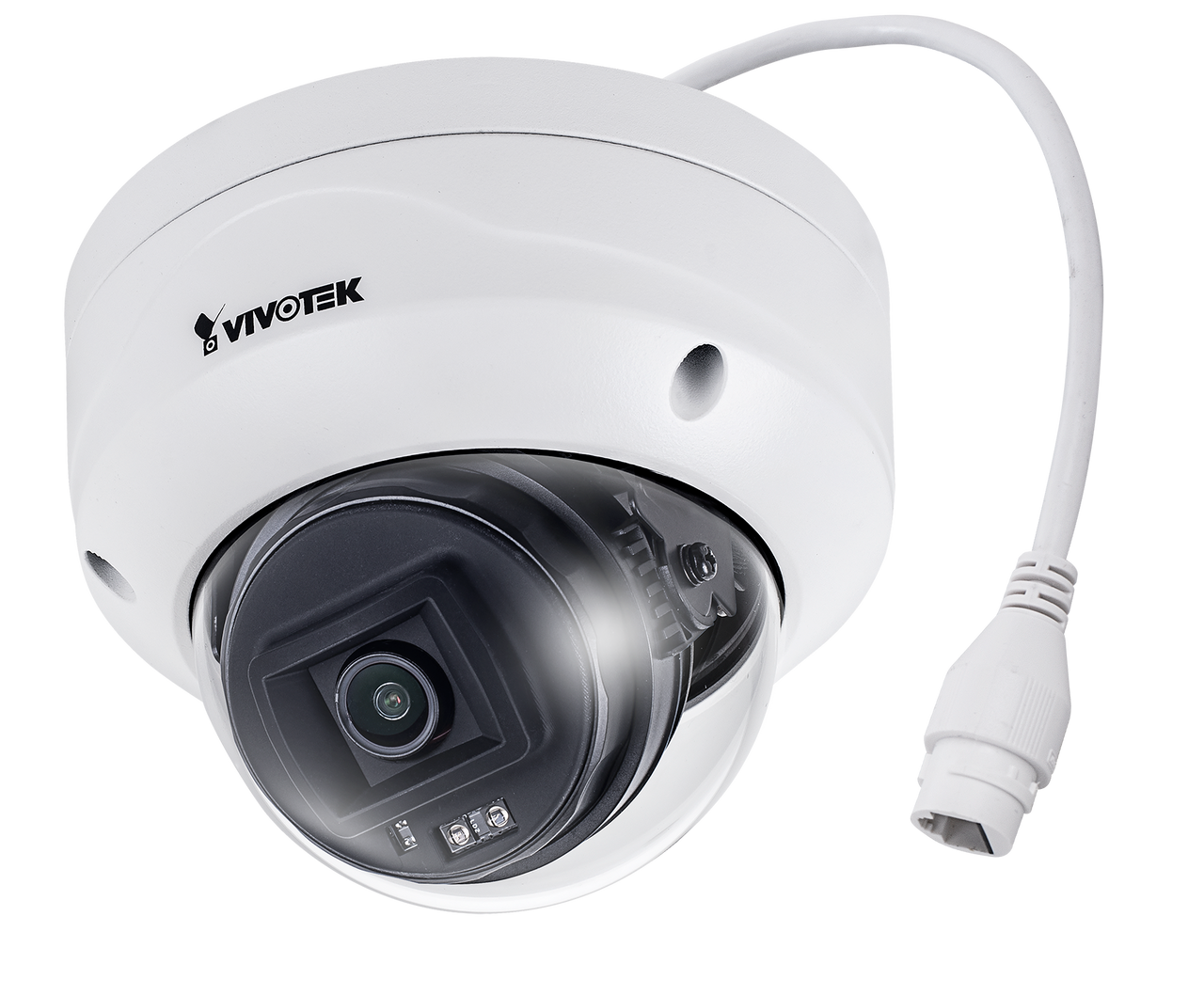

Vivotek FD9380-H 5MP 3.6mm Dome Network Camera

Vivotek

Vivotek FD9380-H 5MP 3.6mm Dome Network Camera

Sale price$187.50
Discontinued
SKU: FD9380-H

Contact

Discontinued - Replacement FD9380-HF3

Features

Camera Features
  • Image Sensor 1/2.7" Progressive CMOS
  • Max. Resolution 2560x1920 (5MP)
  • Lens Type Fixed-focal
  • Focal Length f = 3.6 mm
  • Aperture F2.0
  • Iris type Fixed-iris
  • Field of View 76° (Horizontal), 59° (Vertical), 100° (Diagonal)
  • Shutter Time 1/5 sec. to 1/32,000 sec.
  • WDR Technology WDR Pro
  • Day/Night Yes
  • Removable IR-cut filter Yes
  • IR Illuminators Built-in IR Illuminators up to 30 meters with Smart IR, IR LED*2
  • Minimum Illumination 0.03 lux @ F2.0 (Color), <0.005 lux @ F2.0 (B/W), 0 Lux with IR illumination on
  • Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
Video
  • Compression H.265, H.264, MJPEG
  • Maximum Frame Rate 20 fps @ 2560x1920
  • Maximum Streams 3 simultaneous streams
  • S/N Ratio 67 dB
  • Dynamic Range 120 dB
  • Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III
  • Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR; video rotation
Network
  • Users Live viewing for up to 10 clients
  • Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
  • ONVIF Supported
Intelligent Video
  • Video Motion Detection Five-window video motion detectinon
  • VADP Package Trend Micro IoT Security, Stratocast
Alarm and Event
  • Alarm Triggers Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Alarm Events Event notification via email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
General
  • Connectors RJ-45 cable connector for Network 10/100
  • Mbps PoE connection*1
  • LED Indicator System power and status indicator
  • Power Input IEEE 802.3af PoE Class 2
  • Power Consumption Max. 6.49 W (IR on), Max. 3.69 W (IR off)
  • Dimensions Ø 117.2 x 89.6 mm
  • Weight 540 g
  • Casing IP66, IK10(Housing)
  • Safety Certifications CE, FCC Class B, UL, LVD, VCCI, C-Tick
  • Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F), Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
  • Humidity 90%
  • Warranty 24 months
Included Accessories
  • Others Quick installation guide, alignment sticker, screw pack, cable gland

Overview

VIVOTEK’s FD9380-H is a H.265 outdoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9380-H is capable of capturing high-quality imagery in both high contrast and low light environments.

The FD9380-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the FD9380-H is encased in IP66 and IK10 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9380-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.
