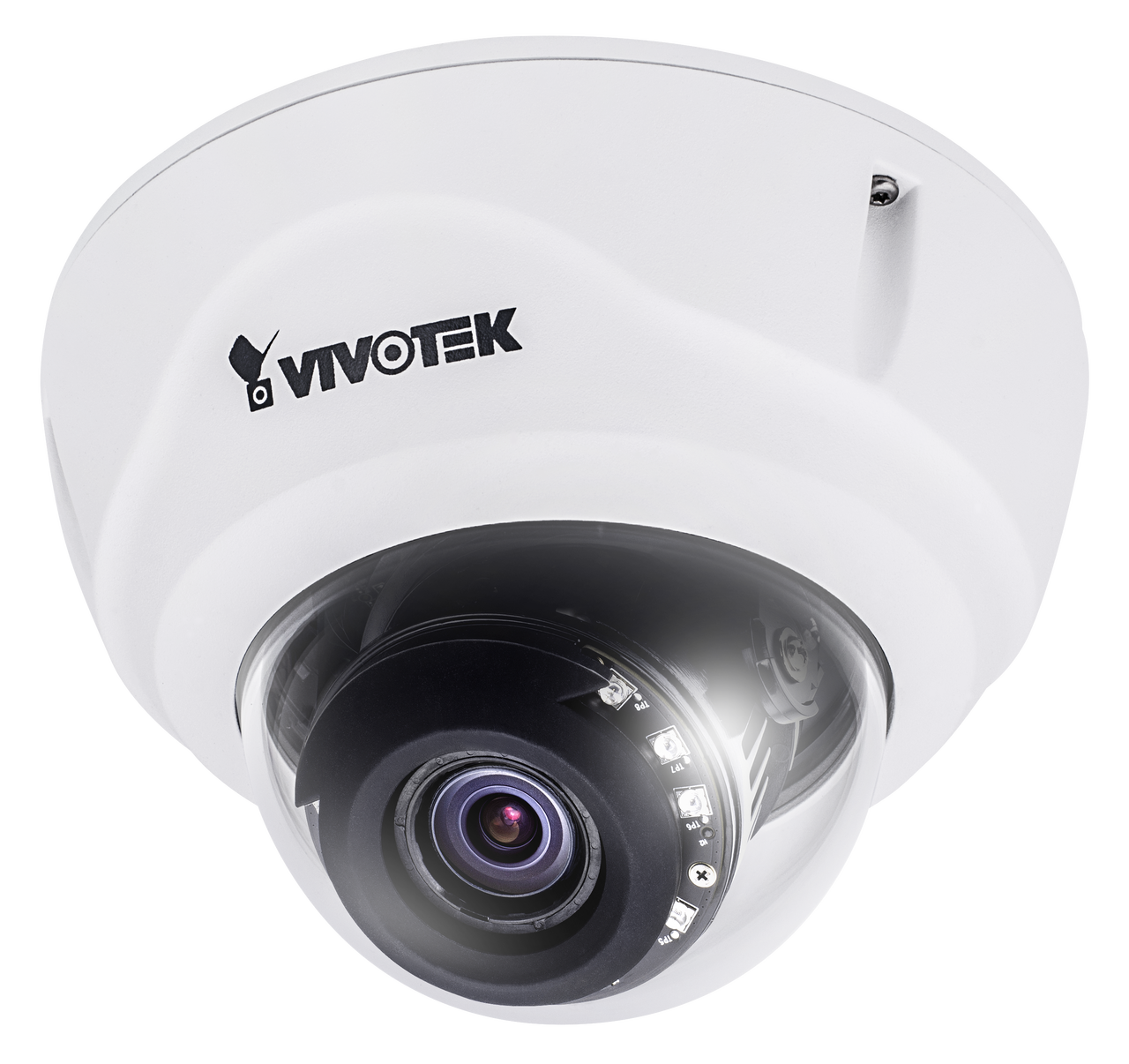

Vivotek FD9381-HTV 5MP H.265 Remote Focus Dome Network Camera

Replaced by the FD9387-HTV

Vivotek FD9381-HTV Features

• Max Resolution: 2560x1920 (5MP)
• Image Sensor: 1/1.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.04 Lux @ F1.3 (Color) 0.001 Lux @ F1.3 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 4 ~ 9 mm / F1.3 ~ F2.2
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Remote Focus
• Field of View: 45° ~ 84° (Horizontal) 34° ~ 62° (Vertical) 64° ~ 113° (Diagonal)
• Compression Styles: H.265 & H.264 & MJPEG
• Frame Rate: H.265 & H.264: 30 fps @ 2560x1920, 60 fps @ 1920x1080; MJPEG: 12 fps @ 2560x1920, 30 fps @ 1920x1080
• WDR Technology: Yes, WDR Pro
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via External microphone input & Audio output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weather-proof, IK10 vandal-proof
• Dimensions: Ø 88 x 293 mm
• Weight: 1182 g (2.6 lb)
• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: 90%
• Power/Consumption: DC 12V or IEEE 802.3af/at PoE Class 0 / Max. 12.7W
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, VAST recording software)

Vivotek FD9381-HTV Overview

VIVOTEK's FD9381-HTV is a brand-new professional H.265 high-efficiency outdoor dome network camera, offering 30 fps @ 5-Megapixel or 60 fps @ 1080p with outstanding image quality. By employing H.265 technology, the camera is able to provide higher and more efficient image compression rates than previous H.264 systems. In addition, VIVOTEK's sophisticated Smart Stream II technology enables the camera to optimize quality for desired regions and therefore to maximize efficiency of bandwidth usage. Combining both H.265 and Smart Stream II, the FD9381-HTV can reduce bandwidth and storage consumption by up to 80%* while retaining exceptional 5-Megapixel image quality. As a professional day/night camera, the FD9381-HTV is also equipped with WDR Pro and SNV, empowering users to enjoy superb image-detail in all lighting conditions. Additionally, robust IP66-rated housing ensures the ability of the advanced camera to withstand rain and dust, thus guaranteeing smooth operation no matter how harsh the weather conditions. The camera’s IK10-rated housing will also provide protection against acts of vandalism and other physical impacts.
