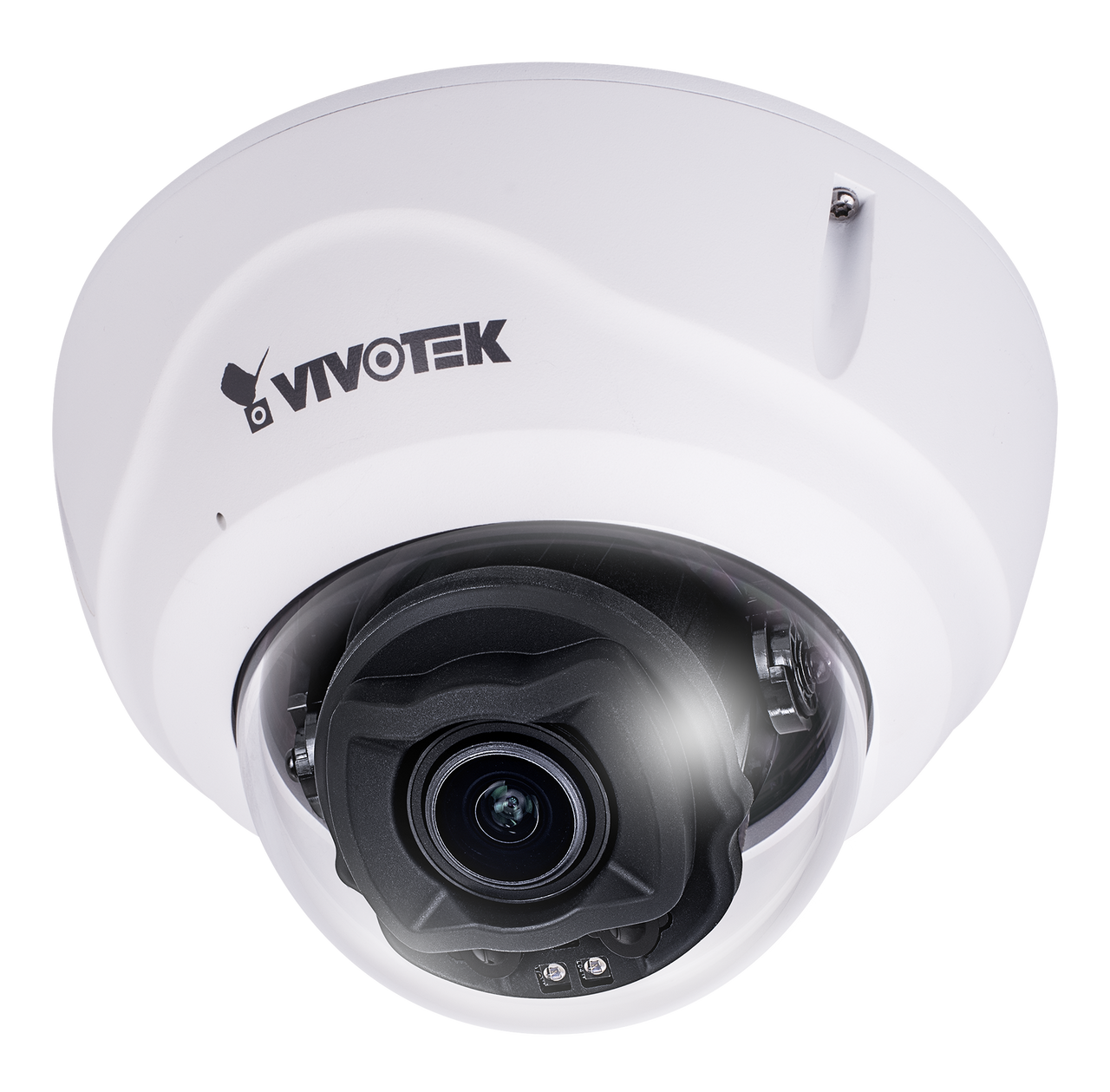

Vivotek FD9387-FR-V2 5MP, Facial Recognition, H.265, Up to 10,000 Facial Profiles, WDR Pro, SNV, 50M IR, Smart
Vivotek FD9387-FR-V2 5MP, Facial Recognition, H.265, Up to 10,000 Facial Profiles, WDR Pro, SNV, 50M IR, Smart IR II

Vivotek

Vivotek FD9387-FR-V2 5MP, Facial Recognition, H.265, Up to 10,000 Facial Profiles, WDR Pro, SNV, 50M IR, Smart IR II

$1,425.00
SKU: FD9387-FR-V2
Quantity:
Link to Manufacturer's Page

Contact
  • Facial recognition accuracy up to 99%
  • Camera stores up to 10,000 profiles
  • Automatic stranger detection to reduce friction for management
  • Privacy mode to safeguard user privacy and ensures information is not shared without consent
  • Event integration with VIVOTEK VAST Security Station, Milestone, Genetec, and March Networks
  • Cyber Protection via Trend Micro IoT Security
  • WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
  • 30 fps @ 2560x1920
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing

10,000 Faces on the edge

With 99% facial recognition accuracy, the FD9387-FR-v2 is a powerful tool for accurate facial detection and person of interest control across multiple locations. The camera itself can hold up to 10,000 facial profiles.


Serverless facial recognition infrastructure up to 5 cameras

FD9387-FR-v2 can operate fully without middleware or FTP server, this reduces the operational overhead and allows you to focus on your core business functions.

With a single FD9387-FR-v2, you can store up to 10,000 facial profiles in a serverless architecture. You only need to manage and maintain the database in one camera, and it will automatically synchronize with other facial recognition cameras.


Privacy mode

For enterprise or privacy sensitive region, this protects personal privacy and refrain from sending snapshots of person of interest (POI). Instead, user can choose to hide POI information on the web or disable picture sharing with third-party systems. This helps to safeguard user privacy and ensures that sensitive information is not shared without their consent.

System Information
Model
FD9387-FR-v2
CPU
Multimedia SoC (System-on-Chip)
Flash
eMMC 1GB
RAM
DDR4 2GB
Camera Features
Image Sensor
1/2.8" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 2.7 ~ 13.5 mm
Aperture
F1.4 ~ F2.8
Iris Type
P-iris
Field of View
95° ~ 30° (Horizontal)
70° ~ 23° (Vertical)
128° ~ 38° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
Minimum Illumination
0.075 lux @ F1.4 (Color)
<0.01 lux @ F1.4 (B/W)
0 lux with IR illumination on
Pan Range
±175°
Tilt Range
80°
Rotation Range
±175°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDKC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 2560x1920 (WDR Pro on)
Maximum Streams
3 video streams (Up to 9 configurable profiles)
S/N Ratio
61 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream II
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure, Smart IR II; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings
Audio
Audio Capability
Two-way audio (full duplex)
Audio Compression
G.711, G.726
Audio Interface
External microphone input
External line output
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100 Mbps PoE network connection
Audio line input
Audio line output
DC 12V power input/AC 24V power input
Digital input*2
Digital output*1
LED Indicator
System power and status indicator
Power Input
AC 24V/DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy)
Power Consumption
DC12V: Max 23/18W (IR ON/OFF) Max Current:1.92A
PoE Max: 22.5W/18W (IR ON/OFF) 42.5–57.0V Max Current: 0.53A~0.4A
AC24V Max: 21W/16W (IR ON/OFF) Max Current: 1.4A
Dimensions
Ø 155 x 103.2 mm
Weight
909 g
Certifications
EMC: CE (EN 55032 Class A, EN 55035), FCC (FCC Part 15 Subpart B Class A), UKCA (BS EN 55032:2015+A11: 2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020+A11:2020), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7; Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66/67 (IEC 60529), IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature
Starting Temperature:
-30°C ~ 60°C (14°F ~ 140°F)
Working Temperature:
-30°C ~ 60°C (-22°F ~ 140°F) (IR off)
-30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity
98% RH (non-condensing)
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack

Technical Specifications - Application

Facial Recognition
Performance
Up to 99% accuracy; supports recognition with mask; gender and age estimation; privacy mode.
Numbers of face captures
30 faces per second
Profile database
Up to 10,000 profiles
Automatic create profile for stranger
Yes
Integration
ONVIF profile S event push; HTTP/HTTPS Push in JSON format.
