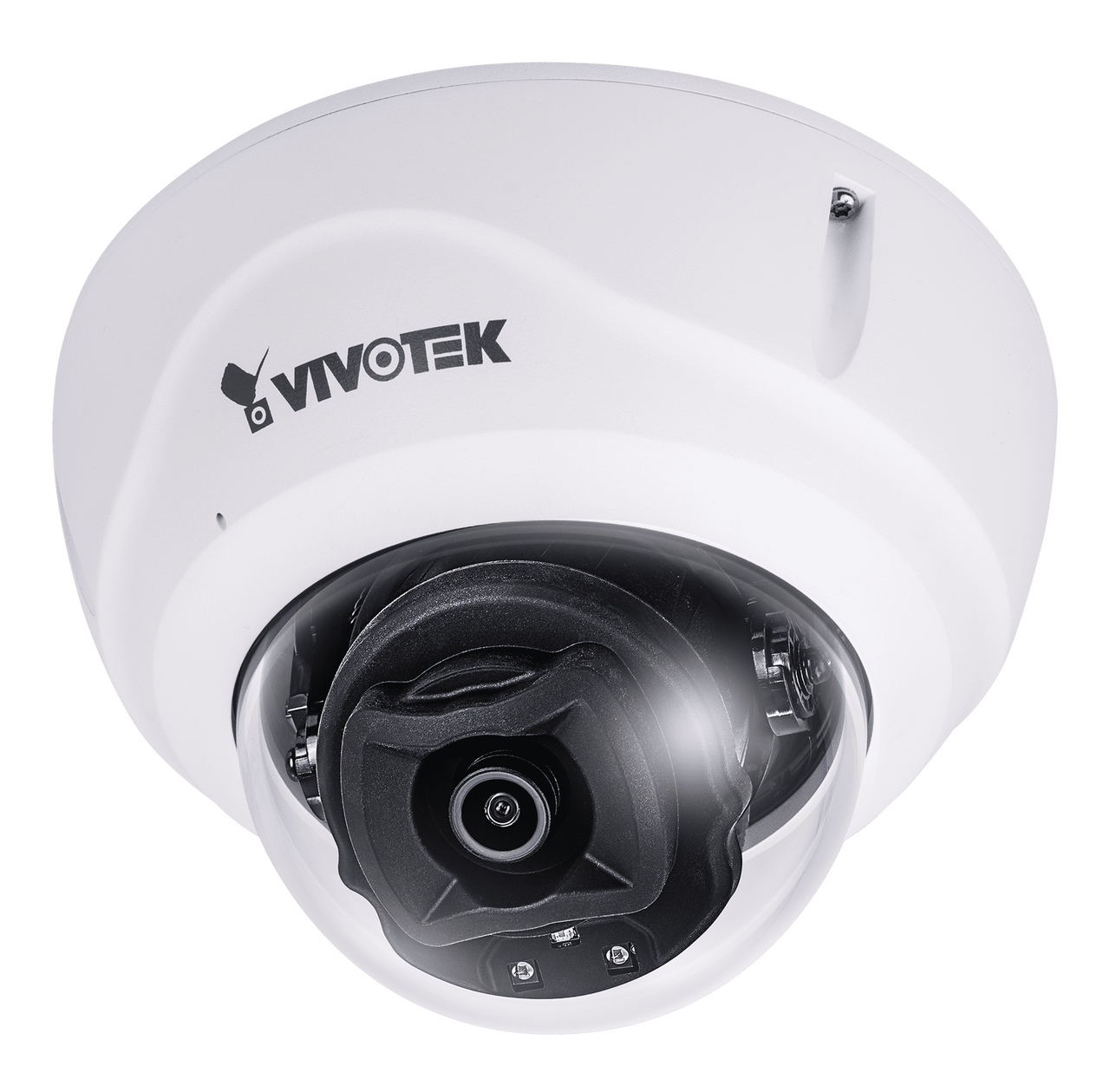

Vivotek FD9387-HTV-A 5MP H.265 Remote Focus Dome Network Camera
Discontinued - Recommended Replacement: FD9387-EHTV-V3(2.7-13.5 mm) or FD9389-EHV-v2
Features
Camera Features
- Image Sensor 1/2.7" Progressive CMOS
- Max. Resolution 2560x1920 (5MP)
- Lens Type Motorized, Vari-focal, Remote Focus
- Focal Length f = 2.7 ~ 13.5 mm
- Aperture F1.4 ~ F2.8
- Auto-iris P-iris
- Field of View 30 ~ 100° (Horizontal), 23 ~ 72°(Vertical), 38 ~ 135° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
- Minimum Illumination 0.075 Lux @ F1.4 (Color), <0.01 lux @ F1.4 (B/W), 0 Lux with IR illumination on
- Pan Range 350°
- Tilt Range 80°
- Rotation Range ±175°
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
Video
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 2560x1920 (WDR Pro on), 30 fps @ 2560x1440 (WDR Pro on), 60 fps @ 1920x1080 (WDR Pro off)
- Maximum Streams 3 simultaneous streams
- S/N Ratio 57 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings Time stamp, text overlay, flip and mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, HLC, defog, 3DNR, video rotation
Audio
- Audio Capability Two-way Audio (full duplex)
- Audio Compression G.711, G.726
- Audio Interface Built-in microphone, External microphone input, External line output
- Effective Range 5 meters
Network
- Users Live viewing for up to 10 clients
- Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported
Solution Integration
- Smart Motion Detection Five-window video motion detection, people detection, time filter
- Smart VCA Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection
- VADP Package Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security
Alarm and Event
- Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, shock detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection, Audio line input, Audio line output, AC 24V power input (Optional), DC 12V power input, Digital input *2, Digital output *2, TV out
- LED Indicator System power and status indicator
- Power Input AC 24V (Ootional), DC 12V, IEEE 802.3af PoE Class 0 (Power Redundancy)
- Power Consumption PoE: Max. 12 W, DC 12V: Max. 9 W, AC 24V: Max. 10.5 W
- Dimensions Ø 155 x 103.2 mm
- Weight 909 g
- Casing IP66, IP67, IK10
- Safety Certifications CE, FCC Class A, UL, LVD, VCCI, C-Tick, BIS
- Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F), Working Temperature(IR on): -30°C ~ 50°C (-22°F ~ 122°F), Working Temperature (IR off): -30°C ~ 60°C (-22°F ~ 140°F)
- Humidity 98%
- Warranty 36 Months
Included Accessories
- Quick installation guide, warranty card, alignment sticker, screw pack, conduit ring, desiccant bag, waterproof accessory bag
Overview
VIVOTEK FD9387-A is a series of outdoor dome network camera offering up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb image quality at all resolutions or frame rates. Featuring VIVOTEK SNV and WDR Pro technology, FD9387-A Series is capable of capturing high quality image whether in high contrast or low light environment.
The FD9387-A series offers remote focus lens for different user scenario. IR illuminators are equipped with 50 meter effective range for better night visibility. For harsh outdoor environment, FD9387-A series is encased in IP66, IP67 and IK10 housing, making it impervious to rain and dust.
Employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9387-A Series reduces bandwidth up to 90%* while keeping great image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized application for various application and user scenarios.
The FD9387-A series also now includes a new wave of advanced Video Content Analysis (VCA) - Smart VCA, including intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection. These features are the next steps in elevating surveillance cameras from image capturing devices to advanced notification instruments, allowing users to see more in smarter ways.
