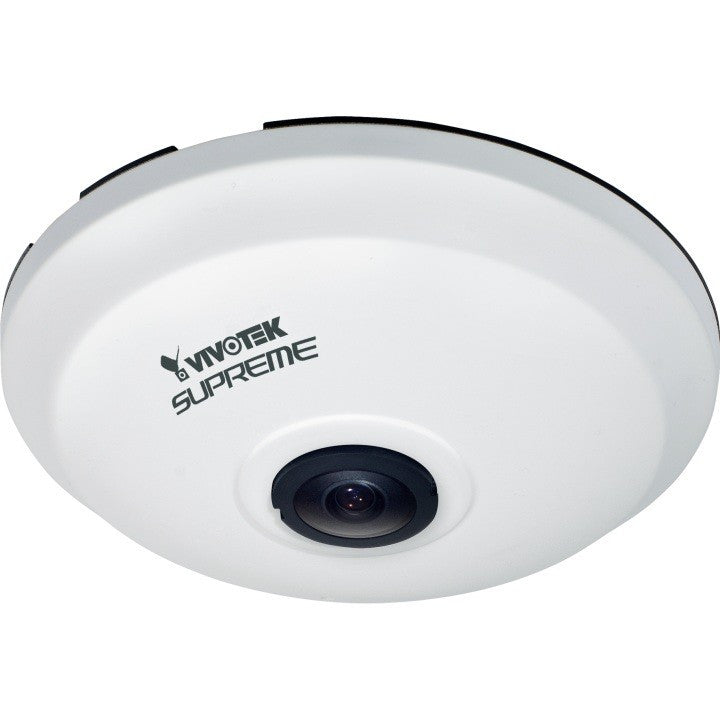

Vivotek FE8172 5MP 360° Surround View Fisheye Fixed Dome Network Camera


Vivotek FE8172 5MP 360° Surround View Fisheye Fixed Dome Network Camera

Sale price$0.00
SKU: FE8172

Discontinued. Replaced by the Vivotek FE8174

Vivotek FE8172 Features

  • Max Resolution: 2560 x 1920
  • Image Sensor: 1/2.5" Progressive CMOS sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.03 Lux @ F2.8, 50 IRE (color), 0.001 Lux @ F2.8, 50 IRE (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length: f = 1.05, F2.8
  • Zoom: ePTZ; 12x digital zoom
  • Field of View: 180° Horizontal, Vertical, and Diagonal
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 15 fps at 1920x1920, 30 fps at 1920x1080 in all compression styles
  • Image Settings: WDR enhanced, Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Audio input / Audio output (full duplex), External microphone input, external line input
  • Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, event notification using digital output, HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 145 mm x 52 mm
  • Weight: 358 g
  • Operating Temperature: -40 ~ 50°C (-40 ~ 122°F)
  • Operating Humidity: 90% RH
  • Power: 802.3af Power-over-Ethernet (Class 2), 12V DC, Max. 5.1 W (DC 12V), Max. 5.3 W (PoE)
  • Warranty: 3 Years
  • What's Included: FE8172, power & I/O cables, screws/anchors/cable tie, alignment stickerm quick installation guide, software CD, warranty card
Vivotek FE8172 Overview

VIVOTEK FE8172 is the fisheye fixed dome network camera from VIVOTEK, featuring detailed 5MP-resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, this camera is able to provide an 12X wider field of view than a standard VGA camera. It is extremely suitable for monitoring open areas such as airports, shopping malls, parking lots, retail stores, offices and more. The FE8172 offers various display layouts, including original surround view, panoramic view, and regional view for various mounting applications. With the latest cutting-edge image processing capability, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in both of the panoramic as well as regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI). As with all VIVOTEK true day/night cameras, the FE8172 features a removable IR-cut filter, maintaining clear images 24 hours a day. Together with 802.3af compliantPoE, microSD/SDHC/SDXC card slot for on-board storage and iPad applications, the FE8172 is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible.
