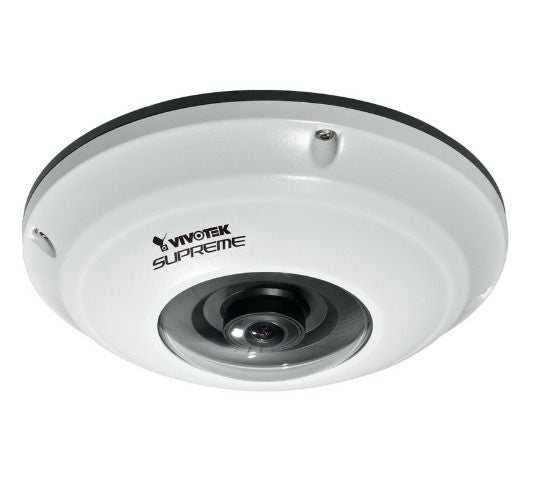

Vivotek FE8172V 5MP 360° Surround View Vandal-proof Fisheye Fixed Dome Network Camera

Vivotek

Vivotek FE8172V 5MP 360° Surround View Vandal-proof Fisheye Fixed Dome Network Camera

Sale price$675.00
Discontinued
SKU: FE8172V

DISCONTINUED; REPLACED BY THE FE8174V

Vivotek FE8172V Overview

  • Max Resolution: 2560 x 1920
  • Image Sensor: 1/2.5" Progressive CMOS sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.03 Lux @ F2.8, 50 IRE (color), 0.001 Lux @ F2.8, 50 IRE (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length: f = 1.05, F2.8
  • Zoom: ePTZ: 12x digital zoom (12x on IE plug-in)
  • Field of View: 180° Horizontal, Vertical, and Diagonal
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 15 fps at 1920x1920 and 30 fps at 1920x1080 in all compression styles
  • Image Settings: WDR Enhanced, Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Audio input / Audio output (full duplex), External microphone input, external line input
  • Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, event notification using digital output, HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Vandal-proof IK10-rated metal housing, Weather-proof IP66-rated housing
  • Dimensions: 145 mm x 52 mm
  • Weight: 545 g
  • Operating Temperature: -40 ~ 50°C (-40 ~ 122°F)
  • Operating Humidity: 90% RH
  • Power: 802.3af Power-over-Ethernet (Class 2), 12V DC, Max. 5.1 W (DC 12V), Max. 5.3 W (PoE)
  • Warranty: 3 Years
Vivotek FE8172V Overview

VIVOTEK FE8172V is the fisheye fixed dome network camera from VIVOTEK, featuring detailed 5MP-resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, this camera is able to provide an 12X wider field of view than a standard VGA camera. It is extremely suitable for monitoring open areas such as airports, shopping malls, parking lots, retail stores, offices and more. The FE8172V offers various display layouts, including original surround view, panoramic view, and regional view for various mounting applications. With the latest cutting-edge image processing capability, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in both of the panoramic as well as regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI). As with all VIVOTEK true day/night cameras, the FE8172V features a removable IR-cut filter, maintaining clear images 24 hours a day. Its IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Additionally, the vandal-proof IK10-rated housing effectively provides robust protection from vandalism. Together with 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage,EN50155 mobile surveillance and iPad applications, the FE8172V is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible.
