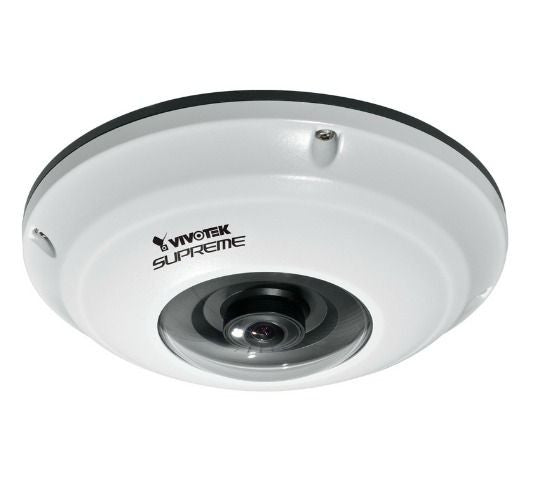

Vivotek FE8174V 5MP 360° Surround View Fisheye Fixed Vandal Proof Dome Network Camera

Vivotek

Vivotek FE8174V 5MP 360° Surround View Fisheye Fixed Vandal Proof Dome Network Camera

Sale price$675.00
Discontinued
SKU: FE8174V

Contact

Replaced by the FE9381-EHV

Vivotek FE8174V Features

  • Max Resolution: 1920x1920
  • Image Sensor: 1/2.5" Progressive CMOS sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.03 Lux @ F2.8, 50 IRE (color), 0.001 Lux @ F2.8, 50 IRE (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed-focal
  • Focal Length: f = 1.5 mm / F2.8
  • Zoom: ePTZ; 12x digital zoom (12x on IE plug-in)
  • Iris: N/A
  • Focus: Auto
  • Field of View: 180° Horizontal, Vertical, and Diagonal
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 15 fps at 1920x1920, 30 fps at 1920x1080 in all compression styles
  • WDR Technology: WDR Enhanced
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp, Text overlay, Flip & Mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, gain, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings, Local Dewarping
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, 5 m range
  • Audio Capabilities: Audio input / Audio output (full duplex), External microphone input
  • Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing, Vandal-proof IK10-rated metal housing, & EN50155 Compliant
  • Dimensions: Ø: 145 mm x 47 mm
  • Weight: Net: 545 g
  • Operating Temperature: -40 ~ 50°C (-40 ~ 122°F)
  • Operating Humidity: 90% RH
  • Power: 802.3af Power-over-Ethernet (Class 2), 12V DC, Max. 5.1 W (DC 12V), Max. 5.3 W (PoE)
  • Warranty: 3 Years
  • What's Included: FE8174V, User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software, Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, mounting bracket, software CD. Power & I/O cables sold separately.
Vivotek FE8174V Overview

VIVOTEK FE8174/74V is the latest fisheye fixed dome network camera from VIVOTEK, featuring a detailed 5-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more. The FE8174/74V offers various display layouts, including original surround view, panoramic view, and regional view for various mounting applications. With the latest cutting-edge image processing capabilities, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in both the panoramic as well as regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI). The new cutting-edge pixel counter function helps the user to ensure the image quality of a desired area. As with all VIVOTEK true day/night cameras, the FE8174/74V features a removable IR-cut filter, maintaining clear images 24 hours a day. FE8174V’s IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions; additionally, the vandal-proof IK10-rated housing effectively provides robust protection from physical damage. Together with 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot for on-board storage, EN50155 mobile surveillance and iPad applications, the FE8174/4V is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible. The FE8174/74V provide electronic pan/tilt/zoom functions, allowing users to move to a target region in the viewing window without a mechanical movement. In a “panoramic view” and a “regional view”, users can utilize the ultra-smooth ePTZ function to easily focus on a region of interest (ROI) using the mouse wheel. Compared to the conventional mechanical PTZ, the ePTZ feature offers zero-wait operation through client-side control. In addition, with a high-end dewarping algorithm (plug-in), the ePTZ on the FE8174/74V respond swiftly and seamlessly to user’s control.
