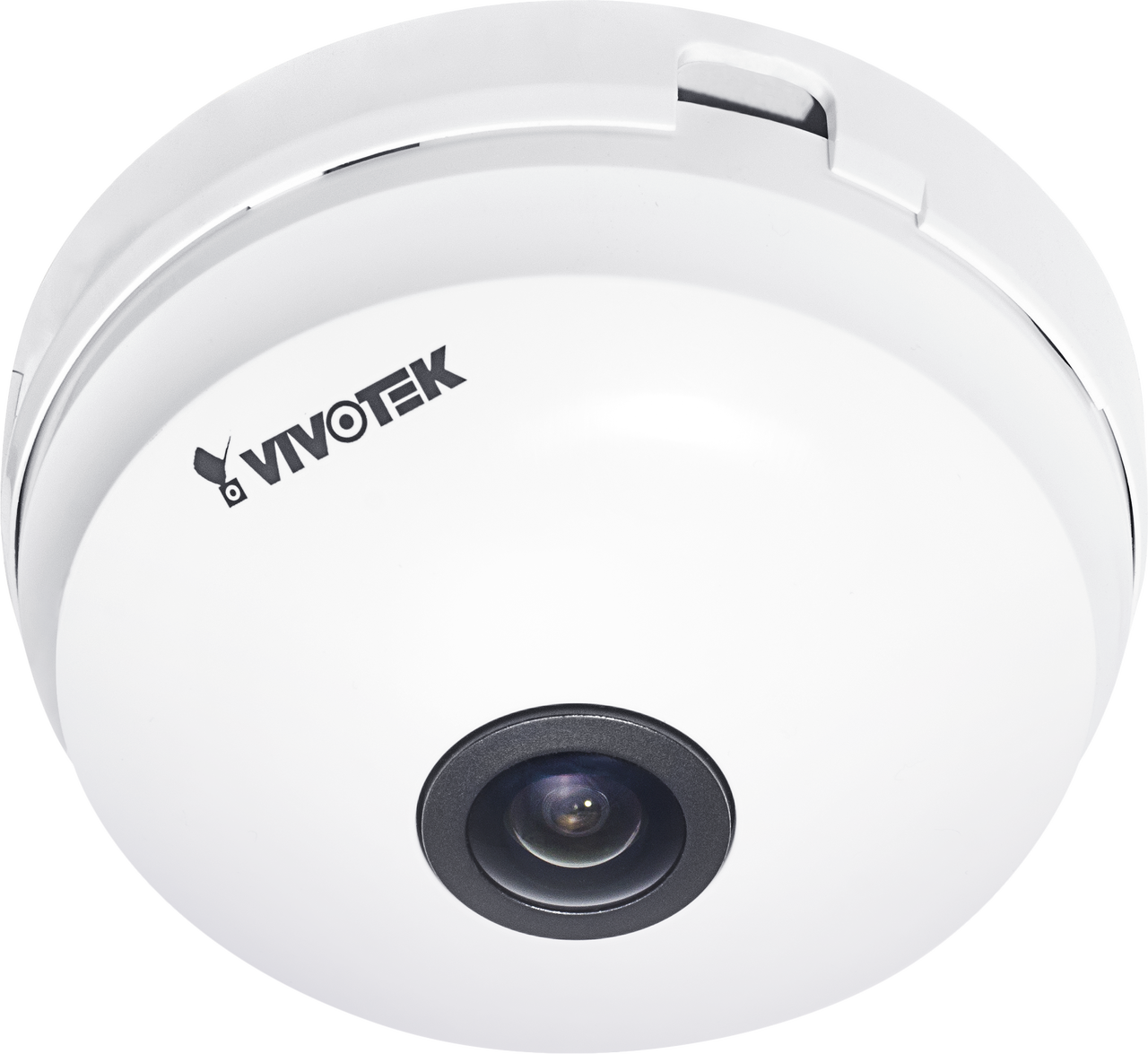

Vivotek FE8180 5MP 360° Compact Indoor Fisheye Dome Network Camera

Vivotek

Vivotek FE8180 5MP 360° Compact Indoor Fisheye Dome Network Camera

Sale price$487.50
Discontinued
SKU: FE8180

Contact

Replaced by the FE9180-H

Vivotek FE8180 Features

  • Max Resolution: 1920x1920
  • Image Sensor: 1/2.5" Progressive CMOS sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.6 Lux @ F2.8 (Color); 0.01 Lux @ F2.8 (B/W); 0 Lux @ IR LED ON
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length: f = 1.57 mm, F2.2
  • Zoom: ePTZ; 12x digital zoom (12x on IE plug-in)
  • Iris: N/A
  • Focus: Auto
  • Field of View: 180° Horizontal, Vertical, and Diagonal
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 15 fps at 1920x1920, 30 fps at 1920x1080 in all compression styles
    WDR Technology: Yes, WDR Enhanced
  • Image Settings: Adjustable resolution, quality, and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D noise reduction, Pixel calculator
  • Privacy Mask: Yes
  • Built-in Microphone: N/A
  • Audio Capabilities: N/A
  • Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø: 90 mm x 37 mm
  • Weight: 135 g
  • Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
  • Operating Humidity: N/A
  • Power/Consumption: IEEE 802.3af PoE Class 1 / Max. 3.6 W
  • Warranty: 2 Years
  • What's Included: Camera, Quick installation guide, warranty card, alignment sticker, screws pack, mounting bracket, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software). Power & IO cables sold separately.
Vivotek FE8180 Overview

The VIVOTEK FE8180 is the world's smallest fisheye camera, featuring a detailed 5-Megapixel resolution sensor with superb image quality. A small camera with large functionality, the VIVOTEK FE8180, with a diameter of only 90 mm, is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view without blind spots (ceiling mount), the camera is able to provide full video coverage of wide, open areas, such as airport lobby, shopping malls, retail stores, offices and more. The FE8180 offers various display layouts, including original surround view, panoramic view, and regional view to suit a variety of applications. In addition, in both the panoramic and regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI). The new cutting-edge pixel calculation function helps the user to ensure the image quality of a desired area.
