Vivotek FE8181

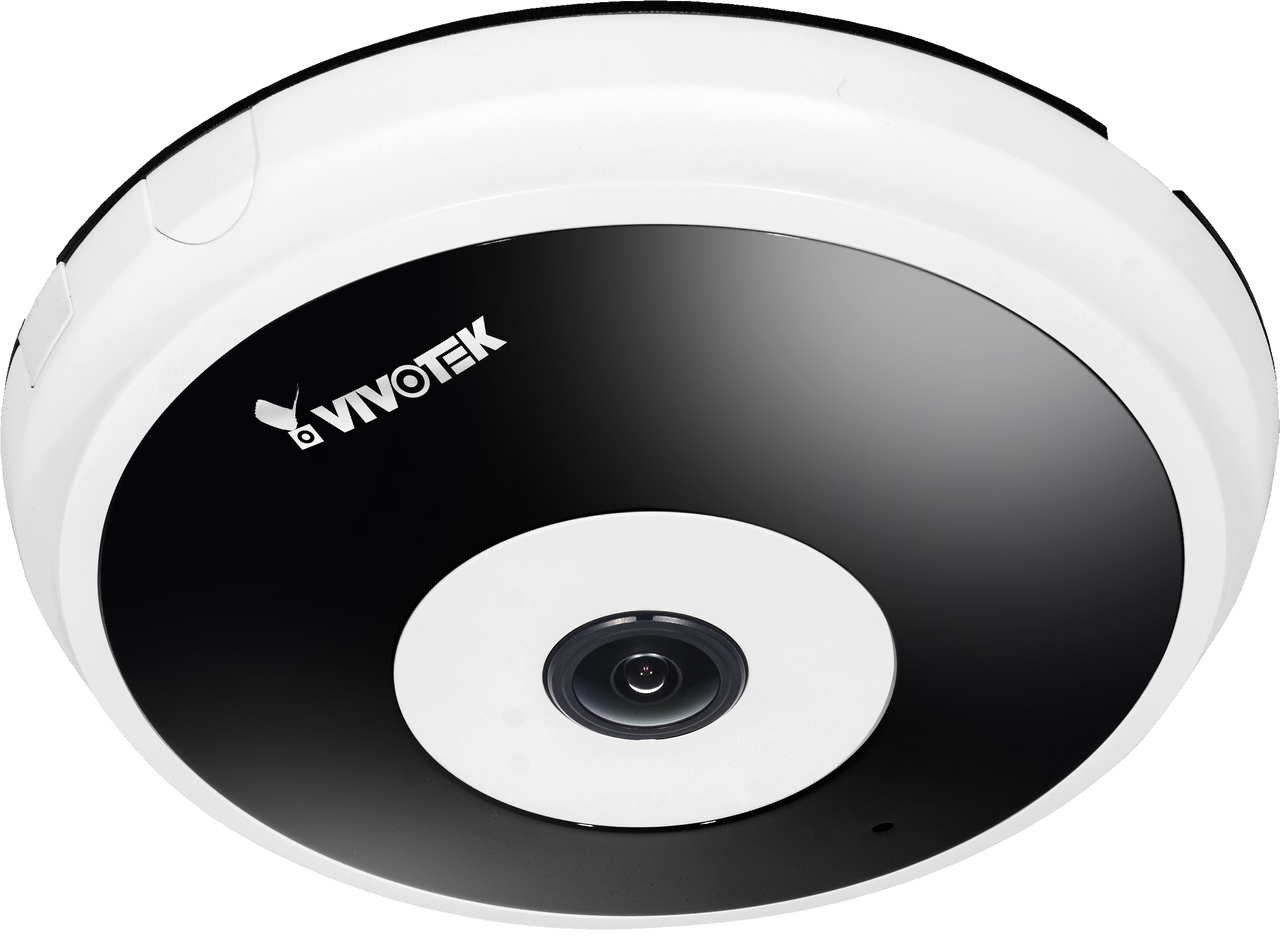

Vivotek FE8181 5MP 360° Surround View IR Fisheye Fixed Dome Network Camera

Vivotek

Vivotek FE8181 5MP 360° Surround View IR Fisheye Fixed Dome Network Camera

$675.00
Discontinued
SKU: FE8181

Discontinued - Recommended Replacement: FE9182-H

Link to Manufacturer's Page

Contact

Discontinued; replaced by the FE9182-H.

Vivotek FE8181 Features

  • Max Resolution: 1920x1920
  • Image Sensor: 1/2.5" Progressive CMOS sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.6 Lux @ F2.8 (Color); 0.01 Lux @ F2.8 (B/W); 0 Lux @ IR LED ON
  • IR Illuminators: Yes, 6 built-in
  • IR Illuminator Range: Up to 10m
  • Lens Type: Fixed
  • Focal Length: f = 1.5 mm, F2.8
  • Zoom: ePTZ; 12x digital zoom (12x on IE plug-in)
  • Iris: N/A
  • Focus: Auto
  • Field of View: 180° Horizontal, Vertical, and Diagonal
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 15 fps at 1920x1920, 30 fps at 1920x1080 in all compression styles
    WDR Technology: Yes, WDR Enhanced
  • Image Settings: Adjustable resolution, quality, and bit rate, Configurable video cropping for bandwidth saving, Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, pixel calculator, 3D-Noise reduction
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, up to 5m
  • Audio Capabilities: Audio input / Audio output (full duplex), External microphone input
  • Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø:160 x 39 mm
  • Weight: 589 g
  • Operating Temperature: -40 ~ 50°C (-40 ~ 122°F)
  • Operating Humidity: 90% RH
  • Power/Consumption: 802.3at Power-over-Ethernet (Class 4), 12V DC / Max. 22 W (DC 12V), 23 W (PoE)
  • Warranty: 3 Years
  • What's Included: Camera, Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, mounting bracket, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel, VAST CMS (90-day free trial version), Calibration Tool). Power & I/O Cables are Sold Separately in US & Canada

Vivotek FE8181 Overview

VIVOTEK FE8181 is the latest fisheye fixed dome network camera from VIVOTEK, featuring a detailed 5-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more. The FE8181, a true day/night camera, features a removable IR-cut filter, maintaining clear images 24 hours a day, with built-in IR LEDs enabling the camera to provide uniformly 360° surround illumination for clear viewing up to 10 meters, even in completely dark environments.
