Vivotek FE8181V
Vivotek FE8181V Internal View
Vivotek FE8181V mounting options
Network Camera Store is an Authorized Vivotek Reseller
Panoramic view
H.264 compression
microSD/SDHC card slot
Removable IR-cut filter
Tamper detection
WDR enhancement

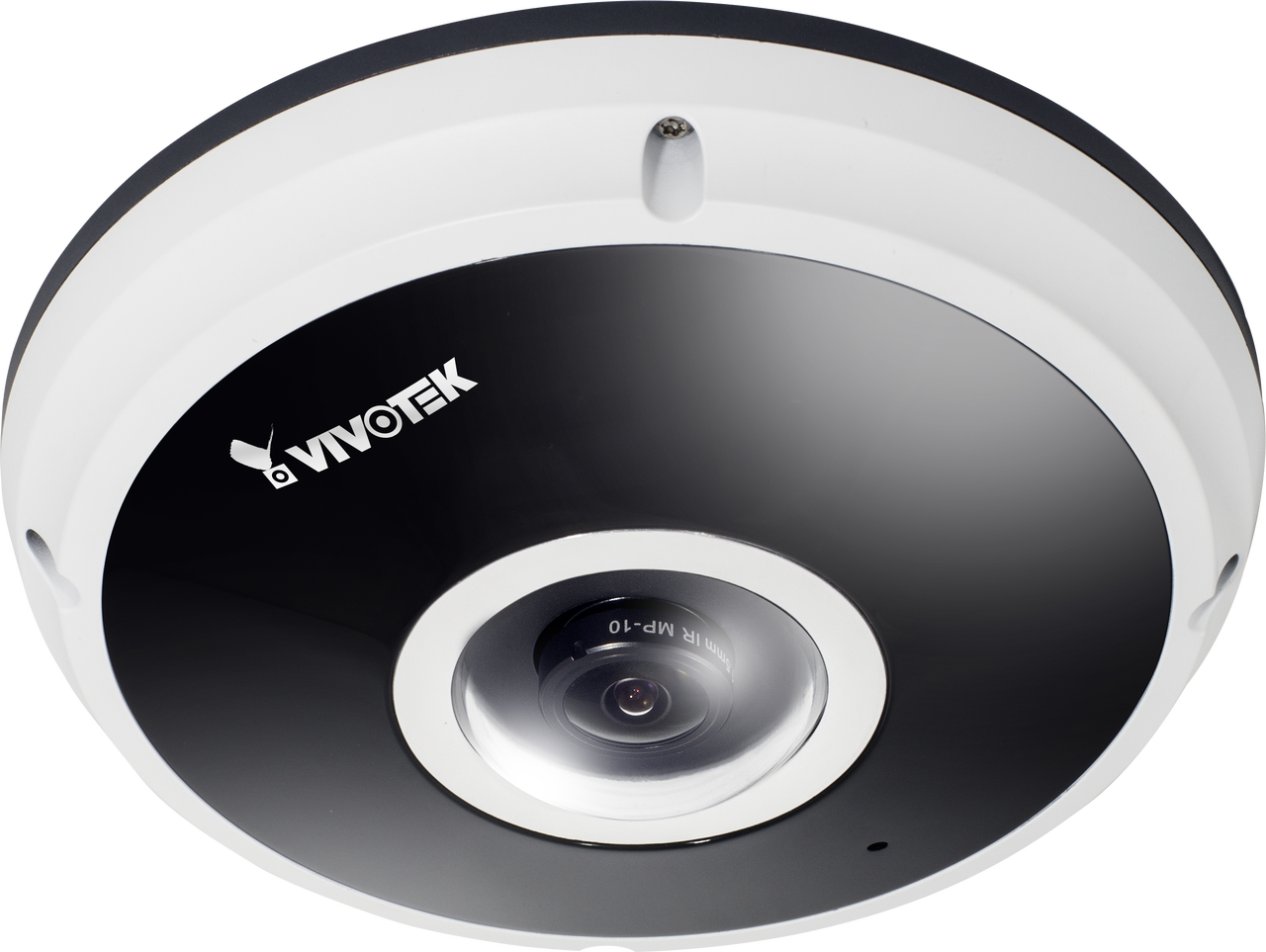

Vivotek FE8181V 5MP 360° Surround View IR Fisheye Fixed Dome Network Camera


Vivotek FE8181V 5MP 360° Surround View IR Fisheye Fixed Dome Network Camera

Sale price$862.50
SKU: FE8181V


Discontinued; replaced by the FE9382-EHV.

Vivotek FE8181V Features

  • Max Resolution: 1920x1920
  • Image Sensor: 1/2.5" Progressive CMOS sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.6 Lux @ F2.8 (Color); 0.01 Lux @ F2.8 (B/W); 0 Lux @ IR LED ON
  • IR Illuminators: Yes, 6 built-in
  • IR Illuminator Range: Up to 10m
  • Lens Type: Fixed
  • Focal Length: f = 1.5 mm, F2.8
  • Zoom: ePTZ; 12x digital zoom (12x on IE plug-in)
  • Iris: N/A
  • Focus: Auto
  • Field of View: 180° Horizontal, Vertical, and Diagonal
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 15 fps at 1920x1920, 30 fps at 1920x1080 in all compression styles
  • WDR Technology: Yes, WDR Enhanced
  • Image Settings: Adjustable resolution, quality, and bit rate, Configurable video cropping for bandwidth saving, Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, pixel calculator, 3D-Noise reduction
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, up to 5m
  • Audio Capabilities: Audio input / Audio output (full duplex), External microphone input
  • Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Vandal-proof IK10-rated metal housing, Weather-proof IP66-rated housing
  • Dimensions: Ø:160 x 51 mm
  • Weight: 794 g
  • Operating Temperature: -40 ~ 50°C (-40 ~ 122°F)
  • Operating Humidity: 90% RH
  • Power/Consumption: 802.3at Power-over-Ethernet (Class 4), 12V DC / Max. 22 W (DC 12V), 23 W (PoE)
  • Warranty: 3 Years
  • What's Included: Camera, Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, mounting bracket, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel, VAST CMS (90-day free trial version), Calibration Tool). Power & I/O Cables are Sold Separately in US & Canada
Vivotek FE8181V Overview

VIVOTEK FE8181V is the latest fisheye fixed dome network camera from VIVOTEK, featuring a detailed 5-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more. The FE8181V, true day/night camera, features a removable IR-cut filter, maintaining clear images 24 hours a day, with built-in IR LEDs enabling the camera to provide uniformly 360° surround illumination for clear viewing up to 10 meters, even in completely dark environments.
