Vivotek

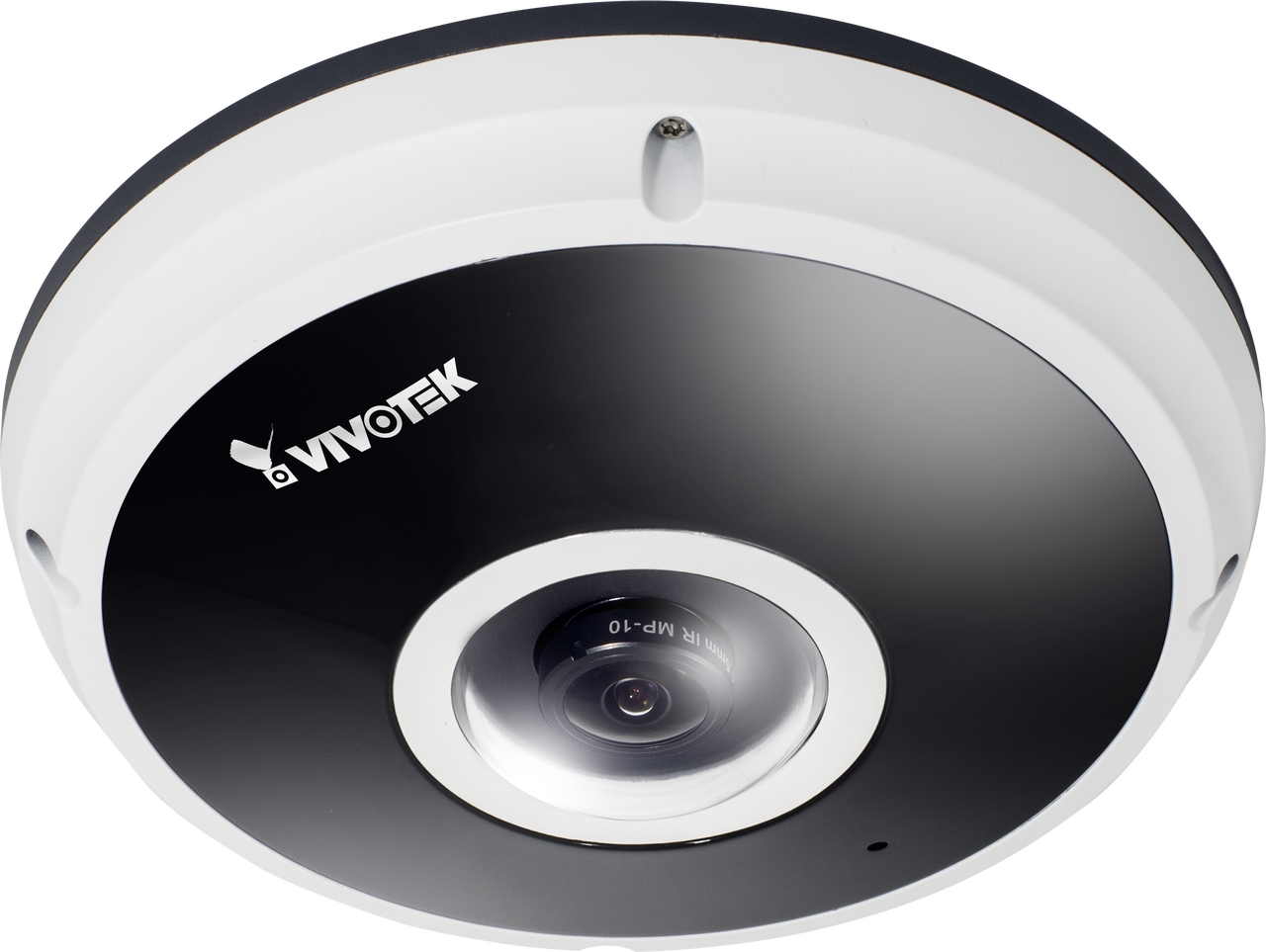

Vivotek FE8391-V 12MP 360° Surround View IR Fisheye Fixed Dome Network Camera
Discontinued - Recommended Replacement: FE9391-EV
Choose options
Discontinued - Recommended Replacement: FE9391-EV
Discontinued - Recommended Replacement: FE9391-EV
Replaced by the FE9391-EV
Vivotek FE8391-V Features
- Max Resolution: 2944x2944
- Image Sensor: 1/2.3" Progressive CMOS sensor
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
- Minimum Illumination: 0.8 Lux @ F2.8 (Color); 0.01 Lux @ F2.8 (B/W)
- IR Illuminators: Yes, 6 built-in
- IR Illuminator Range: Up to 10m
- Lens Type: Fixed fisheye
- Focal Length: f = 1.5 mm, F2.8
- Zoom: ePTZ; 12x digital zoom (12x on IE plug-in)
- Iris: N/A
- Focus: Auto
- Field of View: 180° Horizontal, Vertical, and Diagonal
- Compression Styles: H.264 & MJPEG
- Frame Rate: 12 fps @ 2944x2944
- WDR Technology: Yes, WDR Enhanced
- Image Settings: Adjustable resolution, quality, and bit rate, Configurable video cropping for bandwidth saving, Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, pixel calculator, 3D-Noise reduction, 2D-Noise reduction, white balance, exposure control, gain, backlight compensation, privacy masks
- Privacy Mask: Yes
- Built-in Microphone: Yes, up to 5m
- Audio Capabilities: Audio input / Audio output (full duplex), External microphone input & external line output
- Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server
- ONVIF: Yes
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Vandal-proof IK10-rated metal housing, Weather-proof IP66-rated housing
- Dimensions: Ø:160 x 51 mm
- Weight: 805 g
- Operating Temperature: -40 ~ 50°C (-40 ~ 122°F)
- Operating Humidity: N/A
- Power/Consumption: 12V DC / 21.7W, IEEE 802.3at PoE Class 4 / 23.4W
- Warranty: 3 Years
- What's Included: Camera, mounting plate/screwdriver, screws/dessicant bag/double-sided tape/rubber seal plug/rubber washer, alignment sticker, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel, VAST CMS (90-day free trial version), Calibration Tool), quick install guide. Power & I/O Cables are Sold Separately in US & Canada
VIVOTEK FE8391-V is the latest Ultra-Megapixel fisheye fixed dome network cameras from VIVOTEK, featuring a detailed 12-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/wall/floor mount) without blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more. The FE8391-V camera feature a removable IR-cut filter, maintaining clear images 24 hours a day. The built-in IR LEDs in FE8391-V enable the camera to provide uniformly 360° surround illumination for clear viewing up to 10 meters, even in completely dark environments.
