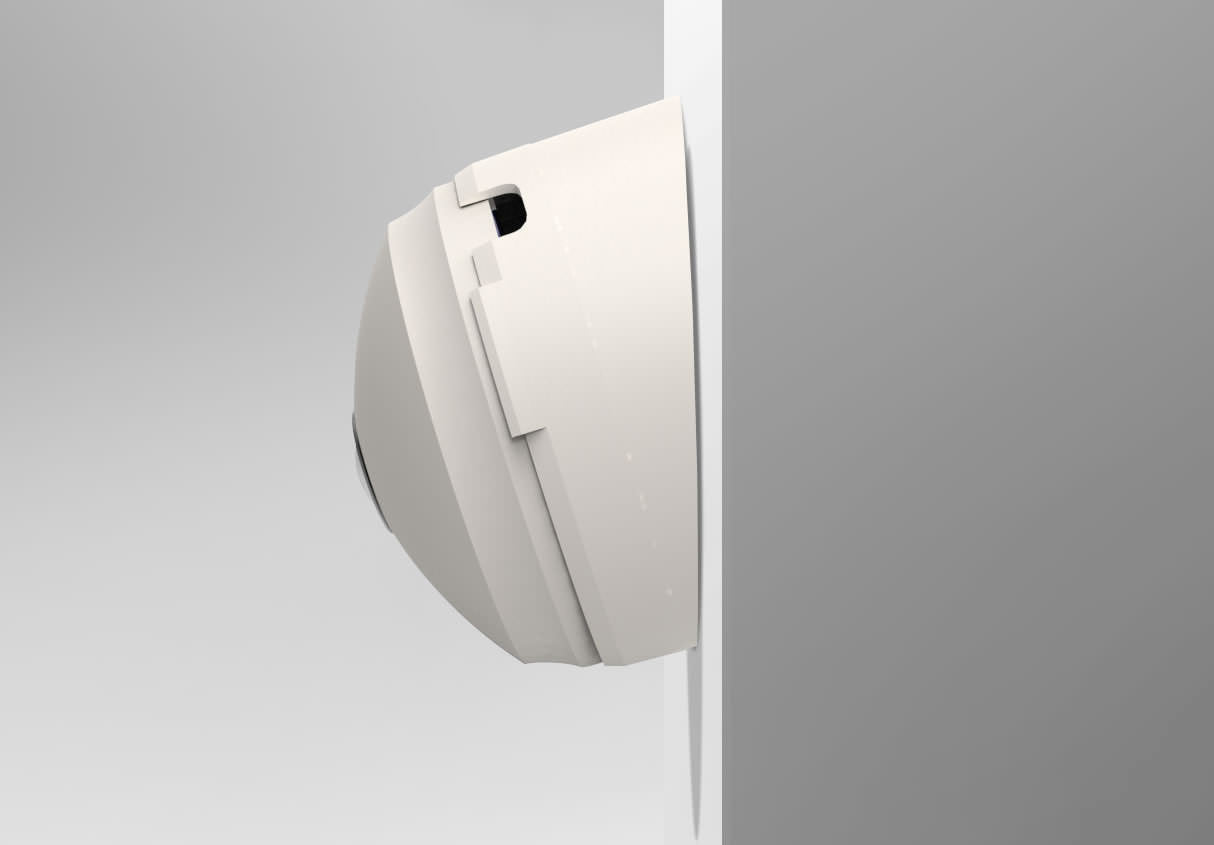

Vivotek AM-216 optional 15 degree tilt mount
Network Camera Store is an Authorized Vivotek Reseller
WDR Pro
Panoramic view
MicroSD/SDHC card slot

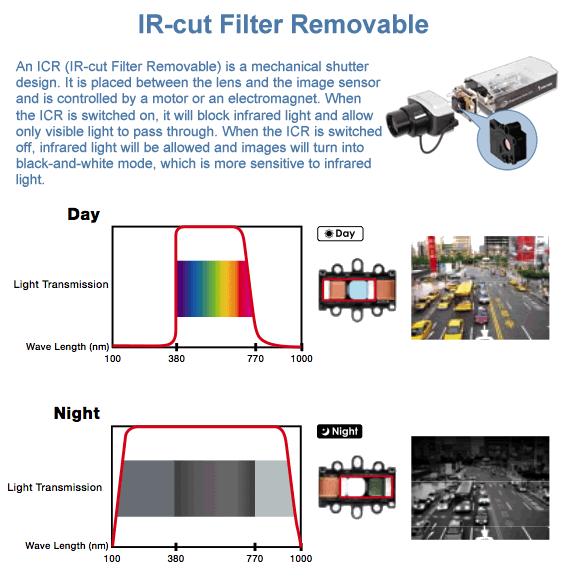

Removable IR-cut filter

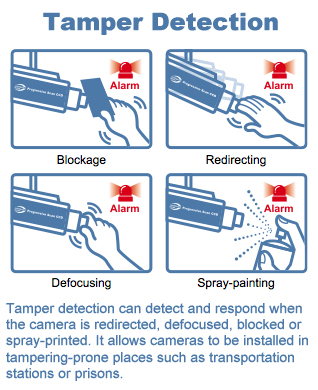

Tamper detection

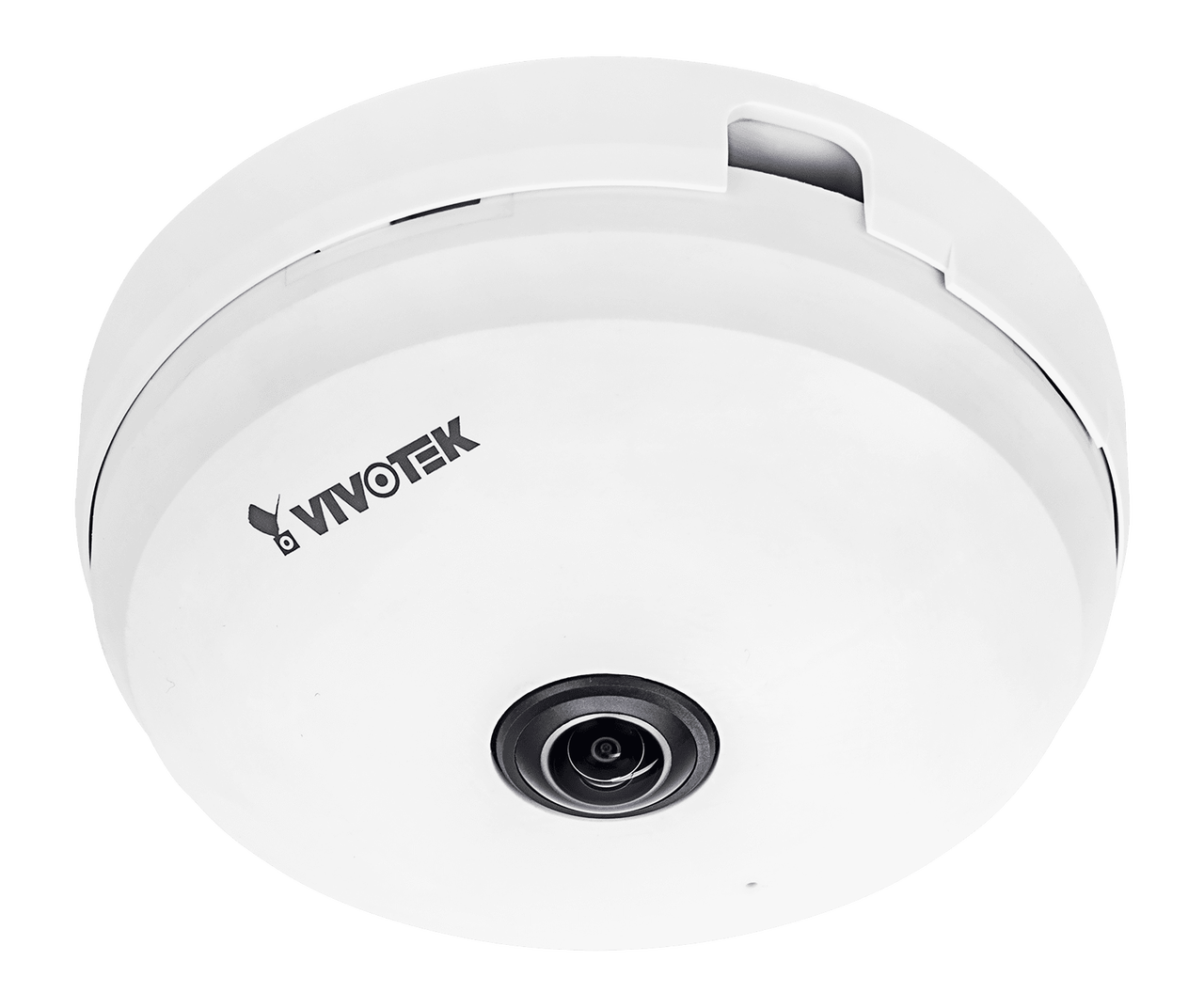

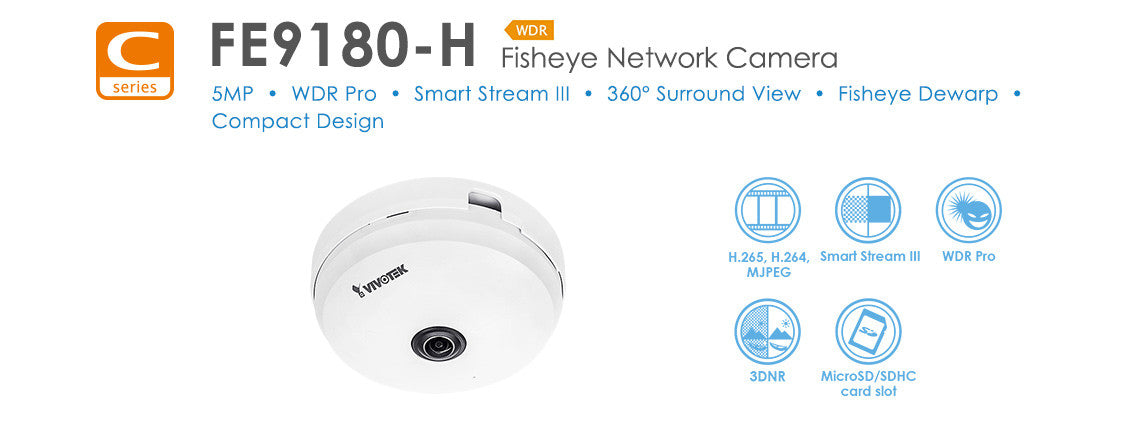

Vivotek FE9180-H 5MP 360° Compact Indoor Fisheye Dome Network Camera

Vivotek

Vivotek FE9180-H 5MP 360° Compact Indoor Fisheye Dome Network Camera

Sale price$315.00
SKU: FE9180-H
Quantity:

Contact

Features

Camera Features

  • Image Sensor 1/2.7" Progressive CMOS
  • Max. Resolution 1920x1920
  • Lens Type Fixed-focal
  • Focal Length f = 1.16 mm
  • Aperture F2.25
  • Field of View 180° (Horizontal), 180° (Vertical), 180° (Diagonal)
  • Shutter Time 1/5 sec. to 1/32,000 sec.

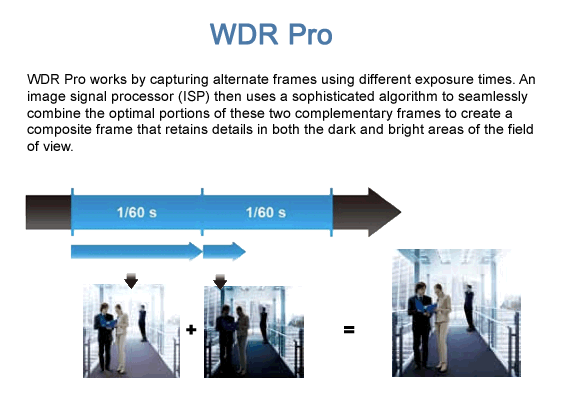

  • WDR Technology WDR Pro
  • Minimum Illumination 0.25 Lux @ F2.25 (Color), 50IRE, 0.13 Lux @ F2.25 (Color), 30IRE
  • Pan/Tilt/Zoom Functionalities ePTZ: 12x digital zoom (12x on IE plug-in)

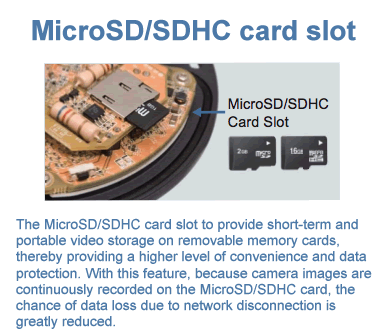

  • On-board Storage Slot type: MicroSD/SDHC/SDXC card slot
  • Seamless Recording

Video

  • Compression H.265, H.264, MJPEG
  • Maximum Frame Rate 15 fps @ 1920x1920
  • Maximum Streams 4 simultaneous streams
  • S/N Ratio 63.9 dB
  • Dynamic Range 87 dB
  • Video Streaming Adjustable resolution, quality and bitrate; Smart Stream III
  • Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog, pixel calculator

Audio

  • Audio Capability One-way Audio
  • Compression G.711, G.726
  • Interface Built-in microphone
  • Effective Range 5 meters

Network

  • Users Live viewing for up to 10 clients
  • Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
  • Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
  • ONVIF Supported, specification available at www.onvif.org

Intelligent Video

  • Video Motion Detection Five-window video motion detection

Alarm and Event

  • Alarm Triggers Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
  • Alarm Events Event notification using HTTP, SMTP, FTP, NAS server and MicroSD card
  • File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

  • Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection
  • LED Indicator System power and status indicator
  • Power Input IEEE 802.3af PoE Class 1
  • Power Consumption Max. 3.6 W
  • Dimensions 94 x 39 mm
  • Weight 140 g (with bracket) (.31 lb)
  • Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
  • Operating Temperature Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Humidity 90%
  • Warranty 24 months

Included Accessories

  • Quick installation guide, warranty card, alignment sticker, screw pack, mounting bracket. Power & IO cables sold separately.
Overview

VIVOTEK’s updated FE9180-H is a low profile fisheye network camera, featuring a detailed 5-Megapixel resolution sensor with superb image quality. At only 94 mm wide, the FE9180-H is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. Now equipped with WDR Pro, the FE9180-H is able to provide consistent crystal clear video quality even in high contrast lighting environments. Also with the addition of a built-in microphone, the FE9180-H is more versatile than ever.

Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view without blind spots (ceiling mount), the sleek and discreet FE9180-H is able to provide full video coverage for sensitive areas like retail, hotels, banking, and education. The FE9180-H offers various display layouts, including original surround view, panoramic view, and regional view. Additionally, in both the panoramic and regional viewing modes users can utilize the ultra-smooth ePTZ function to effortlessly zoom in and focus on a region of interest (ROI).
