VIVOTEK’s FE9181-H

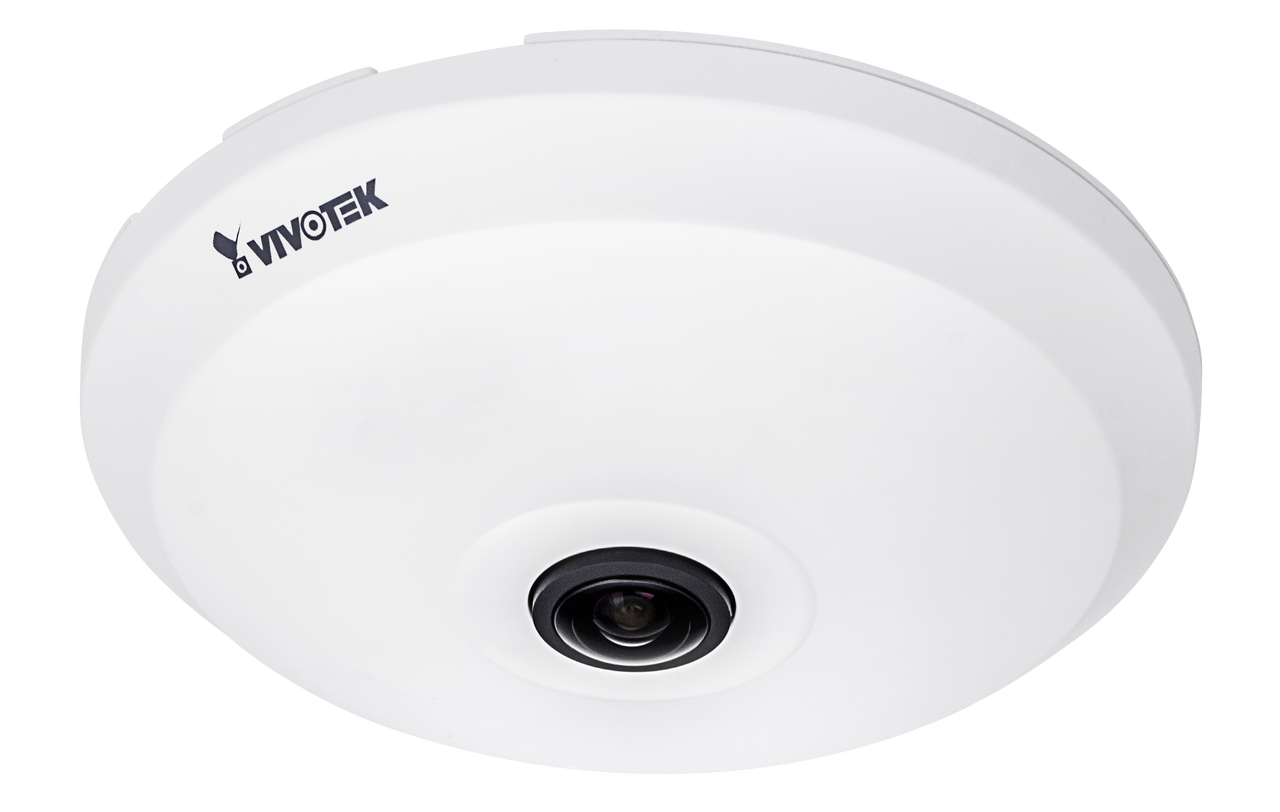

Vivotek FE9181-H 5MP H.265 360° Surround View Fisheye Dome Network Camera

Vivotek

Vivotek FE9181-H 5MP H.265 360° Surround View Fisheye Dome Network Camera

$607.50
Discontinued
SKU: FE9181-H

Discontinued - Recommended Replacement: FE9380-HV

Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement:

FE9380-HV

Vivotek FE9181-H Features

  • Max Resolution: 1920x1920
  • Image Sensor: 1/1.8" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.18 Lux @ F2.2 (Color); 0.001 Lux @ F2.2 (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: No
  • Lens Type: Fixed
  • Focal Length: f = 1.5 mm, F2.8
  • Zoom: ePTZ; 12x digital zoom (12x on IE plug-in)
  • Iris: N/A
  • Focus: Auto
  • Field of View: 180° Horizontal, Vertical, and Diagonal
  • Compression Styles: H.265, H.264, MJPEG
  • Frame Rate: H.265 & H.264: 30 fps @ 1920x1920; MJPEG: 12 fps @ 1920x1920
  • WDR Technology: Yes, WDR Pro
  • Image Settings: Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction; Adjustable image size, quality and bit rate, defog; Pixel counter
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, up to 5m
  • Audio Capabilities: Audio input / Audio output (full duplex), External microphone input, External line output
  • Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø 139 x 38 mm
  • Weight: 345 g
  • Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Operating Humidity: 90% RH
  • Power/Consumption: DC 12V or IEEE 802.3at PoE Class 0; Max. 5.5 W
  • Warranty: 3 Years
  • What's Included: Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, I/O cable, mounting bracket, software CD, User's manual, quick installation guide, Installation Wizard 2, VAST
Vivotek FE9181-H Overview

VIVOTEK’s FE9181-H is an unique H.265 fisheye fixed dome network cameras, featuring a detailed 5-Megapixel CMOS sensor that produces superb image clarity. By employing H.265 compression technology and VIVOTEK’s Smart Stream II technology, the camera can reduce both bandwidth and storage consumption by up to 80%* while retaining the highest standard of image quality.

Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor mount) with zero blind spots, the cameras are able to provide coverage of wide, open areas, such as airports, shopping malls, retail stores, offices and more.

The FE9181-H is equipped with a removable IR-cut filter and WDR Pro technology, empowering the cameras to maintain optimal image quality around the clock and unparalleled visibility in high-contrast lighting environments.

* Depending on scene.
