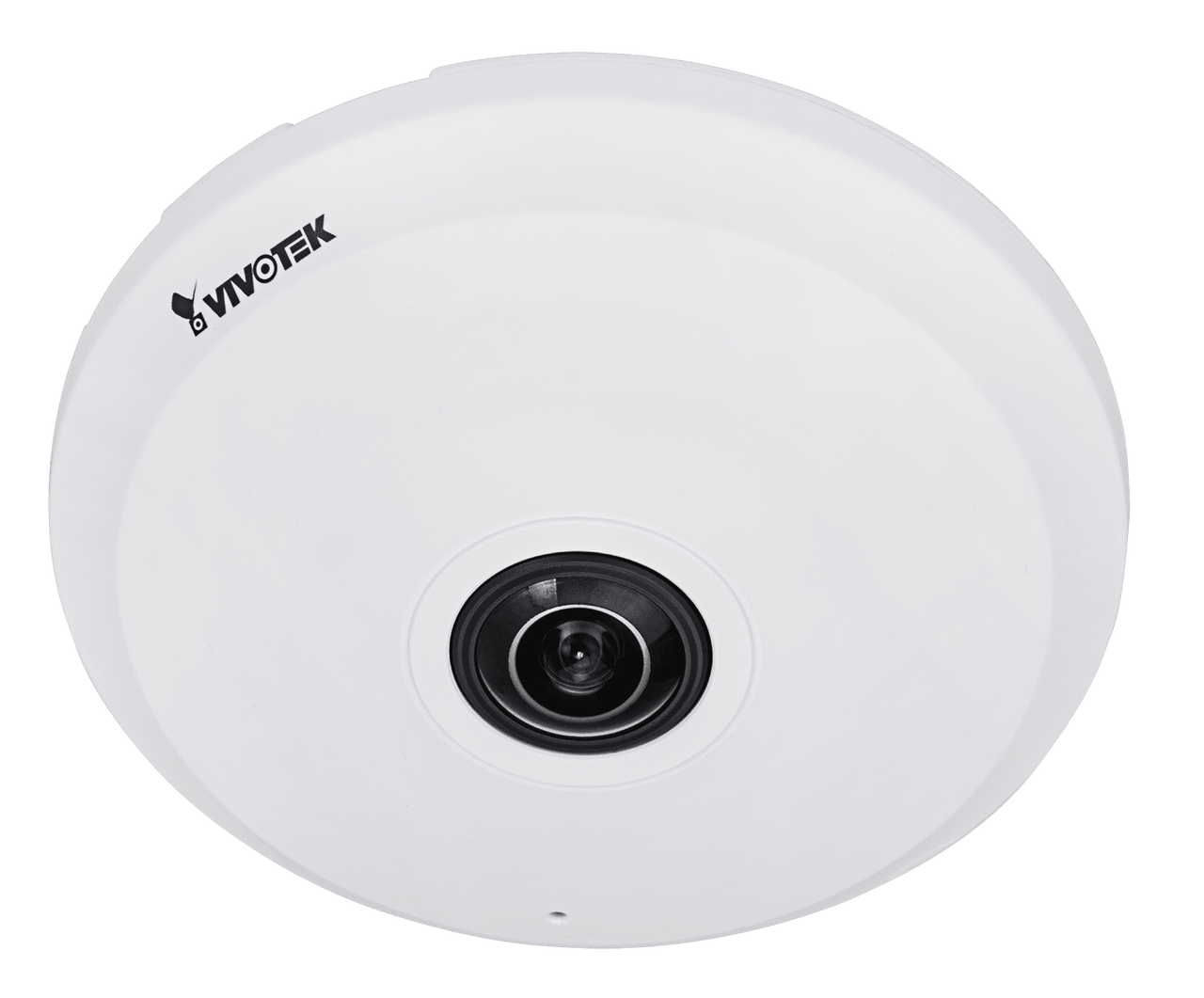

Vivotek FE9191 12MP 360° Indoor Fisheye Dome Network Camera
Discontinued - Recommended Replacement: FE9191-H-v2
Discontinued - Recommended Replacement:
FE9191-H-v2
Vivotek FE9191 Features
- Max Resolution: 2816x2816
- Image Sensor: 1/1.7" Progressive CMOS sensor
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
- Minimum Illumination: 0.18 Lux @ F2.2 (Color); <0.001 Lux @ F2.2 (B/W)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Fixed
- Focal Length: f = 1.29 mm / F2.2
- Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Iris: N/A
- Focus: Auto
- Field of View: 180° Horizontal, Vertical, and Diagonal
- Compression Styles: H.265, H.264, MJPEG
-
Frame Rate: 20 fps @ 2816x2816 max
- Image Settings: WDR Enhanced, Adjustable resolution, quality and bitrate, configurable video cropping for bandwidth saving, Smart Stream II, Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, pixel calculator, 3D-Noise reduction, white balance, exposure control, gain, backlight compensation, privacy masks, defog, pixel calculator
- Built-in Microphone: Yes, up to 5m
- Audio Capabilities: Two-way audio via Built-in microphone, External microphone input, & External line output
- Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection; Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
- ONVIF: Yes
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: Ø 139 x 39 mm
- Weight: 345g (.76 lb)
- Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Operating Humidity: 90% RH
- Power/Consumption: DC12V, PoE 802.3af Class 2 / Max. 6.49 W
- Warranty: 3 Years
-
What's Included: Camera, Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, mounting bracket. Power & I/O Cables are Sold Separately in US & Canada
VIVOTEK’s FE9191 is the next generation of market-leading 12-Megapixel 360° panomorph network camera, featuring a detailed 12-Megapixel CMOS sensor which guarantees superb image quality. Utilizing the latest in panomorph lens technology for 180° panoramic view (wall mount) or 360° surround view (ceiling/wall/floor mount) with zero blind spots, the camera is able to provide comprehensive coverage of open areas such as airports, shopping malls, parking lots, retail stores, offices and more.
The FE9191 is the successor to FE8191 in the VIVOTEK 360° surround view family. The new model is equipped with a removable IR-cut filter and WDR Enhancement technology, allowing the camera to maintain optimal image quality around the clock for unparalleled visibility under high-contrast lighting environments. 3D Noise Reduction technology enables the camera to capture clear, polished video under low-light conditions. The FE9191’s use of the latest in panomorph lens technology has led to much improved image quality with a huge drop in edge distortion.
The FE9191 will also be the first to include a new wave of advanced Video Content Analysis (VCA). Available in 4Q 2017, this will include better object detection in order to reduce false alarms. Through advanced Video Content Analysis functions including crowd detection features the FE9191 is the next steps in elevating surveillance cameras from image capturing devices to advanced notification instruments, allowing users to see more in smarter ways.
