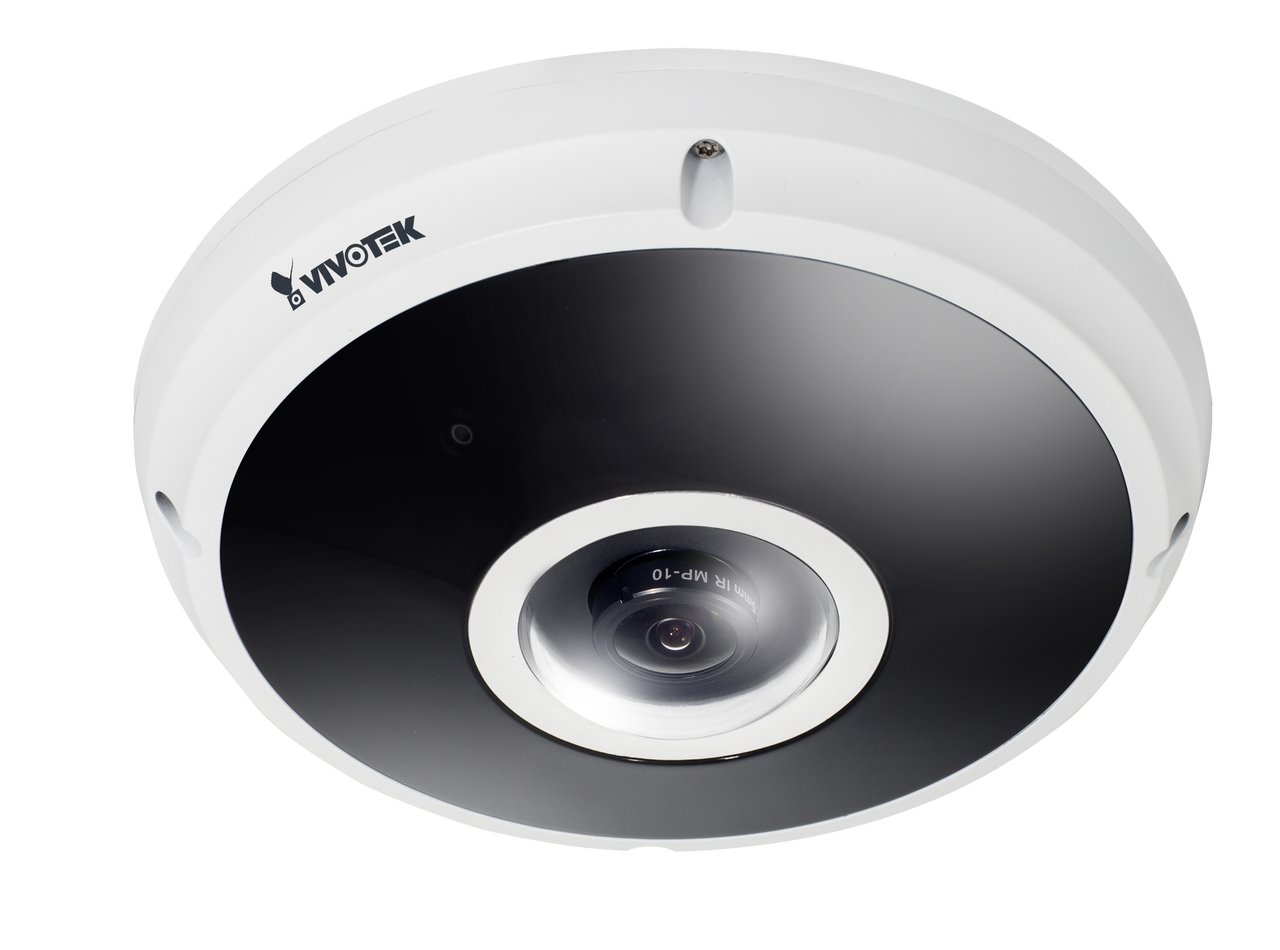

Vivotek FE9380-HV 5MP 360° Surround View IR Fisheye Network Camera
Choose options
Vivotek FE9380-HV Features
Camera Features
- Image Sensor 1/2.7" Progressive CMOS
- Max. Resolution 1920x1920
- Lens Type Fixed-focal
- Focal Length f = 1.16 mm
- Aperture F2.25
- Auto-iris Fixed-iris
- Field of View 360° (Horizontal), 360° (Vertical), 360° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators, effective up to 10 meters with Smart IR, IR LED*4
- Minimum Illumination 0.05 Lux @ F1.16 (Color), <0.005 Lux @ F1.16 (B/W), 0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities ePTZ: 12x digital zoom (12x on IE plug-in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
Video
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 24 fps @ 1920x1920 (WDR on), 30 fps @ 1920x1920 (WDR off)
- Maximum Streams 4 simultaneous streams
- S/N Ratio 63.3 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings Adjustable image size, quality and bit rate, time stamp, text overlay, flip and mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3DNR, video rotation, defog
Audio
- Audio Capability One-way Audio
- Audio Compression G.711, G.726
- Audio Interface Built-in microphone
- Effective Range 5 meters
Network
- Users Live viewing for up to 10 clients
- Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported
Solution Integration
- Video Motion Detection Five-window video motion detection
- VADP Package Trend Micro IoT Security, Stratocast
Alarm and Event
- Alarm Triggers Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, Audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events Event notification via email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection *1
- LED Indicator System power and status indicator
- Power Input IEEE 802.3af PoE Class 0
- Power Consumption Max. 12 W (IR on), Max. 3.8 W (IR off)
- Dimensions Ø 150 x 68.2 mm
- Weight 695 g
- Casing IP66, IK10
- Safety Certifications CE, FCC Class A, UL, LVD, VCCI, C-Tick
- Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) / Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
- Humidity 90%
- Warranty 24 months
Included Accessories
- Quick installation guide, alignment sticker, screw pack, warranty card, desiccant bag
Vivotek FE9380-HV Overview
The 5-Megapixel FE9380-HV is the newest addition to the VIVOTEK 360° fisheye family. The FE9380-HV is a true day/night camera, with a removable IR-cut filter and 360° IR illumination up to 10 meters radius. It supports up to 30fps at full 5MP resolution as well as WDR Pro 120dB to maintain excellent image quality in high contrast lighting environments. These features greatly enable the FE9380-HV to provide clear images 24 hours a day.
To meet the demands of harsh outdoor applications, the FE9380-HV is armed with an IP66-rated housing for protection from rain and dust, as well as IK10-rated for robust protection against acts of vandalism. Lastly the FE9380-HV uses H.265 compression technology. When combined with Smart Stream III, H.265 helps to reduce bandwidth and storage consumption up to 90%*, enabling the FE9380-HV to record more detailed 360° images while simultaneously helping to reduce costs.
