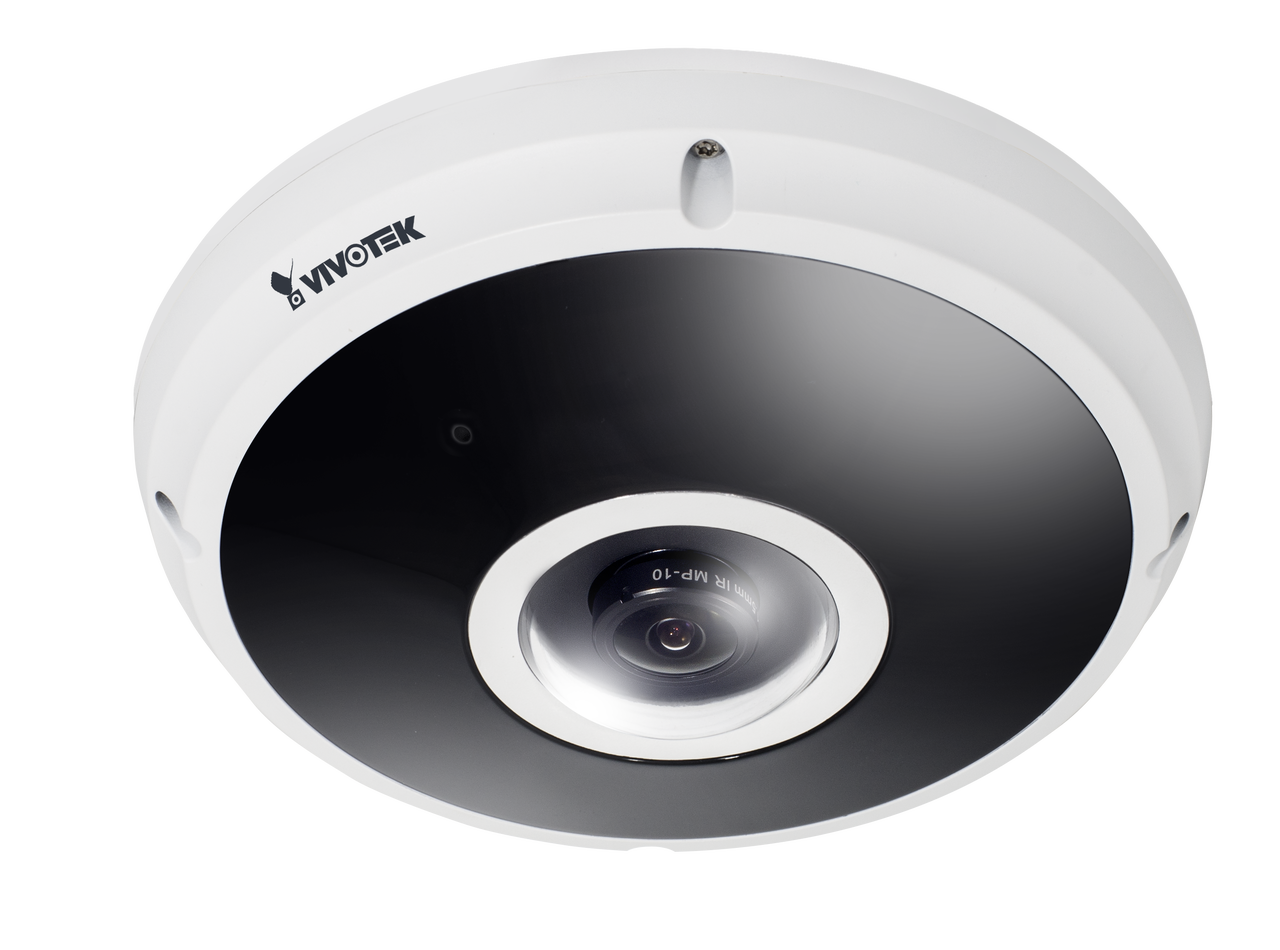

Vivotek FE9382-EHV 5MP H.265 360° Surround View IR Fisheye Network Camera
Discontinued - Recommended Replacement: FE9382-EHV-v2
Discontinued Recommended Replacement:
FE9382-EHV-v2
Vivotek FE9382-EHV Features
- Max Resolution: 1920x1920
- Image Sensor: 1/1.8" Progressive CMOS sensor
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
- Minimum Illumination: 0.18 Lux @ F2.2 (Color); 0.001 Lux @ F2.2 (B/W)
- IR Illuminators: Yes, 6 built-in
- IR Illuminator Range: Up to 20m
- Lens Type: Fixed
- Focal Length: f = 1.47mm, F2.2
- Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Iris: N/A
- Focus: Auto
- Field of View: 180° Horizontal, Vertical, and Diagonal
- Compression Styles: H.265, H.264, MJPEG
-
Frame Rate: H.265/H.264: 30 fps @ 1920x1920; MJPEG: 12 fps @ 1920x1920
WDR Technology: Yes, WDR Pro (100 dB) - Image Settings: Adjustable resolution, quality and bitrate; Smart Stream II Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction; Adjustable image size, quality and bit rate, defog; Pixel counter
- Privacy Mask: Yes
- Built-in Microphone: Yes, up to 5m
- Audio Capabilities: Two-way audio via Built-in microphone, External microphone input, & External line output
- Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD Card
- ONVIF: Yes
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated metal housing, EN50155
- Dimensions: Ø 160 x 51 mm
- Weight: 762 g (1.67 lb)
- Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
- Operating Humidity: 90% RH
- Power/Consumption: DC 12V, IEEE 802.3at PoE Class 4 / Max. 20 W
- Warranty: 3 Years
-
What's Included: Camera, Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, mounting bracket. Power & I/O Cables are Sold Separately in US & Canada
VIVOTEK’s FE9382-EHV is an unique H.265 fisheye fixed dome network camera, featuring a 5-Megapixel CMOS sensor that produces superb image clarity. By employing H.265 compression technology and VIVOTEK’s Smart Stream II technology, the camera can reduce both bandwidth and storage consumption by up to 80%* while retaining the highest standard of image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor mount) with zero blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, retail stores, offices and more. Further equipped with IR illuminators up to 20 meters, these cameras will maintain surveillance coverage both day and night. The FE9382-EHV is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments. Moreover, the FE9382-EHV is designed with full EN50155 compliance, vandalproof IK10-rated, and weather-proof IP66-rated housing, ensuring that the camera can withstand shock, vibration, humidity, dust, and temperature fluctuations, and maintain stable and reliable video capture during vehicle movement.
