Vivotek FE9582-EHNV

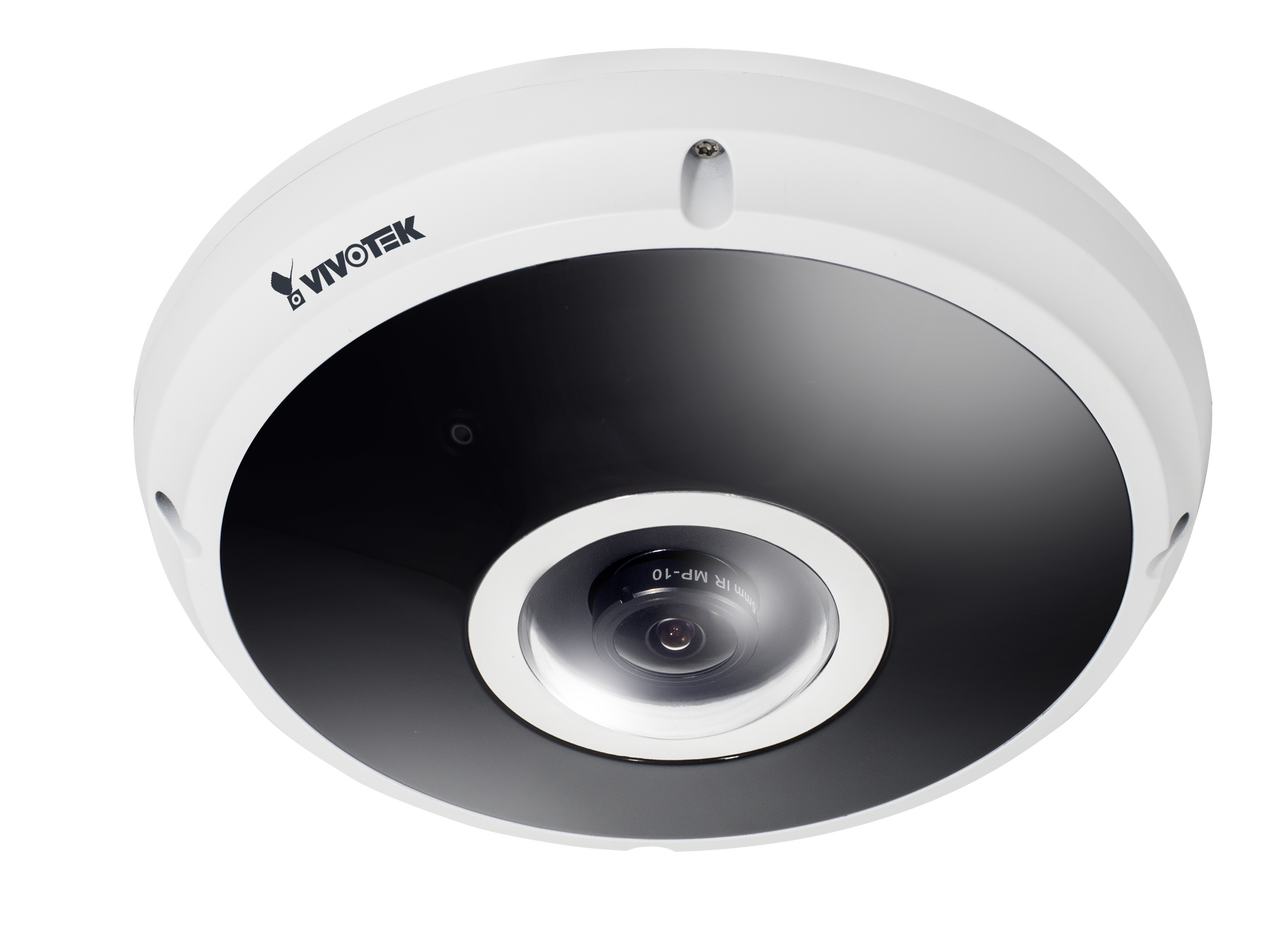

Vivotek FE9582-EHNV 5MP 940nm IR 360° Fisheye Network Camera

Vivotek

Vivotek FE9582-EHNV 5MP 940nm IR 360° Fisheye Network Camera

$975.00
Discontinued
SKU: FE9582-EHNV

Discontinued - Recommended Replacement: FE9382-EHV-v2

Link to Manufacturer's Page

Contact

Discontinued Recommended Replacement:

FE9382-EHV-v2

Features

General

  • Image Sensor 1/1.8" Progressive CMOS in 3096x2094
  • Max. Resolution 1920x1920
  • Lens Type Fixed-focal
  • Focal Length f = 1.47 mm
  • Aperture F2.2
  • Iris Type Fixed-iris
  • Field of View 180° (Horizontal), 180° (Vertical), 180° (Diagonal)
  • Shutter Time 1/5 sec. to 1/32,000 sec.
  • Minimum Illumination 0.18 Lux @ F2.2 (Color), 0.001 Lux @ F2.2 (B/W), 0 Lux with IR illumination on
  • Zoom ePTZ: 12x digital zoom (12x on IE plug-in)
  • On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
  • WDR Technology WDR Pro
  • Day/Night Yes
  • Removable IR-cut Filter Yes
  • IR Illuminators Built-in IR illuminators, effective up to 10 meters, 940nm IR LED*6

Video

  • Video Compression H.265, H.264, MJPEG
  • Maximum Frame Rate H.265 & H.264: 30 fps @ 1920x1920, MJPEG: 12 fps @ 1920x1920
  • Maximum Streams 4 simultaneous streams
  • S/N Ratio 42.3 dB
  • Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
  • Image Settings Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, defog, pixel calculator
  • Dynamic Range 100 dB

Audio

  • Audio Capability Two-way Audio (full duplex)
  • Audio Compression G.711, G.726
  • Audio Interface Built-in microphone, External microphone input, External line output
  • Effective Range 5 meters

Network

  • Users Live viewing for up to 10 clients
  • Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, CIFS/SMB
  • Interface 10 Base-T/100 BaseTX Ethernet (M12,Female,4pin D-coded)
  • ONVIF Supported

Intelligent Video

  • Video Motion Detection Five-window video motion detection
  • Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
  • Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

  • Connectors M12 4-pin connector, Audio input, Audio output, DC 12V power input, Digital input*1, Digital output*1
  • LED Indicator System power and status indicator
  • Power Input DC 12V, IEEE 802.3at PoE Class 4
  • Power Consumption Max. 20 W
  • Dimensions Ø 160 x 51 mm
  • Weight 762 g / 1.68 lb
  • Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50155, EN45545
  • Operating Temperature Starting Temperature: -25°C ~ 55°C (-13°F ~ 131°F), Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
  • Humidity 0.9
  • Warranty 36 months
  • Casing IP66, IK10

Included Accessories

  • Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, mounting bracket, Power & I/O Cables are Sold Separately in US & Canada

Overview

VIVOTEK’s FE9582-EHNV is a fisheye network camera fine-tuned for the transportation industry. Based on the popular FE9382-EHV outdoor fisheye, the FE9582-EHNV features the same detailed 5-Megapixel CMOS sensor for superb image clarity. The FE9582-EHNV also maintains the same IP66/IK10 housing, WDR Pro, and world class dewarping PTZ functionality, but then adds these new features specifically for transportation.

Already EN50155 certified, the FE9582-EHNV now adds EN45545 certification for fire safety in rolling stock. The FE9582-EHNV swaps out the RJ45 connector in favor of a 4-pin D-coded M12 connector, more commonly associated with ethernet connections in buses and trains. Lastly, the FE9582-EHNV utilizes 940nm IR illuminators instead of the more common 850nm IR's. By using invisible 940nm IR illumination at night, the FE9582-EHNV is less noticeable and bothersome to sleeping passengers trying to rest between destinations, yet still allows the camera to keep constant surveillance 24/7.

Additionally, the FE9582-EHNV employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming.
