- Hands-Free Access Control
- Accurate Authentication
- Large Capacity of Facial Profiles
- Dual Accreditation Available
System Architecture
Specifications
Technical Specifications
System Information

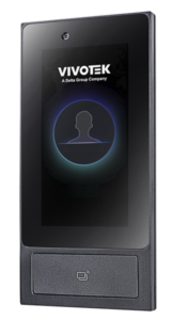

- Model
- FT9361-R
- SoC
- Multimedia SoC (System-on-Chip)
- OS
- Linux
- ROM
- 8 GB
- RAM
- 1 GB
Camera
- IR Camera
- 1.3M @1280x1080
- RGB Camera
- 1920x1080(2M)
- WDR
- RGB > 100dB
- Low Lux
- RGB < 0.01 lux @F1.2 IR< 0.01 lux @F1.2
Display
- LED Panel
- IPS 6" (1440x720)
Build-in Card Reader Information
- 13.56Mhz
- Mifare
Facial Recognition
- Recognition Distance
- 0.3M-1.5M
- Recognition Speed
- < 1 sec
- Database Size
- 50,000 Profiles(Max.)
Alarm
- Tamper Switch Alarm
- Audio alarm
General
- Audio Function
- Built-in speaker
- Connectors
- RJ-45 cable connector for 10/100Mpbs Network/PoE connection
- Weigand
- output 24bit/26bit/32bit/34bit
- DI x 3
- NO/NC/COM
- DO x 3
- NO/NC/COM
- Relay x 1
- NO/NC/COM
- Power Input
- PSE Class 4 (IEEE802.3at)//DC 12V
- Dimensions
- 221.1mm X 103.6mm X 26.5mm
- Certifications
- EMC: CE, FCC, NCC
- Operating Temperature
- -20°C ~ 60°C /-4°F ~ 140°F
- Humidity
- 90% RH (non-condensing)
- IP Ranking
- IP65
