Vivotek

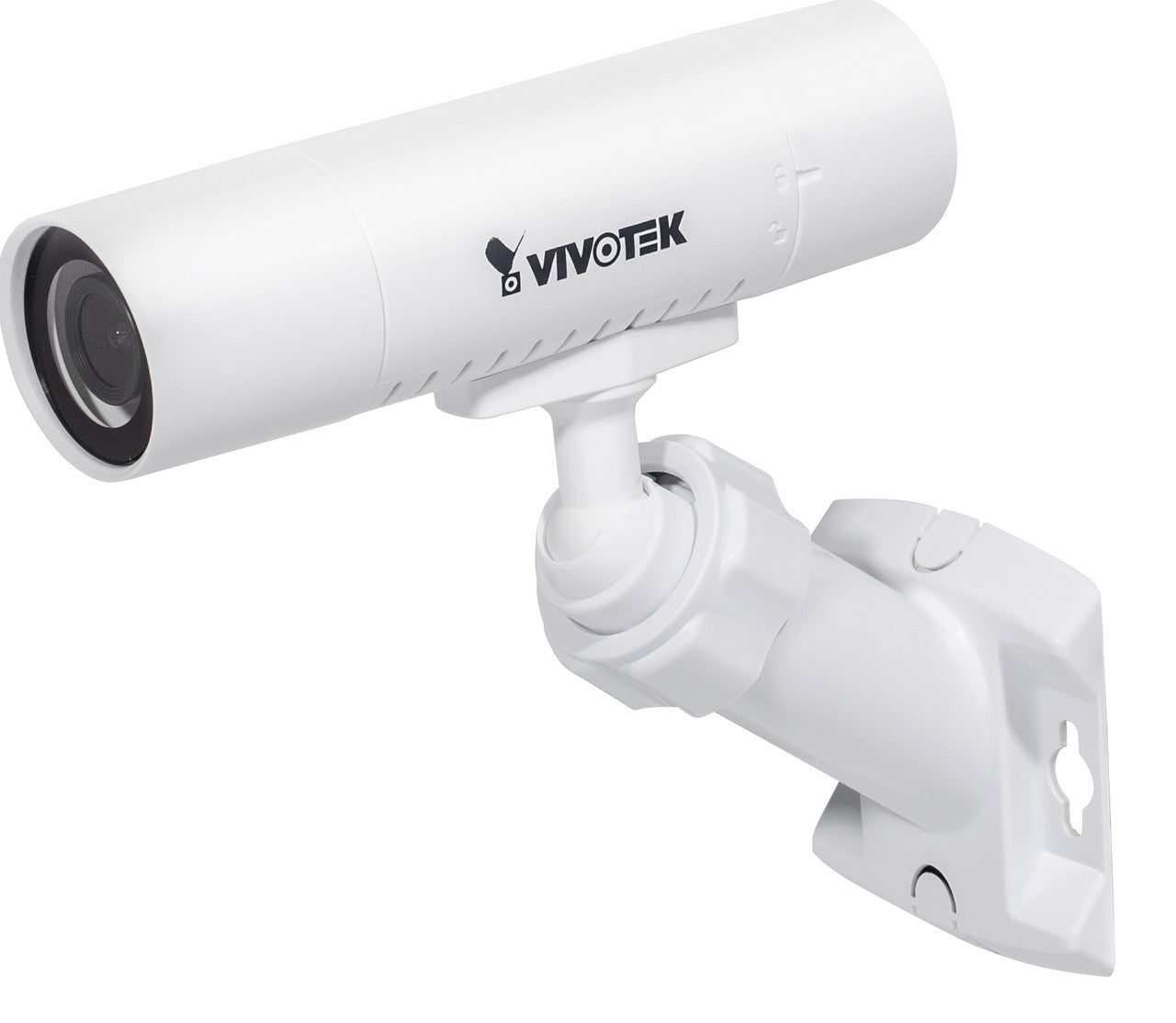

Vivotek IB8168-C 2MP Ultra-mini Flexible Mount Bullet Network Camera
Discontinued - Recommended Replacement: IB8360
Vivotek IB8168-C Features
- Max Resolution: 1920 x 1080 (2 MP)
- Image Sensor: 1/2.7" Progressive CMOS
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: 0.58 Lux @ F1.8
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Fixed-focal
- Focal Length: f = 3.6mm / F1.8
- Zoom: No
- Iris: N/A
- Focus: Manual
- Field of View: 97° (horizontal), 52° (vertical), 113° (diagonal)
- Compression Styles: H.264 & MJPEG
- Frame Rate: 15 fps @ 1920x1080, 30 fps @ 1280x720 in both compression
- WDR Technology: No
- Image Settings: Adjustable resolution, quality and bitrate, Configurable video cropping for bandwidth saving, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
- ONVIF: Yes
- Security: N/A
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: None
- Dimensions: Ø 32 mm x 117 mm (w/o bracket)
- Weight: 108 g (IB8168-C), 178 g (IB8168-G)
- Operating Temperature: -20°C ~ 40°C (-4°F ~ 104°F)
- Operating Humidity: N/A
- Power: IEEE 802.3af PoE Class 1
- Warranty: 2 Years
- What's Included: Camera, Quick installation guide, warranty card, alignment sticker, -C mount bracket
- Please Note: Also available as Special Order -G mount.
Vivotek IB8168-C Overview
VIVOTEK IB8168 is an ultra-mini bullet network camera, specially designed for indoor applications in which camera appearance is cared, such as luxury stores, antique stores and cloth shops. The IB8168 is equipped with a 2-megapixel sensor and the ability to output 15 frames per second in H.264 compression. It includes multiple streams with different settings and applications, such as recording or live viewing. Users can also benefit from simple installation with the compact housing and standard PoE power input design, as well as a MicroSD card slot for local storage use.
