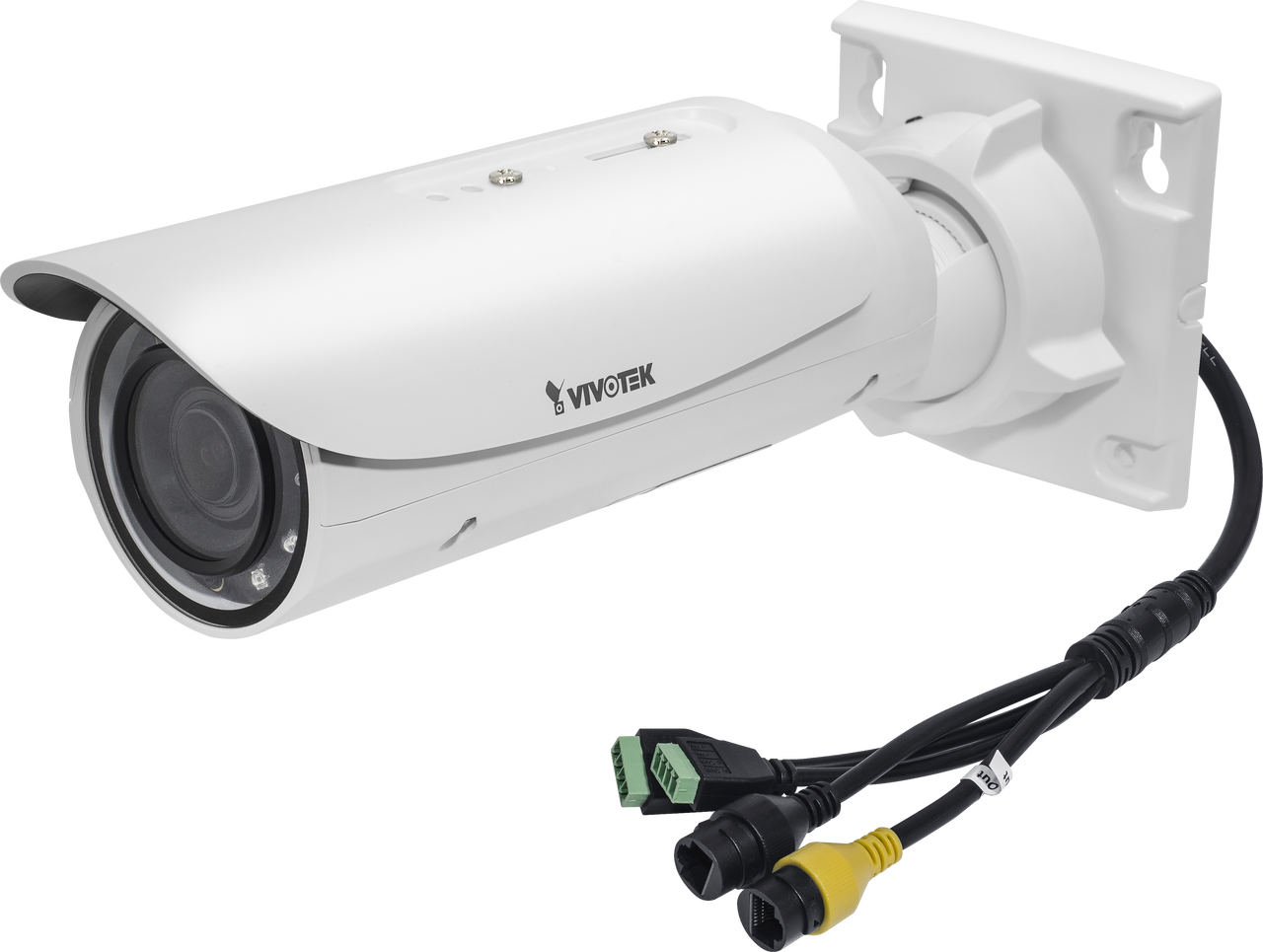

Vivotek IB8338-HR 1MP Embedded PoE Extender Network Camera

Vivotek

Vivotek IB8338-HR 1MP Embedded PoE Extender Network Camera

Sale price$420.00
Discontinued
SKU: IB8338-HR

Contact

Discontinued; replaced by the IB836BA-HT.

Vivotek IB8338-HR Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.27 Lux @ F1.8 (Color) 0.001 Lux @ F1.8 (B/W)
  • IR Illuminators: Yes, with Smart IR
  • IR Illuminator Range: Up to 30 meters
  • Lens Type: Vari-focal
  • Focal Length: f = 2.8 ~ 12 mm / F1.8 ~ F2.85
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
  • Iris: Auto P-iris
  • Focus: Manual
  • Field of View: 33° ~ 87° (Horizontal), 21° ~ 54° (Vertical), 39° ~ 110° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: Up to 30 fps at 1280x800 in both compression styles
  • WDR Technology: WDR Pro
  • Image Settings: Adjustable resolution, quality and bitrate, Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, Scheduled profile settings, 3D noise reduction, seamless recording
  • Privacy Mask: Yes
  • Built-In Microphone: No
  • Audio Capabilities: Supports two-way audio via External microphone input & Audio output
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing
  • Dimensions: Ø: 82 x 283 mm
  • Weight: 985 g (2.17 lb)
  • Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F)
  • Operating Humidity: N/A
  • Power/Consumption: IEEE 802.3at, UPoE / Max. 10W
  • Warranty: 3 Years
  • What's Included: Camera & mount, L-type Hex Key, torx security wrenches, desiccant bag, screws, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software), quick installation guide, alignment sticker
Vivotek IB8338-HR Overview

The VIVOTEK IB8338-HR is a sleek, bullet-style network camera designed for diverse outdoor applications. Equipped with a 1MP sensor enabling a viewing resolution of 720P at a smooth 30 fps, the IB8338-HR is an all-in-one outdoor camera capable of capturing crystal clear images, even in high-contrast lighting conditions. The IB8338-HR is also equipped with VIVOTEK Smart Stream and 3DNR to save substantial bandwidth for our users. To suit various outdoor applications and ease cable deployment, the IB8338-HR is the first network camera in the surveillance market designed with an embedded extender to allow PoE input and PoE output. With the IB8338-HR, users can implement a total PoE solution simply and quickly.
