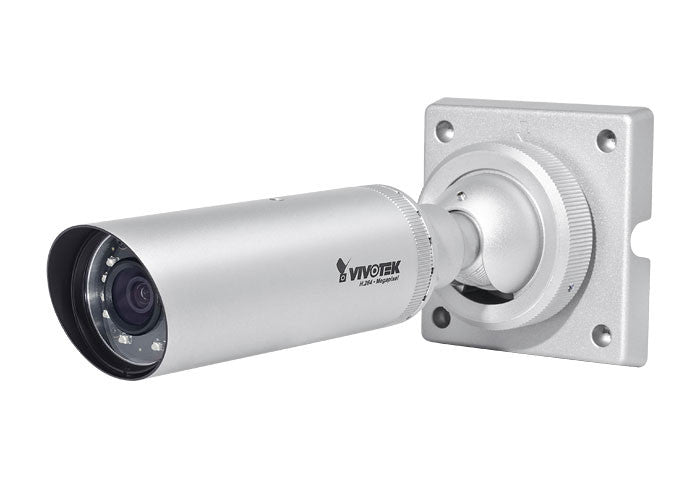

Vivotek IB8354-C 1.3MP Bullet Network Camera

Vivotek

Vivotek IB8354-C 1.3MP Bullet Network Camera

Sale price$225.00
Discontinued
SKU: IB8354-C

Vivotek IB8354-C Features

  • Max Resolution: 1280 x 1024 (1.3 MP)
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.08 Lux @ F1.6 , 30 IRE (Color), 0.06 Lux @ F1.6 , 30 IRE (B/W), 0 Lux @ IR LED ON
  • IR Illuminators: Yes
  • IR Illuminator Range: 20 meters
  • Lens Type: Fixed-focal
  • Focal Length: f=4mm / F1.6
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: N/A
  • Focus: Auto
  • Field of View: 69° (horizontal), 54° (vertical), 87° (diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps @ 1280 x 1024 in all compressions
  • WDR Technology: No
  • Image Settings: Spreme Night Vision, 3-Dimensional Noise Reduction (3DNR), Adjustable resolution, quality and bitrate, Configurable video cropping for bandwidth saving, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D noise reduction
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weatherproof
  • Dimensions: Ø: 60 mm x 294 mm
  • Weight: 1,161 g (2.56 lb)
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: N/A
  • Power: IEEE 802.3af PoE Class 3
  • Warranty: N/A
  • What's Included: Camera, Quick installation guide, warranty card, alignment sticker, desiccant bag, Cable management bracket, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek IB8354-C Overview

VIVOTEK IB8354-C, equipped with a 1.3MP sensor enabling viewing resolution of 1280x1024 at a smooth 30 fps, is a best-in-class, bullet-style network camera designed for diverse outdoor applications. In order to adapt to constantly changing outdoor lighting conditions, the IB8354-C features a removable IR-cut filter as well as improved IR illuminators effective up to 20M for superior image quality around the clock. The supreme sensitivity of the sensor enables the camera to capture true colors in dark areas. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing to withstand dust and rain. The IB8354-C further strengthens the robustness of the camera by protecting the cable within the bracket. Incorporating a number of advanced features for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the IB8354-C is the ideal solution for your outdoor surveillance needs.
