Vivotek IB8360 2MP VivoCloud Mini Bullet Network Camera

Replaced by the IB8360-W

Vivotek IB8360 Features

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/2.9" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.1 Lux @ F2.0 (Color), 0.01 Lux @ F2.0 (B/W), 0 Lux with IR illumination on
• IR Illuminators: Yes
• IR Illuminator Range: up to 12m with Smart IR
• Lens Type: Fixed focal
• Focal Length: f = 3.6mm / F2.0
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: Fixed-iris
• Focus: Manual
• Field of View: 89° (Horizontal); 46° (Vertical); 105° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080
• WDR Technology: WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, defog, 3DNR, video rotation
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: No
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66-rated housing
• Dimensions: 99.22 x 74.47 x 163.53 mm
• Weight: 220 g (.49 lb)

• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: 90%
• Power: IB8360: IEEE 802.3af PoE Class 2 / Max. 6.1 W
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, stand with screw kit

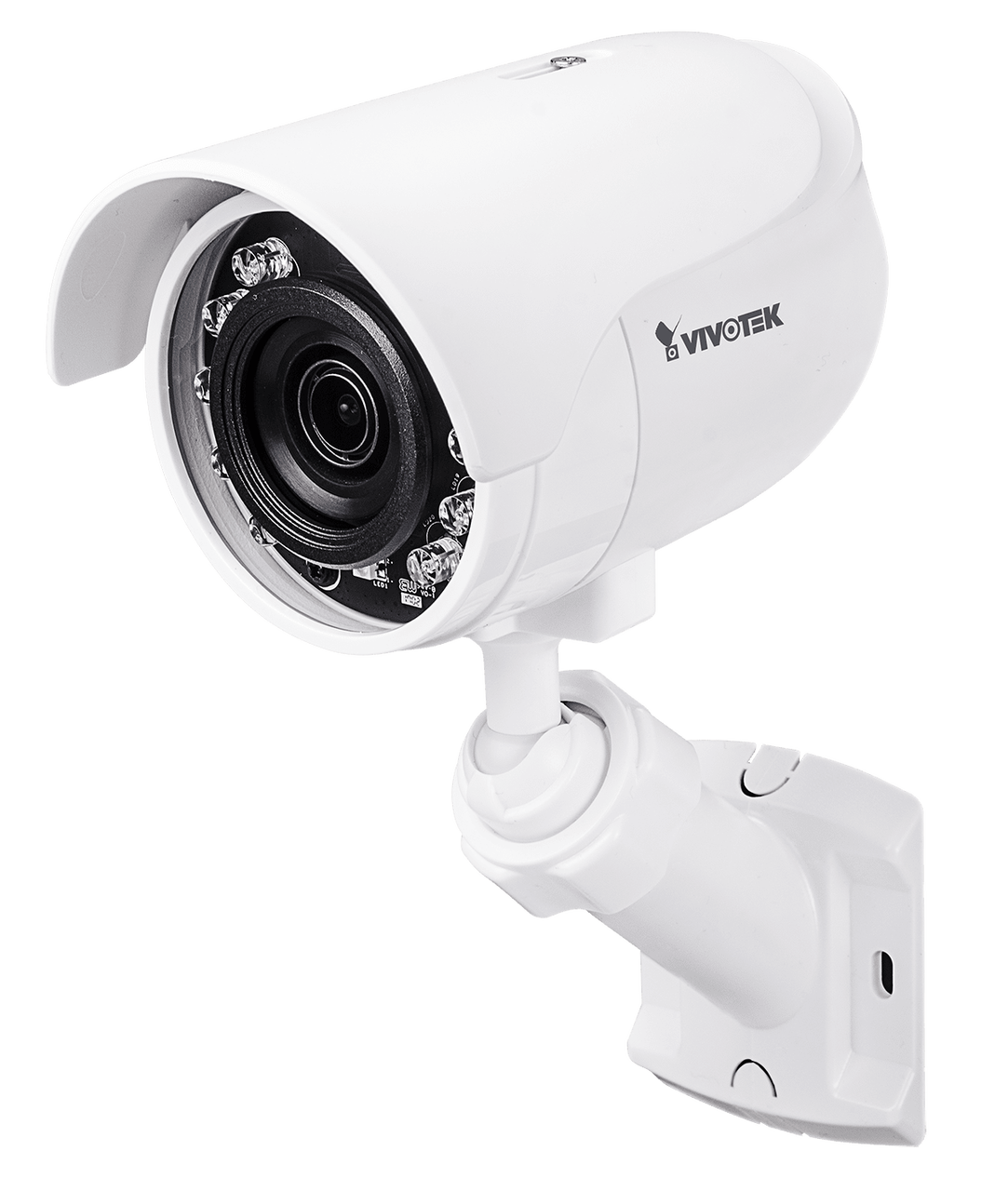

Vivotek IB8360 Overview

VIVOTEK’s IB8360 is a stylish 2-megapixel mini outdoor bullet network camera, specifically designed for boutique retail applications. Delivering a resolution of 1920x1080 at 30 fps, having IR illuminators effective up to 12 meters, and including SNV technology for low light environments, the remarkable cameras provide users with superior image quality around the clock.

When coupled with VIVOTEK’s Smart Stream II technology, the IB8360 can reduce both bandwidth and storage consumption by up to 50%* while retaining the same superb image quality as a Full HD camera. Built to withstand challenging weather conditions, the IB8360 is armed with weatherproof IP66-rated housing to withstand rain and dust, and ensure smooth operation.

VIVOTEK provides two easy-to-install options for this compact camera; the IB8360-W boasts a 802.11b/g/n compatible wireless connection, and the IB8360 is designed for Power over Ethernet (PoE) functionality. Both cameras were designed and constructed for simple installation and easy connection.
