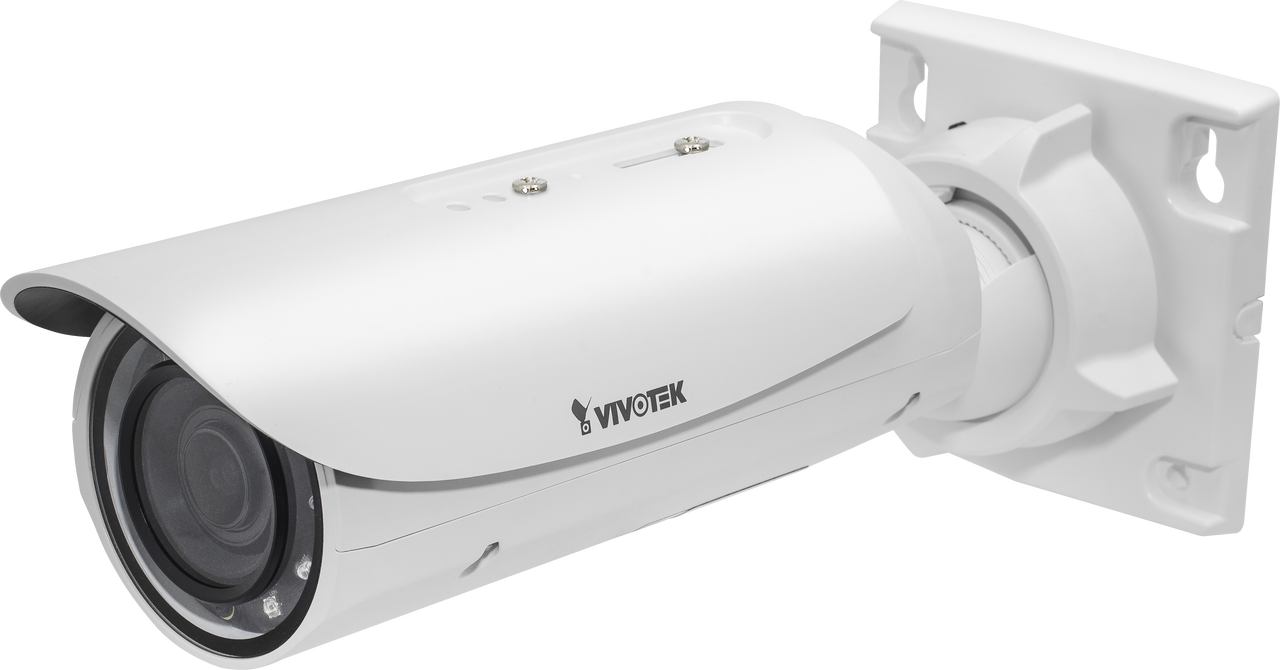

Vivotek IB8367 2MP IR Bullet Network Camera

Discontinued; replaced by the IB8367A.

Vivotek IB8367 Features

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.06 Lux @ F1.8 (Color); 0.001 Lux @ F1.8 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 2.8 ~ 12 mm / F1.8 ~ F2.85
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Manual
• Field of View: 30° ~ 98° (Horizontal), 21° ~ 54° (Vertical), 40° ~ 121° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression modes
• WDR Technology: Yes, WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via external microphone input external line output
• Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card, File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weather-proof
• Dimensions: Ø: 82 x 283 mm
• Weight: Net: 920 g
• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: DC 12V / 8.6W; IEEE 802.3af PoE Class 3 9.7W
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, sun shield, wall mount bracket, alignment sticker/desiccant bag, waterproof connector, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek IB8367 Overview

VIVOTEK IB8367 is a stylish, bullet-style network camera designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB8367 is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel, even in low light environment. IB8367 is also designed with VIVOTEK Smart Stream, 3DNR to save notable bandwidth for users. Incorporating a number of advanced features standard for VIVOTEK cameras, the IB8367 are the ideal solutions for your outdoor surveillance needs.
