Vivotek

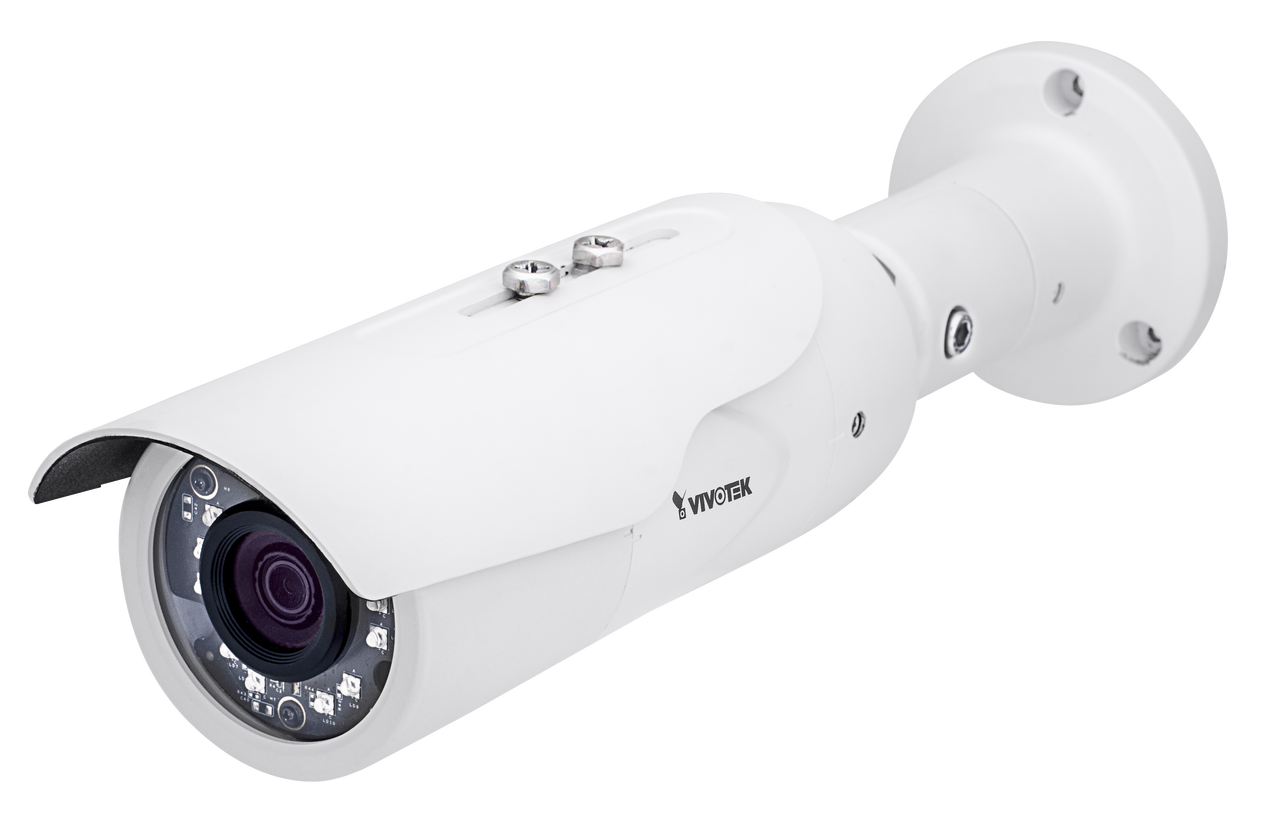

Vivotek IB8369A 2MP IR Fixed Bullet Network Camera
Discontinued - Recommended Replacement: IB9360-H
Replaced by the IB9360-H
Vivotek IB8369A Features
- Max Resolution: 1920 x 1080 (2MP)
- Image Sensor: 1/2.9" Progressive CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: 0.06 Lux @ F2.1 (Color); 0.01 Lux @ F2.1 (B/W)
- IR Illuminators: Yes
- IR Illuminator Range: up to 30m
- Lens Type: Fixed-focal
- Focal Length: f = 3.6mm / F2.1
- Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Iris: DC-iris
- Focus: Manual
- Field of View: 78° (Horizontal); 42° (Vertical); 84° (Diagonal)
- Compression Styles: H.264 & MJPEG
- Frame Rate: 30 fps @ 1920x1080 in both compression modes
- WDR Technology: Yes, WDR Enhanced
- Image Settings: Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction, video rotation, defog
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection / Alarm Events Event notification using HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
- ONVIF: Yes
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated metal housing
- Dimensions: Ø 72 mm x 300 mm
- Weight: Net: 1010 g
- Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
- Operating Humidity: 90%
- Power/Consumption: IEEE 802.3af PoE Class 0 / Max 10W
- Warranty: 2 years
- What's Included: User's manual, quick installation guide, Installation Wizard 2, VAST 32-CH Software, Quick installation guide, alignment sticker, cable management bracket, screw pack, sun shield
Vivotek IB8369A Overview
VIVOTEK’s IB8369A is an all-in-one bullet-style network camera designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB8369A is an ideal and highly adaptable outdoor camera capable of capturing high quality video at high resolutions of up to 2 Megapixel.
The IB8369A features VIVOTEK's sophisticated Smart Stream II technology, allowing the camera to optimize image quality for the most important regions in any scene, and thus ensuring maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements. In order to adapt to constantly changing outdoor lighting conditions, the IB8369A also features a removable IR-cut filter as well as IR illuminators effective up to 30M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in a weather-proof IP66-rated housing, making it impervious to rain and dust. The robustness of the IB8369A is further strengthened by the adoption of rugged IK10 design housing.
Incorporating a number of advanced features standard for VIVOTEK cameras, including video rotation, defog, a dedicated MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the IB8369A is the ideal solution for your outdoor surveillance needs.
