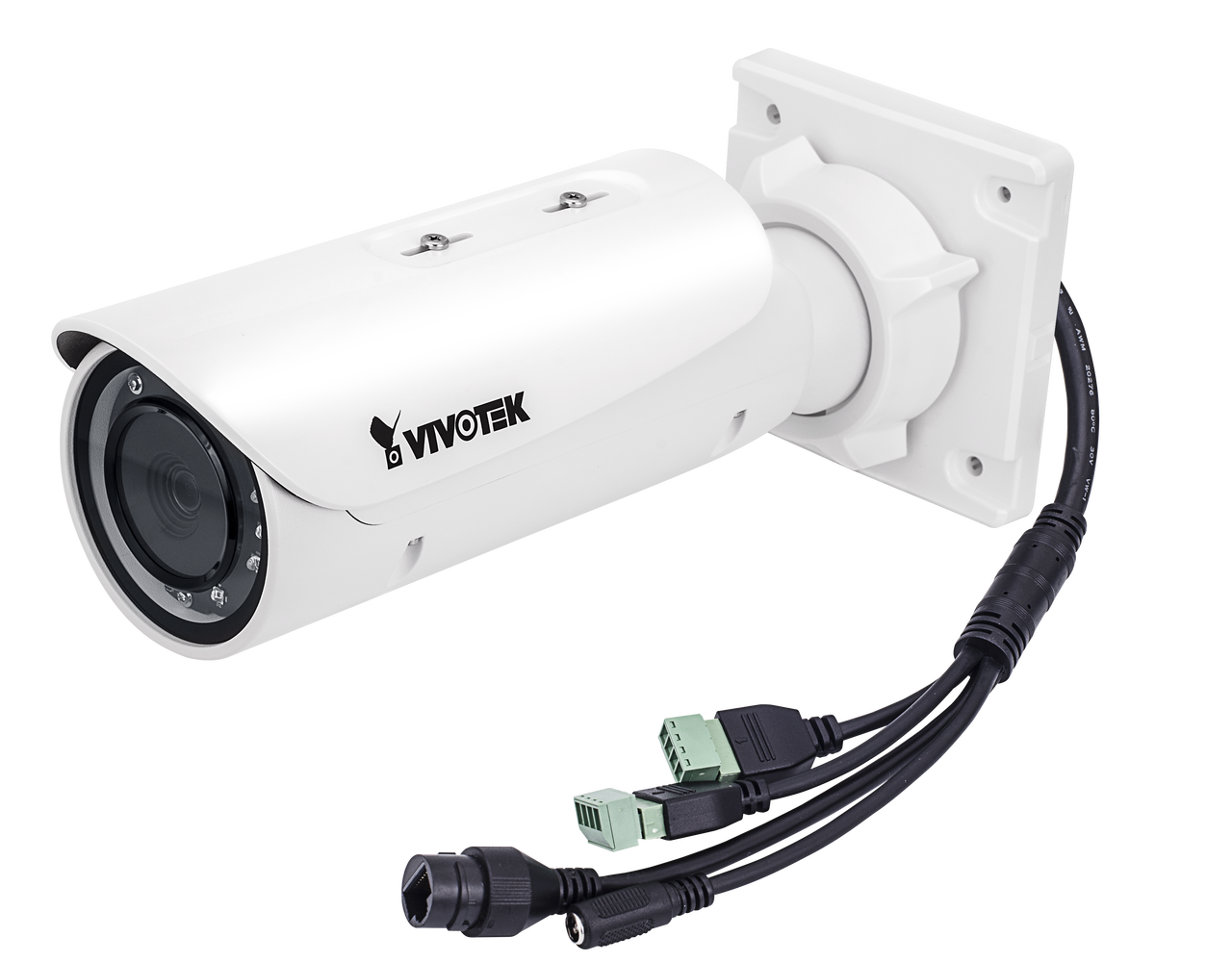

Vivotek IB836B-HT 2MP Remote Focus Bullet Network Camera
Discontinued - Recommended Replacement: IB836BA-HT
Discontinued; replaced by the IB836BA-HT.
Vivotek IB836B-HT Features
- Max Resolution: 1920 x 1080 (2MP)
- Image Sensor: 1/2.8" Progressive CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
- Minimum Illumination: 0.03 Lux @ F1.8 (Color), 0.001 Lux @ F1.8 (B/W)
- IR Illuminators: Yes, Smart IR
- IR Illuminator Range: up to 30m
- Lens Type: Vari-focal
- Focal Length: f = 2.8 ~ 12 mm / F1.8 ~ F2.85
- Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Iris: P-iris
- Focus: Remote Focus
- Field of View: 42° ~ 110° (Horizontal), 26° ~ 61° (Vertical), 49° ~ 134° (Diagonal)
- Compression Styles: H.264 & MJPEG
- Frame Rate: 30 fps @ 1920x1080 in both compression modes
- WDR Technology: Yes, WDR (100dB)
- Image Settings: Adjustable resolution, quality and bitrate; Smart Stream, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, 3D noise reduction, video rotation, defog
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Supports two-way audio via external microphone input & audio output
- Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
- ONVIF: Yes
- Security: N/A
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66 weather-proof, IK10 vandal-proof
- Dimensions: Ø 88 x 293 mm
- Weight: Net: 1264 g / 2.79 lb
- Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
- Operating Humidity: N/A
- Power/Consumption: DC 12V or IEEE 802.3at PoE / Max. 11.5 W (DC 12V) or Max. 13 W (PoE)
- Warranty: 3 years
- What's Included: Camera, Quick installation guide, warranty card, sun shield, wall mount bracket, alignment sticker/desiccant bag, waterproof connector, screw pack, Software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)
Vivotek IB836B-HT Overview
VIVOTEK's IB836B-HT is a stylish, bullet-style network cameras designed for diverse outdoor applications and offering a complete range of options. Equipped with a 2MP Full HD sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB836B-HT is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel with WDR and SNV technology, no matter whether in high contrast or in low light environments. IB836B-HT provides remote focus with built-in stepping motors and P-iris to provide precise adjustment remotely. To meet the demands of outdoor and harsh applications, VIVOTEK's IB836B-HT is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10-rated housing provides robust protection against acts of vandalism or other impacts. When choosing VIVOTEK IB836B-H series, customers will be offered four options: the IB836B-HF3, IB836B-EHF3, IB836B-HT, and IB836B-EHT. Different options can be chosen based on the requirements of your application, such as focusing method or operating environment temperature.
