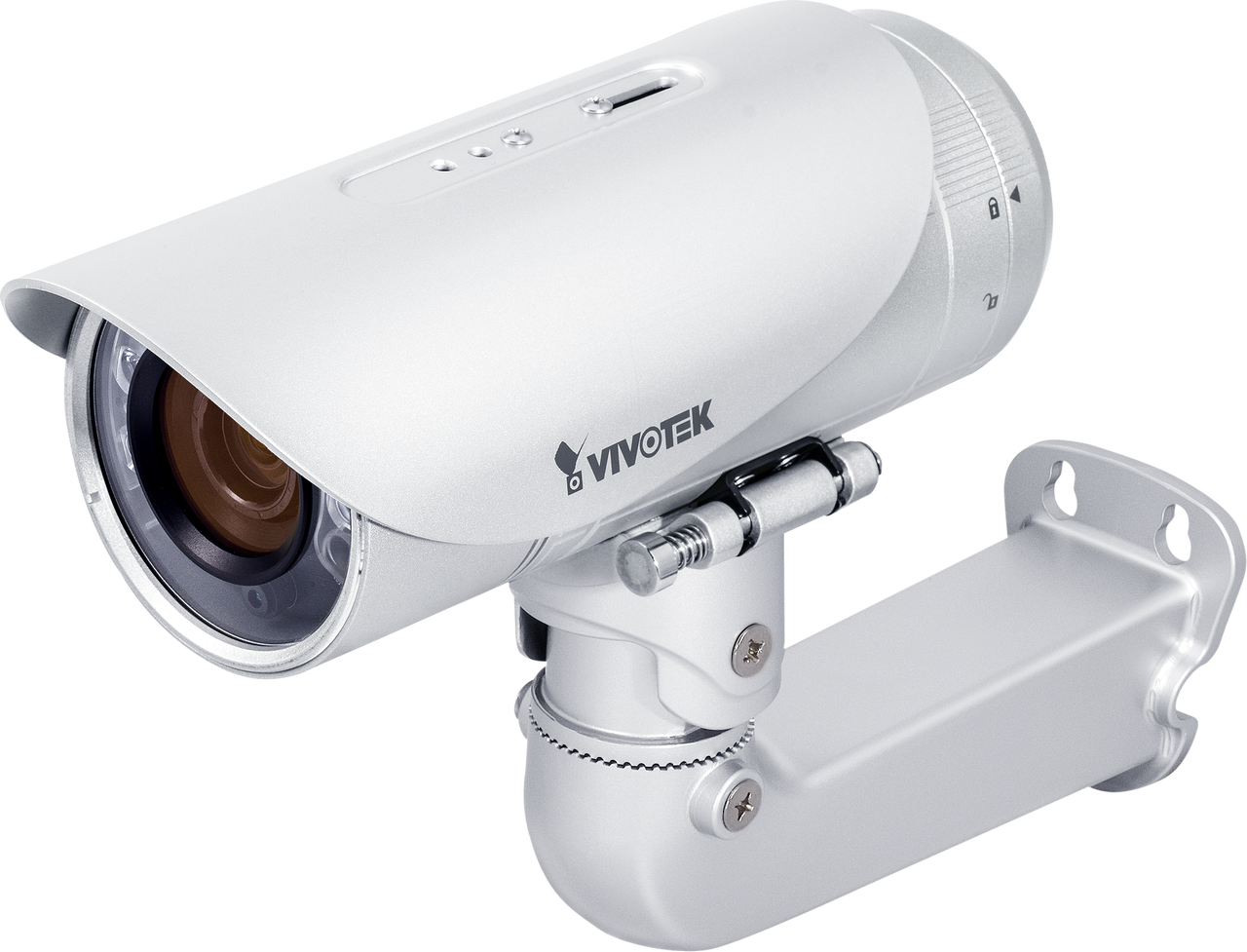

Vivotek IB8373-EH 3MP IR Smart Focus Bullet Network Camera

Discontinued; replaced by the IB8381-E or IB9371-EHT.

Vivotek IB8373-EH Features

• Max Resolution: 2048x1536 (3MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.33 Lux @ F1.8 (Color), 0.001 Lux @ F1.8 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 2.8 ~ 12 mm / F1.8 ~ F2.85
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Remote
• Field of View: 29.5° ~ 86.3° (Horizontal), 22.1° ~ 63.3° (Vertical), 37.2° ~ 114.5° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: H.264: 20 fps @ 2048x1536, 30 fps @ 1920x1080; MJPEG: 20 fps @ 2048x1536, 30 fps @ 1920x1080
• WDR Technology: Yes, WDR Pro
• Image Settings: Adjustable resolution, quality and bitrate, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, Smart Stream Seamless recording, new text on video, SD recording 1HR
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Audio input/output (full duplex), Internal microphone input & External audio output
• Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP67 weather-proof
• Dimensions: Ø: 91 mm x 221 mm
• Weight: 1,314 g (Body only), 1,911 g (With stand and sunshield)
• Operating Temperature: -50°C ~ 50°C (PoE: -20°C ~ 50°C)
• Operating Humidity: N/A
• Power/Consumption: DC 12V / 12.24 W (Heater on), 9.5W (Heater off), AC 24V / 13.11 W (Heater on), 10.1W (Heater off), IEEE 802.3af PoE Class 3 / 9.5 W
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, sun shield, wall mount bracket, waterproof RJ45 Ethernet enclosure, alignment sticker, desiccant bag, waterproof connector, software CD (User's manual, quick installation guide, Installation Wizard 2, free ST7501 32-channel VMS)

Vivotek IB8373-EH Overview

VIVOTEK's IB8373-EH network camera features a 3-Megapixel WDR CMOS sensor to cope with challenging lighting conditions. The WDR Pro feature allows the camera to capture both the dark and bright areas of an image and combine the differences to generate a highly realistic representation of the original scene. This feature enables the camera to provide video quality very close to the capabilities of the human eye. The IB8373-EH can be deployed widely in high contrast outdoor environments such as parking areas and streets. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field. The IP67-rated housing is designed to help the camera body withstand rain and dust and ensures smooth operation even under a multitude of harsh weather conditions. Additionally, the wide temperature range further enhances the IB8373-EH's performance and reliability in extremely cold environments.
