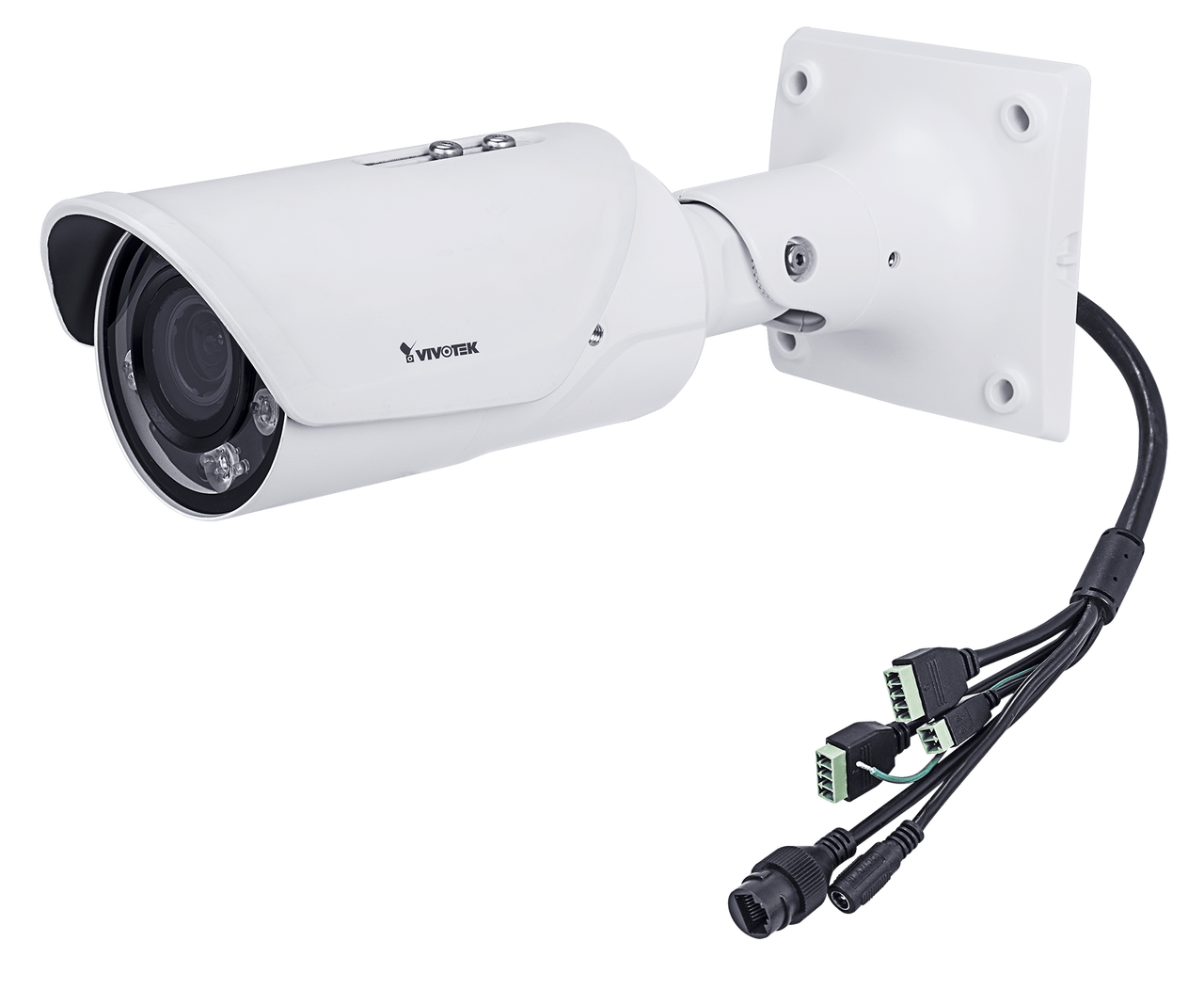

Vivotek IB8377-EHT 4MP Remote Focus Vari-Focal Bullet Network Camera

Discontinued Recommended Replacement:

IB9389-EHT

Vivotek IB8377-EHT Features

• Max Resolution: 2688x1520 (4MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.1 Lux @ F1.4 (Color); 0.01 Lux @ F1.4 (B/W), 0 Lux with IR illumination on
• IR Illuminators: Yes
• IR Illuminator Range: up to 30m with Smart IR
• Lens Type: Vari-focal
• Focal Length: f = 2.8 ~ 12 mm / F1.4 ~ F2.8
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Auto
• Field of View: 32° ~ 93° (Horizontal), 18° ~ 50° (Vertical), 37° ~ 110° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 2688x1520 (WDR Pro off), 24 fps @ 2560x1440 (WDR Pro on)
• WDR Technology: WDR Pro (110 dB)
• Image Settings: Adjustable resolution, quality and constant bit rate control; Smart Stream II, Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, defog, 3DNR, HLC, AE speed, video rotation
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two way audio via external microphone input & external line output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, PIR detection, MicroSD card life expectancy, Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated metal housing
• Dimensions: 294 x 118 x 118 mm
• Weight: 1269 g (2.8 lb)

• Operating Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
• Operating Humidity: 90%
• Power: DC 12V, IEEE 802.3at PoE Class 4 / Max. 24 W
• Warranty: 3 years
• What's Included: Camera, quick installation guide, alignment sticker, screw pack

Vivotek IB8377-EHT Overview

VIVOTEK’s IB8377-EHT is an outdoor bullet network cameras equipped with a 4MP sensor enabling resolution of 2688x1520 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB8377-EHT is capable of capturing high quality images whether in high contrast or low light environments.

The IB8377-EHT includes a remote focus lens for different monitoring range demands and is equipped with 30-meter IR illuminators for improved night visibility. For harsh outdoor environments, the IB8377-EHT is encased in an IP66, IP67 and IK10-rated housing, making it impervious to rain and dust.

Through employing VIVOTEK's Smart Stream II technology, the IB8377-EHT provides great image quality while still maintaining low bandwidth. Additionally, VADP (VIVOTEK Application Development Platform) allows users to add customized applications for various user scenarios.
