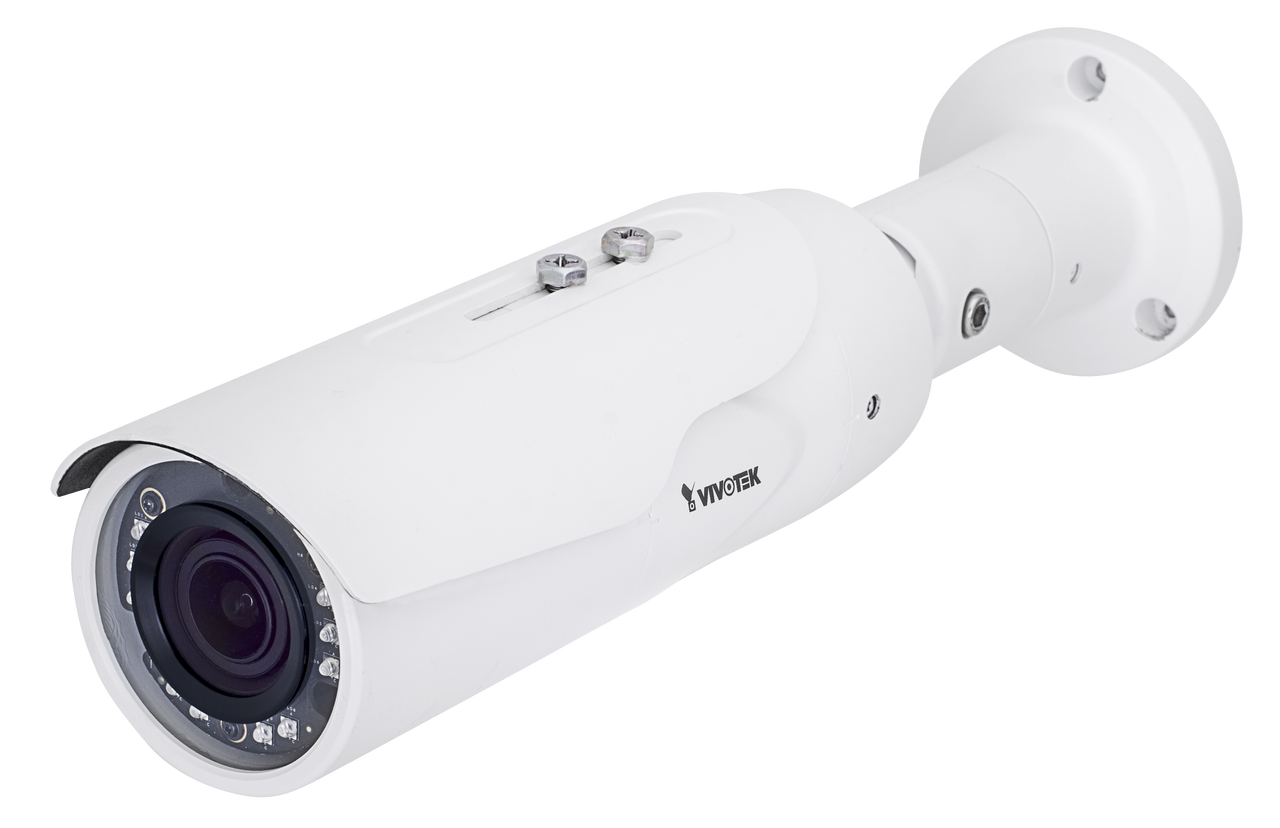

Vivotek IB8377-H 4MP Vari-Focal Bullet Network Camera

Replaced by the IB8377-HT

Vivotek IB8377-H Features

• Max Resolution: 2688x1520 (4MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.1 Lux @ F1.4 (Color); 0.01 Lux @ F1.4 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: up to 30m with Smart IR
• Lens Type: Vari-focal
• Focal Length: f = 2.8 ~ 12 mm / F1.4 ~ F2.2
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: DC-iris
• Focus: Manual
• Field of View: 33° ~ 105° (H); 18° ~ 54° (V); 38° ~ 125° (D)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 2688x1520 (without WDR Pro) 24 fps @ 2560x1440
• WDR Technology: WDR Pro (110 dB)
• Image Settings: Adjustable resolution, quality and bitrate; Smart Stream II, Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server, and SD card, File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated metal housing
• Dimensions: Ø 72 x 327 mm
• Weight: 1085 g (2.39 lb)

• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: 90%
• Power: IEEE 802.3af PoE Class 0 / Max. 8.5 W
• Warranty: 3 years
• What's Included: Camera, quick installation guide, alignment sticker, cable management bracket, screw pack, sunshield

Vivotek IB8377-H Overview

VIVOTEK’s IB8377-H is an outdoor-ready 4-Megapixel IR bullet network camera offering 30 fps at 2688x1520 superb image quality. Enabled with WDR Pro technology and a 2.8 ~ 12 mm vari-focal lens, the IB8377-H is capable of providing improved visibility in high contrast environments.

In order to adapt to constantly changing outdoor lighting conditions, the IB8377H features a removable IR-cut filter as well as IR illuminators effective up to 30 meters for superior image quality around the clock. The camera is also armed with a weather-proof IP66- and vandal proof IK10-rated housing, helping the camera body to withstand both harsh conditions and acts of vandalism.

The IB8377-H features VIVOTEK's sophisticated Smart Stream II technology, allowing the camera to optimize image quality for desired regions, and thus ensuring maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements.

With other advanced features such as video rotation, defog, a dedicated MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the all-in-one IB8377-H is ideal for various outdoor surveillance needs.
