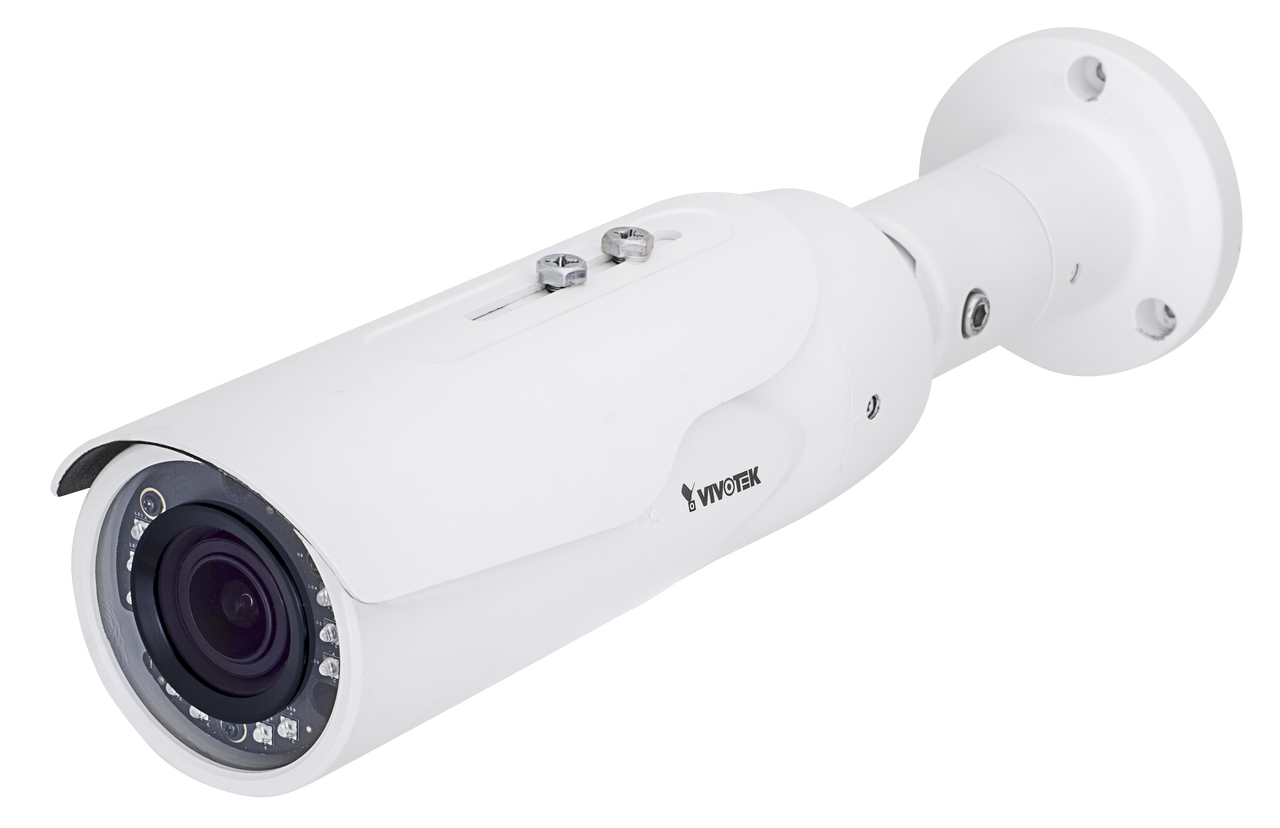

Vivotek IB8379-H 4MP Fixed Focal Bullet Network Camera

Replaced by the IB9389-H

Vivotek IB8377-H Features

• Max Resolution: 2688x1520 (4MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.1 Lux @ F1.4 (Color); 0.01 Lux @ F1.4 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: up to 30m with Smart IR
• Lens Type: Fixed focal
• Focal Length: f = 2.8mm / F1.8
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: DC-iris
• Focus: Manual
• Field of View: 114° (H); 61° (V); 132° (D)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 2688x1520 (without WDR Pro) 24 fps @ 2560x1440
• WDR Technology: WDR Pro (110 dB)
• Image Settings: Adjustable resolution, quality and bitrate; Smart Stream II, Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server, and SD card, File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated metal housing
• Dimensions: Ø 72 x 300 mm
• Weight: 1010 g (2.26 lb)

• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: 90%
• Power: IEEE 802.3af PoE Class 0 / Max. 8.5 W
• Warranty: 3 years
• What's Included: Camera, quick installation guide, alignment sticker, cable management bracket, screw pack, sunshield

Vivotek IB8379-H Overview

VIVOTEK’s IB8379-H is an outdoor-ready 4-Megapixel IR bullet network camera providing a superb quality resolution of 2688x1520 at 30 fps. Equipped with WDR Pro technology and a fixed 2.8 mm lens, the IB8379-H is capable of capturing clear and accurate video under high contrast environments.

Adapting to constantly changing outdoor lighting conditions, the IB8379-H features a removable IR-cut filter as well as IR illuminators effective up to 30 meters for superior image quality around the clock. For protection against harsh outdoor environments, the camera is armed with a weather-proof IP66- and vandal proof IK10-rated housing, making it withstand rain, dust and acts of vandalism.

The IB8379-H features VIVOTEK's sophisticated Smart Stream II technology, allowing the camera to optimize image quality for desired regions, and thus ensuring maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements.

The IB8379-H is an all-in-one full-functionality camera with video rotation, defog, a dedicated MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software. The IB8379-H is the ideal solution for diverse outdoor applications.
