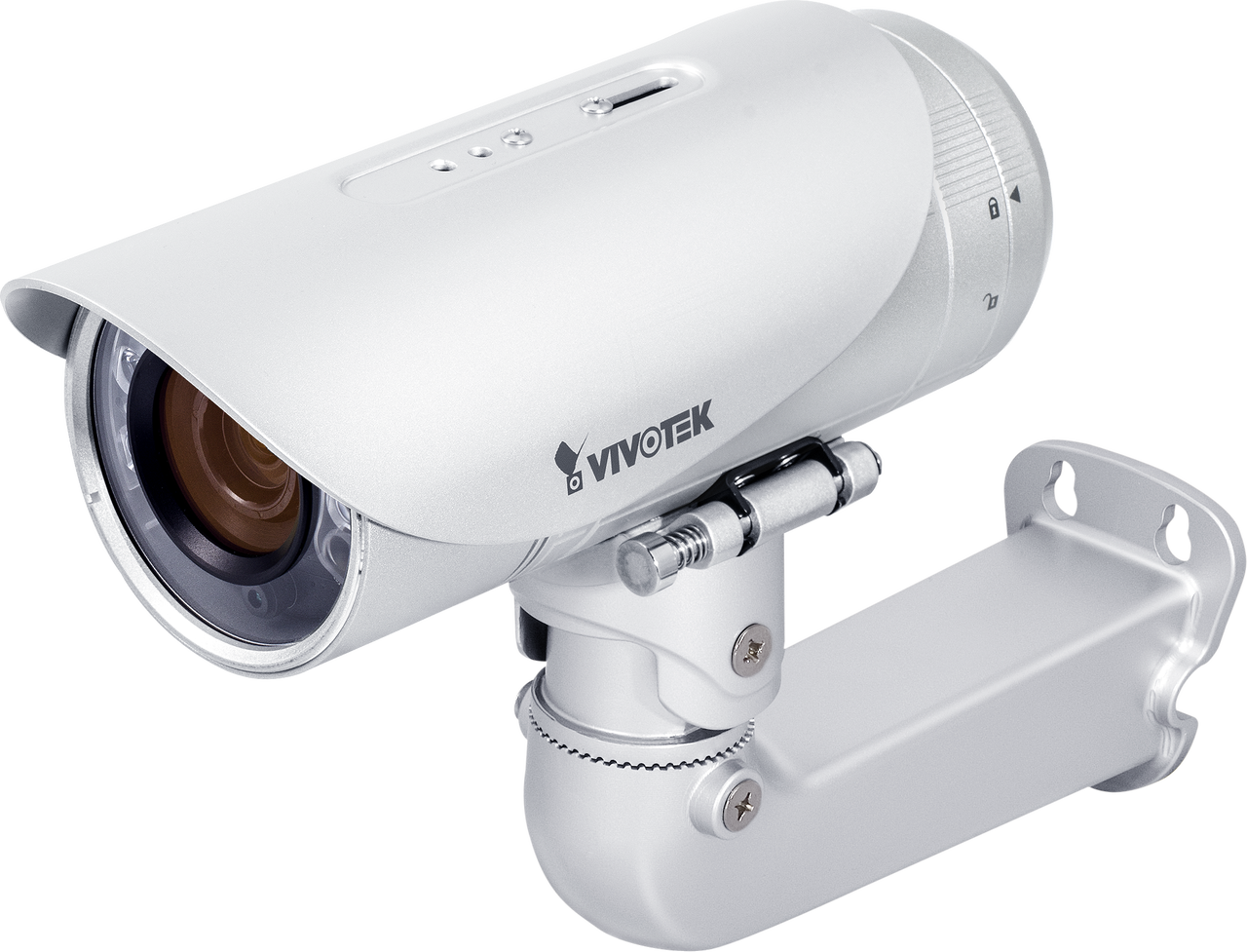

Vivotek IB8381-E 5MP Smart Focus Bullet Network Camera


Vivotek IB8381-E 5MP Smart Focus Bullet Network Camera

Sale price$935.00
SKU: IB8381-E


Discontinued; replaced by the IB8382-E.

Vivotek IB8381-E Features

  • Max Resolution: 2560x1920
  • Image Sensor: 1/3.2" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.22 Lux @ F1.2 (Color), 0.001 Lux @ F1.2 (B/W)
  • IR Illuminators: Yes, with Smart IR technology
  • IR Illuminator Range: up to 30m
  • Lens Type: Vari-focal
  • Focal Length: f = 3~ 9 mm / F1.2 ~ F2.3
  • Zoom: ePTZ, 48x digital zoom ( 4x on IE plug-in,12x built-in)
  • Iris: P-iris
  • Focus: Smart Focus System for Remote and Precise Focus Adjustment
  • Field of View: 28° ~ 82° (Horizontal), 21° ~ 61° (Vertical), 37° ~ 107° (Diagonal)
  • Compression Styles: H.264, MJPEG
  • Frame Rate: H.264: 25 fps at 2560x1920, 30 fps at 2112x1188, 30 fps at 1920x1080; MJPEG: 25 fps at 2560x1920, 30 fps at 2112x1188, 30 fps at 1920x1080
  • WDR Technology: WDR Enhanced
  • Image Settings: Adjustable resolution, quality and bitrate, Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, seamless recording, smart stream, 3D Noise Reduction
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two-way Audio (full duplex) with External microphone input & Audio output
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
  • ONVIF:Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP67-rated housing
  • Dimensions: Ø: 91 mm x 221 mm
  • Weight: 1,348 g (2.97 lb)
  • Operating Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
  • Operating Humidity: N/A
  • Power/Consumption: 24V AC, 12V DC, IEEE 802.3at PoE / Max. 22.4W (DC 12V), Max. 24.6W (AC 24V), Max. 23.46W (PoE)
  • Warranty: 3 Year
  • What's Included: Camera, sun shield, wall mount bracket, Wrench / RJ45 Female / Female Coupler / Double-sided Tape / Screws, alignment sticker/ dessicant bag, quick install guide, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software), warranty card, waterproof connector, Waterproof Connector for RJ45 Ethernet Enclosure

Vivotek IB8381-E Overview

VIVOTEK IB8381-E is a brand-new professional outdoor bullet network camera offering up to 25 fps @ 5-Megapixel or 30 fps @ 1080p resolution with superb image quality. Equipped with new image technology, IB8381-E provides excellent image quality with more details. Featuring 3D Noise Reduction technology and Smart Stream technology, IB8381-E can be used to optimize resolution on a desired object or area to maximize bandwidth usage. The IP67-rated housing is also designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Additionally, the wide temperature range further enhances the IP8381-E's performance and reliability in extremely cold and warm weather even with PoE.
