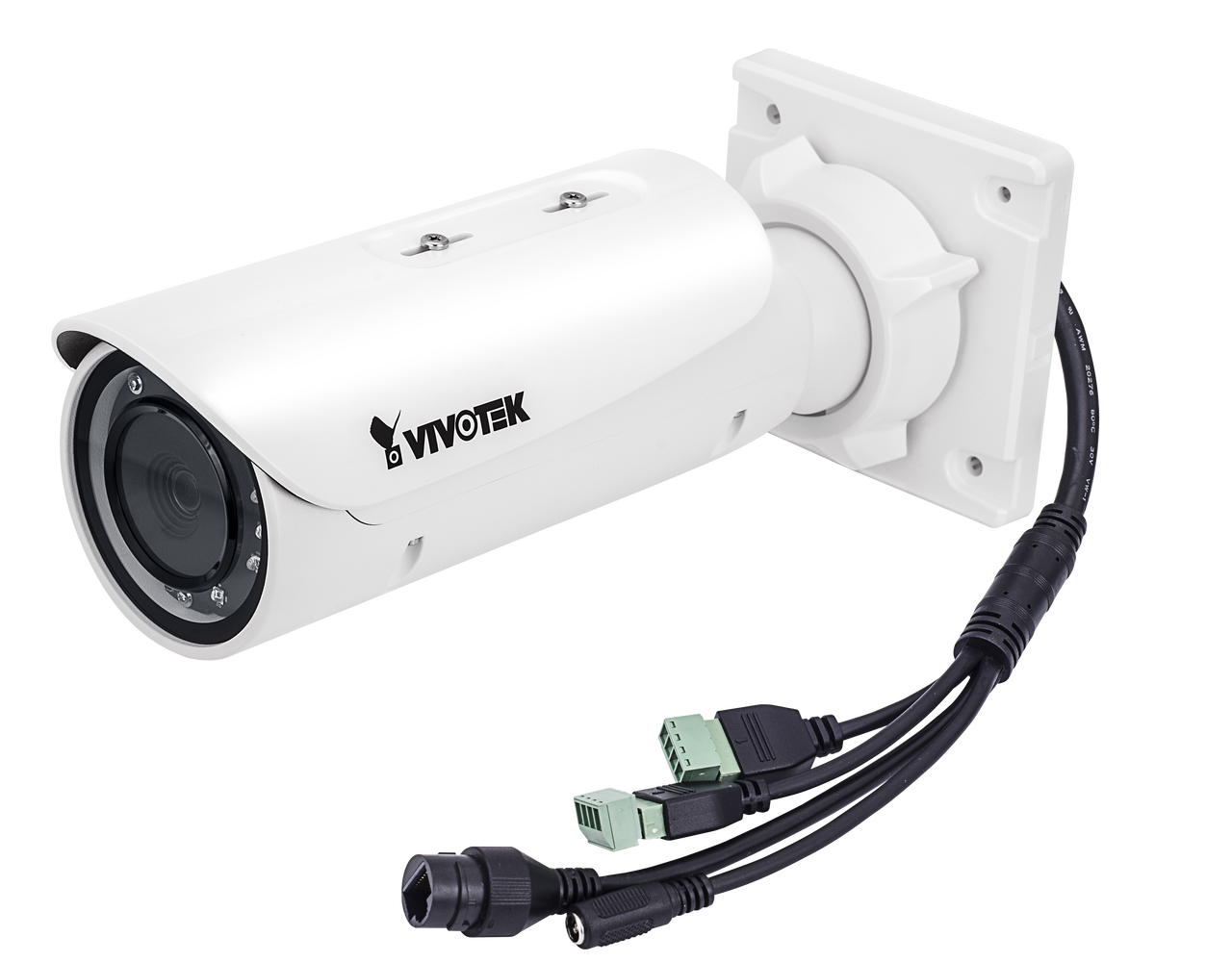

Vivotek IB8382-EF3 Extreme Weather 5MP Bullet Network Camera

Replaced by the IB9387-EH

Vivotek IB8382-EF3 Features

• Max Resolution: 2560x1920 (5MP)
• Image Sensor: 1/3.2" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.089 Lux @ F2.1 (Color) 0.001 Lux @ F2.1 (B/W)
• IR Illuminators: Yes, Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Fixed-focal
• Focal Length: f = 3.6 mm / F2.1
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: Auto
• Focus: Manual
• Field of View: 92° (Horizontal), 76° (Vertical), 105° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: H.264: 15 fps @ 2560x1920, 15 fps @ 2408x1536, 30 fps @ 1920x1080; MJPEG: 15 fps @ 2560x1920, 15 fps @ 2408x1536, 30 fps @ 1920x1080
• WDR Technology: Yes, WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate; Smart Stream, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, 3D noise reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via external microphone input & audio output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weather-proof, IK10 vandal-proof
• Dimensions: Ø 88 x 293 mm
• Weight: Net: 1264 g / 2.79 lb
• Operating Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: DC 12V or IEEE 802.3at PoE Class 4/ Max 9W (heater off), Max. 25W (Heater on)
• Warranty: 2 years
• What's Included: Camera, Quick installation guide, warranty card, sun shield, wall mount bracket, alignment sticker/desiccant bag, waterproof connector, screw pack, Software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek IB8382-EF3 Overview

VIVOTEK's IB8382-EF3 is a economic professional outdoor bullet network cameras in VIVTOTEK's 5MP Lite series which offer up to 15 fps at 5-Megapixel or 30 fps at 1080p resolution at a competitive price. Equipped with a new high resolution image sensor, different from other 5MP cameras, the IB8382-EF3 provides sharper image quality and finer detail at a cost-effective price. And with powerful 3D Noise Reduction technology and Smart Stream technology the IB8382-EF3 can also optimize resolution for a desired object or area to maximize efficiency of bandwidth usage. Increasing its simple operation, the IB8382-EF3 provides fixed focus without electrical power. To provide higher resolution in outdoor and harsh environments, VIVOTEK's IB8382-EF3 is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10-rated housing provides protection against acts of vandalism or other impacts. Additionally, a wide operating temperature range further improves the IB8382-EF3's performance and reliability in extremely cold or warm weather, even when using PoE. With the highly flexible VADP (VIVOTEK Application Development Platform), users can extend the features of this series by adding third-party applications for the IB8382-EF3. Thus the IB8382 series - IB8382-F3, IB8382-EF3, IB8382-T, IB8382-ET, is not only equipped with multiple focusing methods and wide temperature range options, is but ideal for a wide variety of applications.
