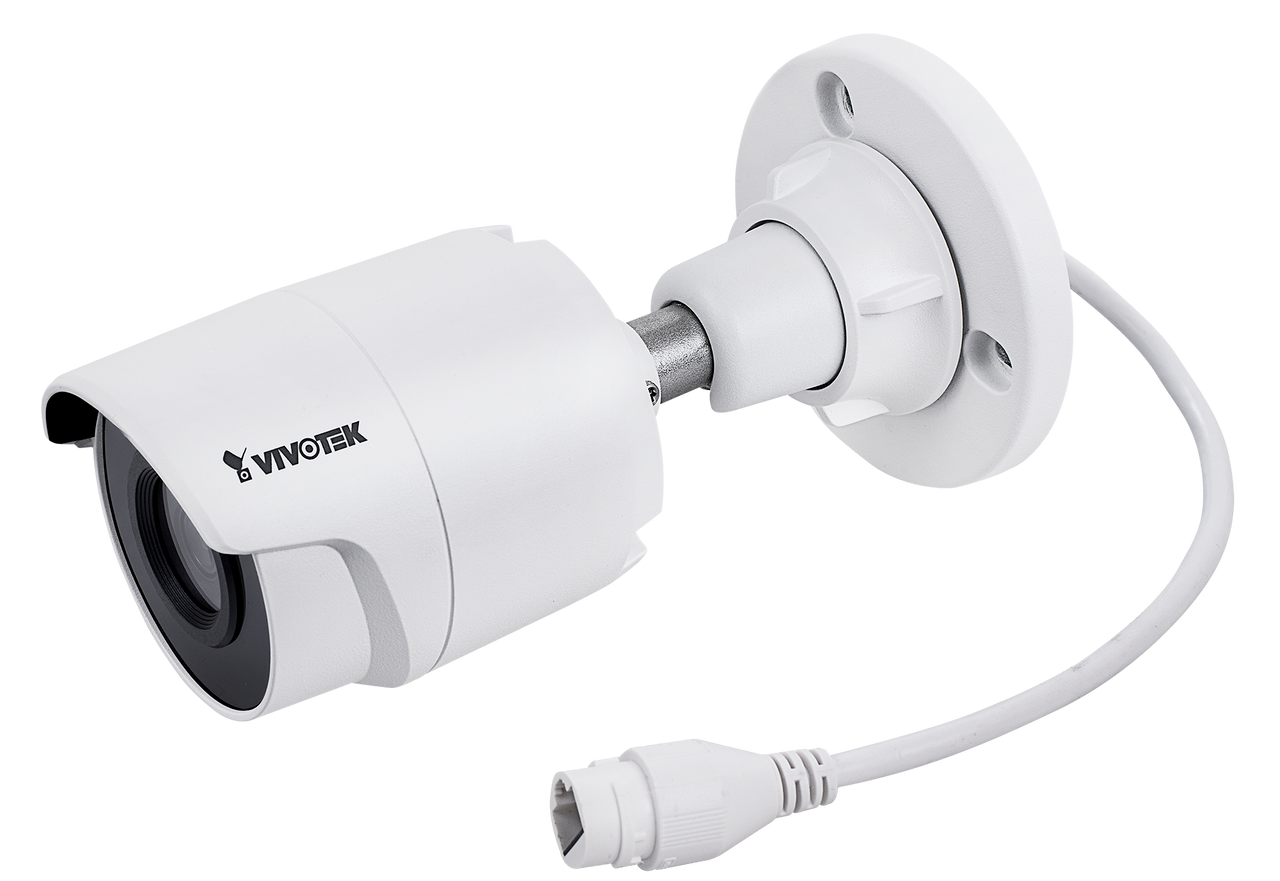

Vivotek IB9360-H 2MP 3.6mm Bullet Network Camera

Discontinued - Recommended Replacement: IB9369

Features

Camera Features

• Image Sensor 1/2.9" Progressive CMOS
• Max. Resolution 1920x1080 (2MP)
• Lens Type Fixed-focal
• Focal Length f = 3.6 mm
• Aperture F2.0
• Iris type Fixed-iris
• Field of View 81° (Horizontal), 44° (Vertical), 95° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Day/Night Yes
• Removable IR-cut filter Yes
• IR Illuminators Built-in IR Illuminators up to 30 meters with Smart IR, IR LED*2
• Minimum Illumination 0.065 lux @ F2.0 (Color), <0.005 lux @ F2.0 (B/W), 0 Lux with IR illumination on
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording

Video

• Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio 68 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation

Network

• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported

Intelligent Video

• Video Motion Detection Five-window video motion detection
• VADP Package Trend Micro IoT Security, Stratocast
• Alarm and Event
• Alarm Triggers Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
• Alarm Events Event notification via email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card

General

• Connectors RJ-45 cable connector for Network 10/100
• Mbps PoE connection*1
• LED Indicator System power and status indicator
• Power Input IEEE 802.3af PoE Class 2
• Power Consumption Max. 6.49 W (IR on), Max. 3.6 W (IR off)
• Dimensions Ø 91.1 x 176.8 mm
• Weight 530 g
• Casing IP66, IK10(Housing)
• Safety Certifications CE, FCC Class B, UL, LVD, VCCI, C-Tick
• Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F); Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
• Humidity 90%
• Warranty 24 months

Included Accessories

• Quick installation guide, alignment sticker, screw pack, cable gland

Overview

VIVOTEK’s IB9360-H is a H.265 outdoor bullet network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920x1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9360-H is capable of capturing high-quality imagery in both high contrast and low light environments.

The IB9360-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9360-H is encased in robust IP66 and IK10 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9360-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.
