Vivotek

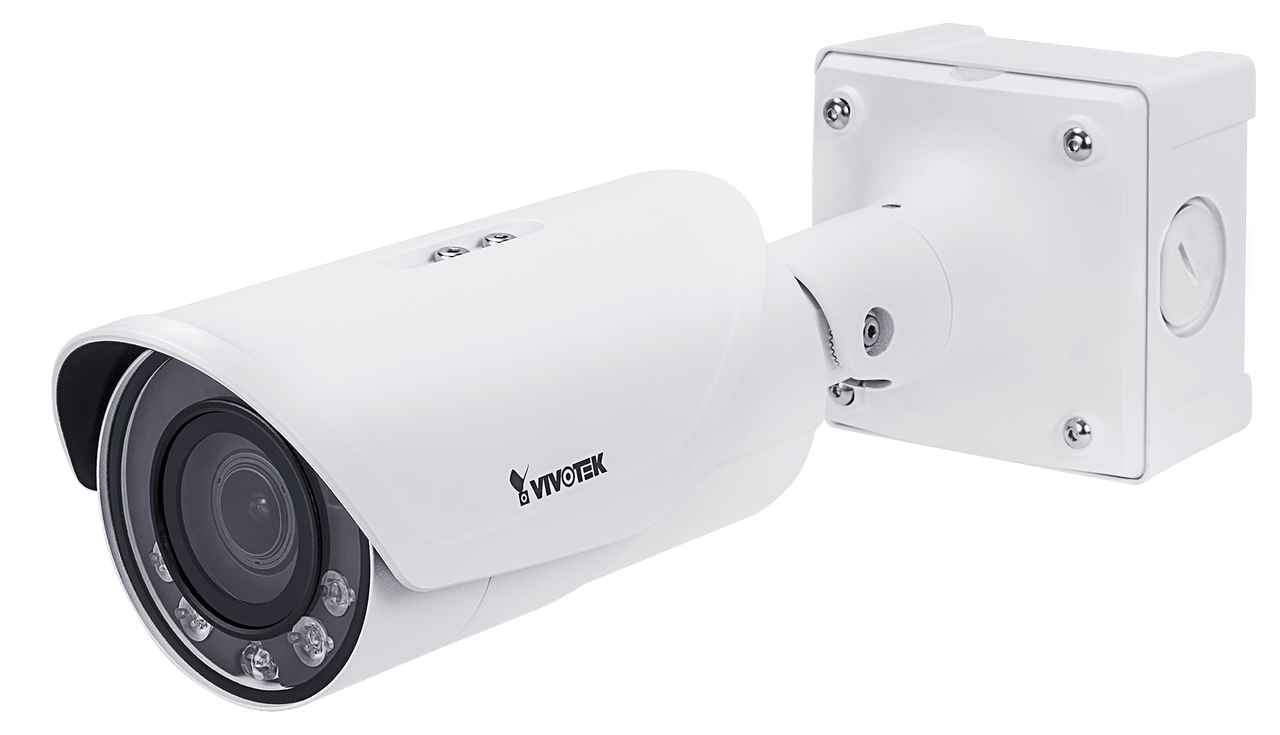

Vivotek IB9365-EHT (40mm) 2MP 60fps 50M IR Outdoor Bullet Camera
Quantity:
Choose options
Quantity:
Discontinued Recommended Replacement:
IB9365-HT-A(40mm)
Key Features
- 60 fps @ 1920x1080
- 4 ~ 9 mm / 12 ~ 40 mm, Remote Focus, P-iris Lens
- Smart Stream III to Optimize Bandwidth Efficiency
- SNV II (Supreme Night Visibility) for Low Light Conditions
- WDR Pro II (140dB) to Provide Extreme Visibility in Extremely Bright or Dark Environments
- Built-in IR Illuminators with Smart IR II Technology, Effective up to 100 Meters
- Smart Motion Detection to Reduce False Alarms
- Trend Micro IoT Security
- Weather-proof IP66/IP67, Vandal-proof IK10 and NEMA 4X-rated Housing
- -50°C ~ 60°C Wide Temperature Range for Extreme Weather Conditions
Overview
The IB9365-EHT is the new flagship outdoor bullet network camera from VIVOTEK, equipped with a full HD sensor capable of 1920x1080 resolution at 60 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the IB9365-EHT is capable of capturing the highest quality images in both low light and high contrast environments.
The IB9365-EHT also offers the best in night time surveillance technology. By adopting Smart IR II technology from VIVOTEK speed domes, the IB9365-EHT IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range up to 100 meters.
Additionally, the IB9365-EHT employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios. Protecting all these features is the IB9365-EHT's IP66, IP67, IK10 and NEMA 4X rated housing, capable of operating from -50°C to 60°C.
* Depending on scene.
The IB9365-EHT also offers the best in night time surveillance technology. By adopting Smart IR II technology from VIVOTEK speed domes, the IB9365-EHT IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range up to 100 meters.
Additionally, the IB9365-EHT employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios. Protecting all these features is the IB9365-EHT's IP66, IP67, IK10 and NEMA 4X rated housing, capable of operating from -50°C to 60°C.
* Depending on scene.
Technical Specifications
System Information
- Model
- IB9365-EHT
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128MB
- RAM
- 512MB
Camera Features
- Image Sensor
- 1/2" Progressive CMOS
- Max. Resolution
- 1920x1080 (2MP)
- Lens Type
- Motorized, Vari-focal, Remote Focus
- Focal Length
- IB9365-EHT(4-9mm): f = 4 ~ 9 mm (f = 3.5 ~ 11.4 mm, equivalent focal length @ 1/2.8")
IB9365-EHT(12-40mm): f = 12 ~ 40 mm
- Aperture
- IB9365-EHT(4-9mm): F1.3 ~ F2.2
IB9365-EHT(12-40mm): F1.8
- Auto-iris
- P-iris
- Field of View
- IB9365-EHT(4-9mm):
46° ~ 100° (Horizontal)
26° ~ 52° (Vertical)
53° ~ 120° (Diagonal)
IB9365-EHT(12-40mm):
12° ~ 35° (Horizontal)
7° ~ 19° (Vertical)
14° ~ 40° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro II
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- IB9365-EHT(4-9mm): Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*5
IB9365-EHT(12-40mm): Built-in IR illuminators, effective up to 100 meters with Smart IR II, IR LED*4
- Minimum Illumination
- IB9365-EHT (4-9mm):
0.01 Lux @ F1.3 (Color), 50IRE
0.002 Lux @ F1.3 (Color), 30IRE
<0.005 Lux @ F1.3 (B/W)
0 Lux with IR illumination on
IB9365-EHT(12-40mm):
0.06 Lux @ F1.8 (Color), 50IRE
0.03 Lux @ F1.8 (Color), 30IRE
<0.005 Lux @ F1.8 (B/W)
0 Lux with IR illumination on
- Tilt Range
- 90°
- Rotation Range
- 180°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage
- Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 60 fps @ 1920x1080
- Maximum Streams
- 4 simultaneous streams
- S/N Ratio
- 66 dB
- Dynamic Range
- 140 dB
- Video Streaming
- Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings
- Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight
compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog, deblur, metering
Audio
- Audio Capability
- Two-way Audio (full duplex)
- Audio Compression
- G.711, G.726
- Audio Interface
- External microphone input
External line output
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Supported, specification available at www.onvif.org
Solution Integration
- Smart Motion Detection
- Five-window video motion detection, people detection, time filter
- Smart VCA
- Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection
- VADP Package
- Trend Micro IoT Security, Deep Learning VCA (Smart Motion Detection, Smart VCA)
Alarm and Event
- Alarm Triggers
- Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events
- Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
AC 24 V
DC 12 V
Digital input *2
Digital output *2
BNC out
- LED Indicator
- System power and status indicator
- Power Input
- AC 24V, DC 12V, IEEE 802.3at PoE Class 4
- Power Consumption
- PoE: Max. 24.8/11.9 W (Heater on/off)
DC 12V: Max. 19.5/9 W (Heater on/off)
AC 24V: Max. 21.8/10.5 W (Heater on/off)
- Dimensions
- IB9365-EHT(4-9mm):
121 x 121 x 415 mm (w/ junction box)
121 x 121 x 351 mm (w/o junction box)
IB9365-EHT(12-40mm):
121 x 121 x 444 mm (w/ junction box)
121 x 121 x 380 mm (w/o junction box)
- Weight
- IB9365-EHT(4-9mm):
1,942 g (w/ junction box)
1,475 g (w/o junction box)
IB9365-EHT(12-40mm):
2,116 g (w/ junction box)
1,649 g (w/o junction box)
- Casing
- IP66, IP67, IK10 (Metal Housing), NEMA 4X
- Safety Certifications
- CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
- Operating Temperature
- Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Working Temperature (IR off): -50°C ~ 60°C (-58°F ~ 140°F)
Working Temperature (IR on): -50°C ~ 50°C (-58°F ~ 122°F)
- Humidity
- 90%
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
- Others
- Quick installation guide, warranty card, screw pack, alignment sticker, junction box (AM-719)*
* For USA and Canada markets, the junction box (AM-719) is not included.
