Vivotek IB9367-EH Features
Camera Features
- Image Sensor 1/2.8" Progressive CMOS
- Max. Resolution 1920x1080
- Lens Type Fixed-focus
- Focal Length f = 3.6 mm
- Aperture F1.6
- Auto-iris Fixed-iris
- Field of View 88° (Horizontal), 47° (Vertical), 104° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Removable IR-cut filter for day & night function
- Minimum Illumination 0.07 Lux @ F1.6 (Color), 0.001 Lux @ F1.6 (B/W), 0 Lux with IR illumination on
- Tilt Range 90°
- Rotation Range 180°
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
- IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
Video
- Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 1920x1080
- Maximum Streams 3 simultaneous streams
- S/N Ratio 58 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and constant bit rate control; Smart Stream III
- Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC
Audio
- Audio Capability Two-way audio
- Compression G.711, G.726
- Interface External Mic input
- External line output
Network
- Users Live viewing for up to 10 clients
- Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported, specification available at www.onvif.org
Intelligent Video
- Video Motion Detection Five-window video motion detection
Alarm and Event
- Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
- Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
General
- Connectors RJ-45 cable connector for Network 10/100 Mbps PoE connection, Audio Mic in, Audio line out, DC 12V, Digital input *1, Digital output *1
- LED Indicator System power and status indicator
- Power Input IB9367-EH: DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy)
- Power Consumption IB9367-EH: Max. 19W
- Dimensions 266 x 118 x 118 mm
- Weight 1,142 g (2.52 LB)
- Casing IP66, IP67, IK10 (Metal Housing)
- Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
- Operating Temperature IB9367-EH:
- Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
- Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
- Humidity 90%
- Warranty 24 Months
System Requirements
- Operating System Microsoft Windows 8/7
- Web Browser Mozilla Firefox 7~43 (streaming only)
- Internet Explorer 10/11
- Other Players VLC: 1.1.11 or above
- Quicktime: 7 or above
Included Accessories
- Quick installation guide, warranty card, screw pack, alignment sticker
Vivotek IB9367-EH Overview

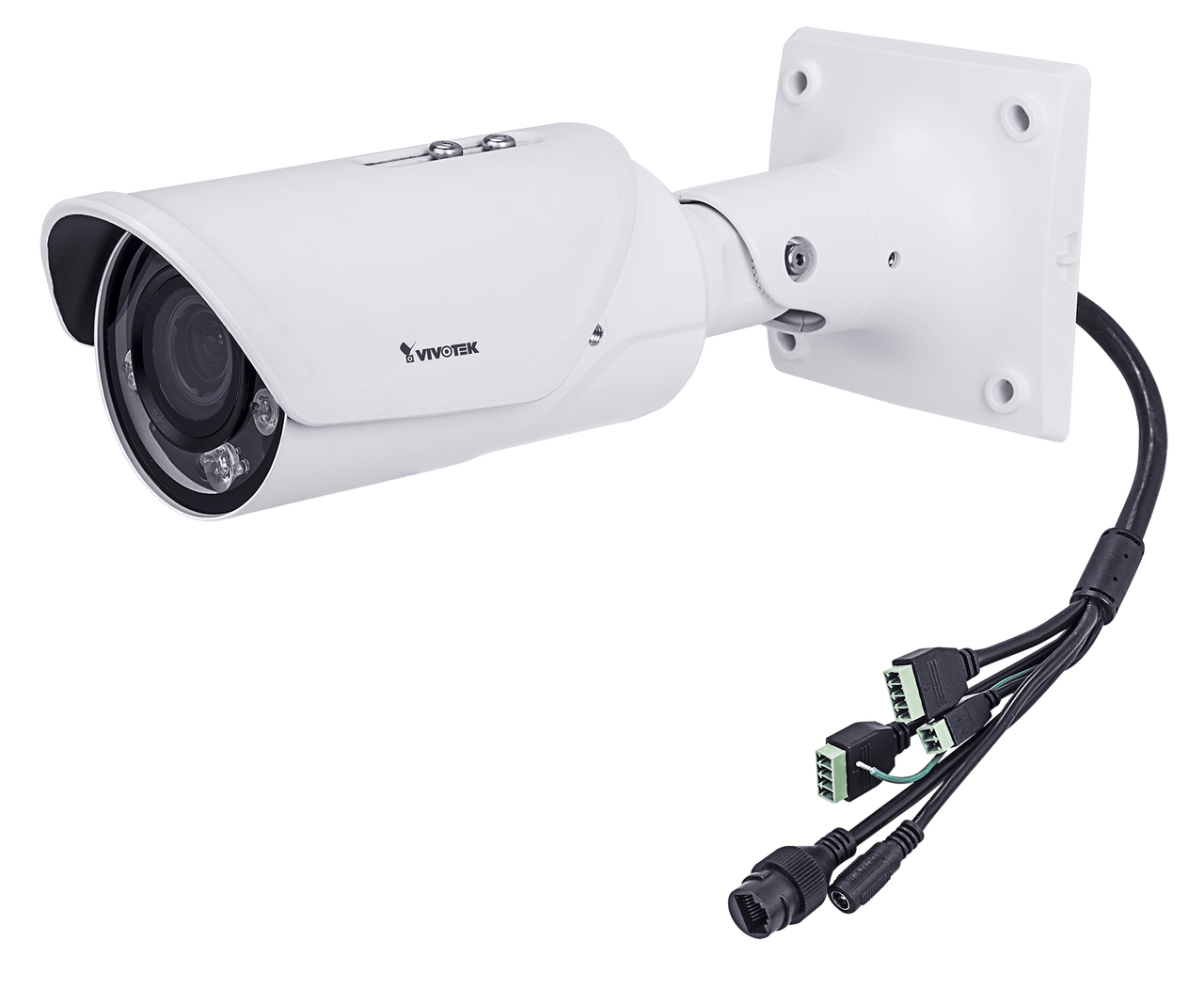

The IB9367-EH is the new professional outdoor IR bullet network camera from VIVOTEK, equipped with a full HD sensor capable of 1920x1080 resolution at 30 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the IB9367-H is capable of capturing the highest quality images in both low light and high contrast environments
The IB9367-EH also offers great image in night time by equipping IR illuminators with effective range up to 30 meters. With an IP66, IP67 and IK10 rated housing, the IB9367-EH is capable of operating under the harshest of conditions.
Additionally, the IB9367-EH employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios. Protecting all these features is the IB9367's IP66, IP67 and IK10 rated housing, capable of operating from -50°C to 50°C.
