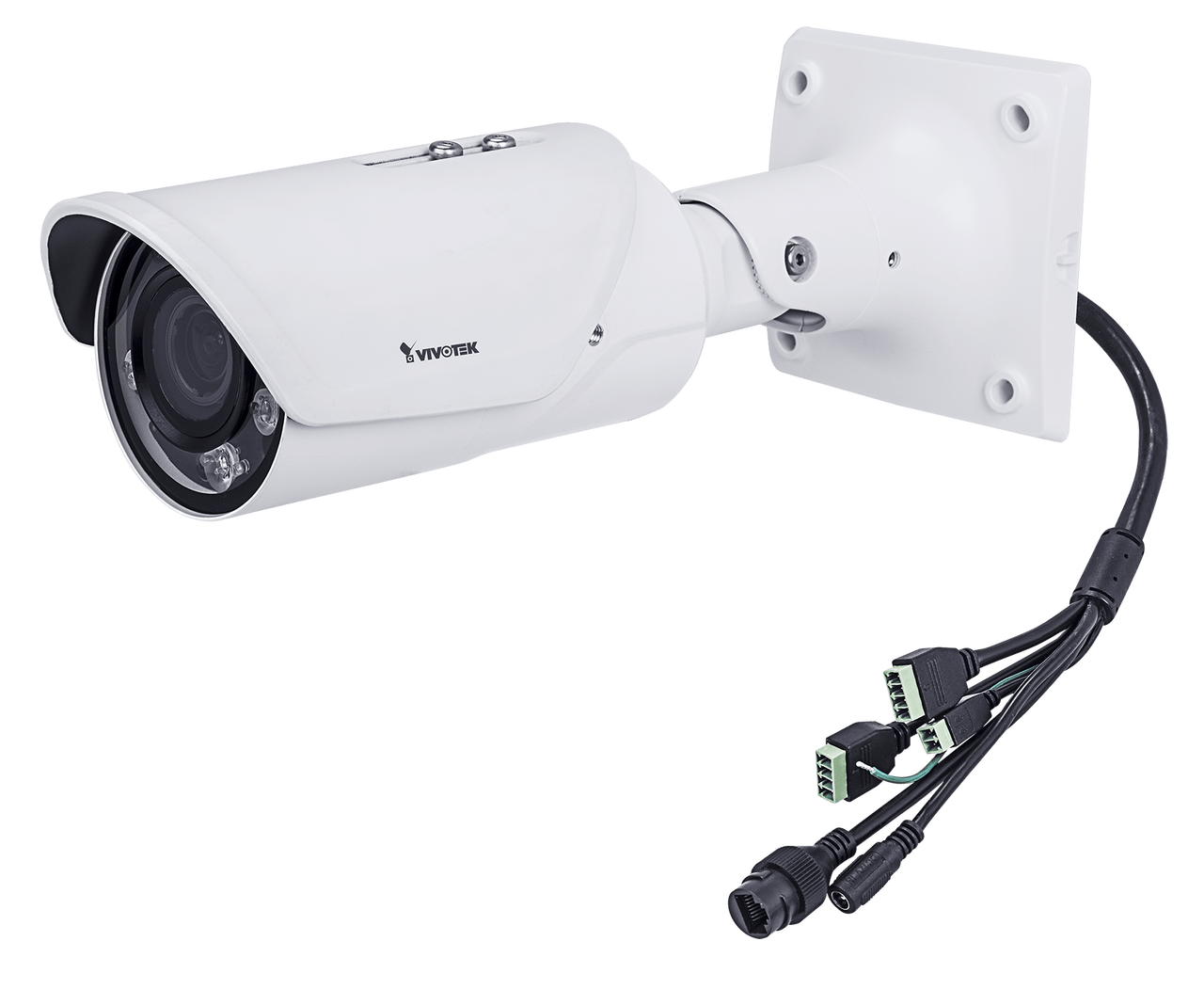

Vivotek IB9367-H 3.6mm 2MP H.265 Bullet Network Camera

Discontinued - Recommended Replacement: IB9367-EHT-v2

Vivotek IB9367-H Features

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.07 Lux @ F1.6 (Color), 0.001 Lux @ F1.6 (B/W), 0 Lux with IR illumination on
• IR Illuminators: Yes
• IR Illuminator Range: up to 30m with Smart IR
• Lens Type:Fixed focus
• Focal Length: f = 2.8 / F1.6
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: Auto-iris
• Focus: Remote Focus
• Field of View: 88° (Horizontal), 47° (Vertical), 104° (Diagonal)
• Compression Styles: H.265, H.264, MJPEG
• Max Frame Rate: 30 fps @ 1920x1080
• WDR Technology: WDR Pro 120dB
• Image Settings: Adjustable resolution, quality and constant bit rate control; Smart Stream III, Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports 2-way audio via external mic input & external line output
• Alarm/Event Management: Five-window motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy, Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated metal housing
• Dimensions: Ø 266 x 118 x 118 mm
• Weight: 1142 g (2.51 lb)

• Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
• Operating Humidity: 90%
• Power/Consumption: DC 12V or IEEE 802.3af PoE Class 0 / Max 7W
• Warranty: 3years
• What's Included: Camera, Quick installation guide, warranty card, screw pack, alignment sticker

Vivotek IB9367-H Overview

The IB9367-H is the new professional outdoor IR bullet network camera from VIVOTEK, equipped with a full HD sensor capable of 1920x1080 resolution at 30 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the IB9367-H is capable of capturing the highest quality images in both low light and high contrast environments.

The IB9367-H also offers great image in night time by equipping IR illuminators with effective range up to 30 meters. With an IP66, IP67 and IK10 rated housing, the IB9367-H is capable of operating under the harshest of conditions.

Additionally, the IB9367-H employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios.
