Discontinued - Recommended Replacement:
IB9367-EHT-v2
Vivotek IB9367-HT Features
- Max Resolution: 1920 x 1080 (2MP)
- Image Sensor: 1/2.8" Progressive CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: 0.07 Lux @ F1.4 (Color), 0.001 Lux @ F1.4 (B/W), 0 Lux with IR illumination on
- IR Illuminators: Yes
- IR Illuminator Range: up to 30m with Smart IR II
- Lens Type: Remote focus
- Focal Length: f = 2.8 ~ 12 mm / F1.4 ~ 2.8
- Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Iris: P-iris
- Focus: Remote Focus
- Field of View: 33° ~ 97° (Horizontal), 19° ~ 53° (Vertical), 38° ~ 114° (Diagonal)
- Compression Styles: H.265, H.264, MJPEG
- Max Frame Rate: 30 fps @ 1920x1080
- WDR Technology: Yes, WDR Pro 120dB
- Image Settings: Adjustable resolution, quality and constant bit rate control, Smart Stream III, Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Supports 2-way audio via external mic input & external line output
- Alarm/Event Management: Five-window motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy, Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
- ONVIF: Yes
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated metal housing
- Dimensions: Ø 294 x 118 x 118 mm
-
Weight: 1254 g (2.76 lb)
- Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
- Operating Humidity: 90%
- Power/Consumption: DC 12V, IEEE 802.3at PoE Class 4 / Max. 24 W
- Warranty: 3 years
- What's Included: Camera, Quick installation guide, warranty card, screw pack, alignment sticker

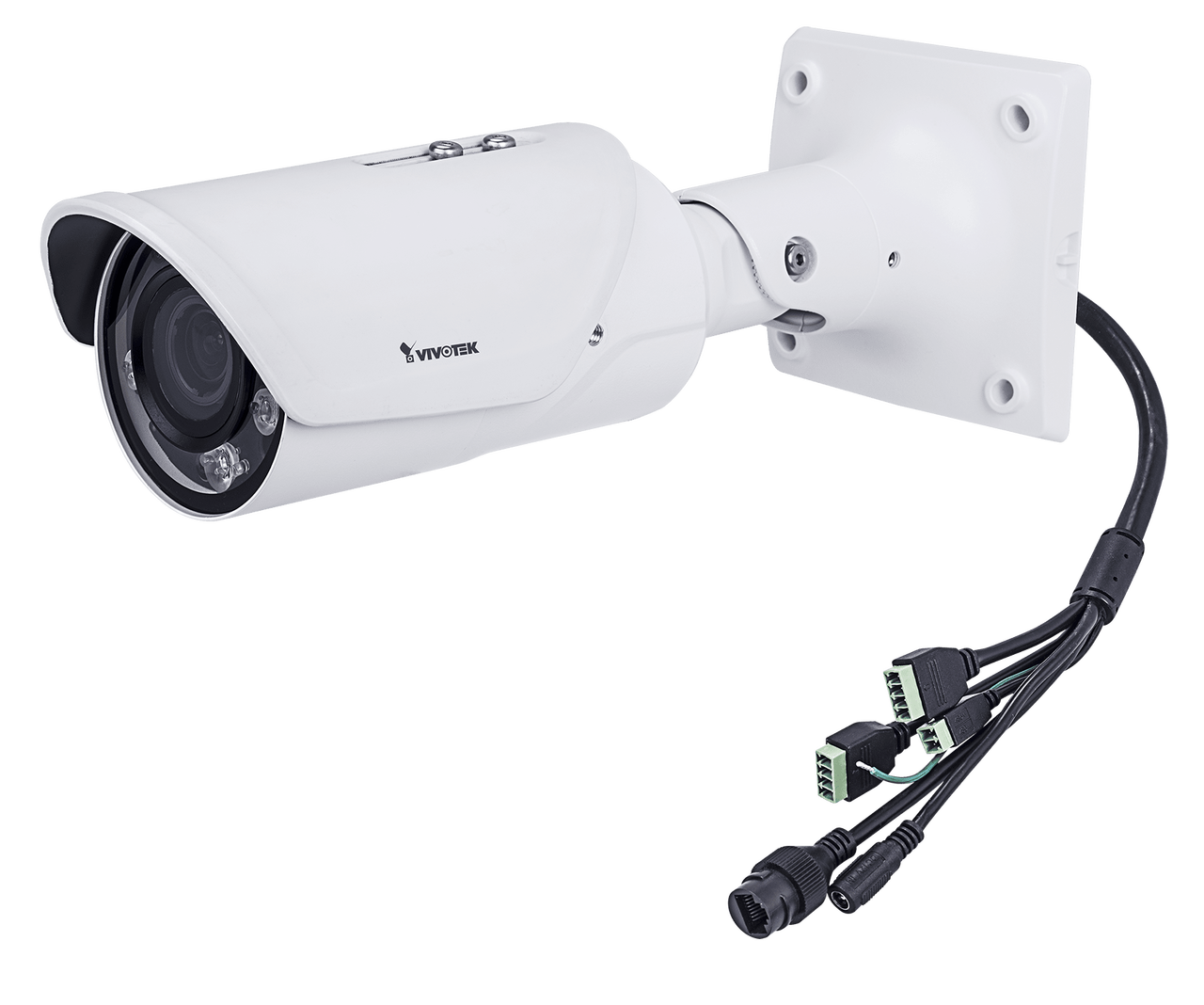

Vivotek IB9367-HT Overview
The IB9367-HT is the new professional outdoor IR bullet network camera from VIVOTEK, equipped with a full HD sensor capable of 1920x1080 resolution at 30 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the IB9367-HT is capable of capturing the highest quality images in both low light and high contrast environments.
The IB9367-HT also offers great image in night time surveillance technology. By adopting Smart IR II technology from VIVOTEK speed domes, the IB9367-HT IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range up to 30 meters.
Additionally, the IB9367-HT employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios. Protecting all these features is the IB9367's IP66, IP67 and IK10 rated housing, capable of operating from -30°C to 50°C.
