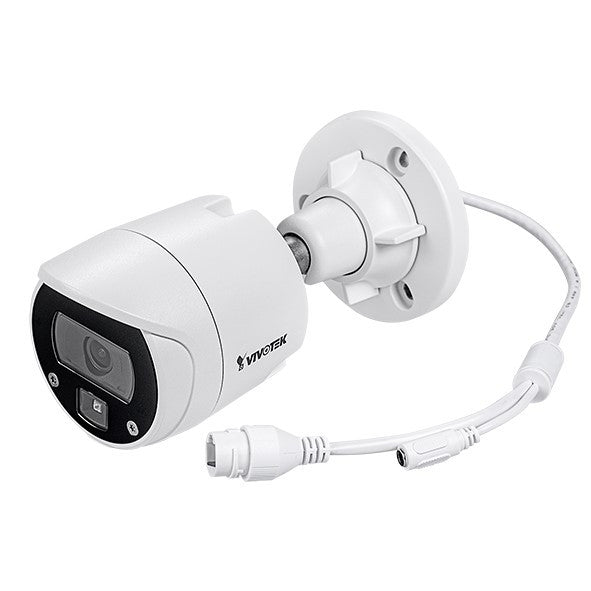

VIVOTEK IB9369 is an affordable outdoor dome network camera equipped with a 2M sensor enabling resolution of 1920x1080 at 30 fps. IB9369 offers fixed-focal lens for different user scenarios. IR illuminators are equipped with 30-meter effective range for better night visibility.
For harsh outdoor environment, IB9369 is encased in IP66 and IK10 housing. Two power input options are available: PoE (Power-over-Ethernet) and DC power, providing users with installation flexibility. In order to facilitate on-board storage and data portability, the camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording. Lastly the IB9369 uses H.265 compression technology, which helps to reduce bandwidth and storage consumption.
- H.265 Compression Technology
- 30 fps @ 1920x1080
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 30 Meters
- Smart IR Technology to Avoid Overexposure
- Smart Motion Detection to Reduce False Alarms
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
System Information
- Model
- IB9369 (2.8mm)
IB9369 (3.6mm)
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 256 MB
- RAM
- 256 MB
Camera Features
- Image Sensor
- 1/3.1" Progressive CMOS
- Max. Resolution
- 1920x1080 (2MP)
- Lens Type
- Fixed-focal
- Focal Length
- IB9369(2.8mm): f = 2.8 mm
IB9369(3.6mm): f = 3.6 mm
- Aperture
- IB9369(2.8mm): F2.0
IB9369(3.6mm): F2.2
- Iris Type
- Fixed iris
- Field of View
- IB9369(2.8mm):
118° (Horizontal)
65° (Vertical)
140° (Diagonal)
IB9369(3.6mm):
90° (Horizontal)
49° (Vertical)
106° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Enhanced
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1
- Minimum Illumination
- IB9369(2.8mm):
0.08 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
IB9369(3.6mm):
0.1 lux @ F2.2 (Color)
<0.005 lux @ F2.2 (B/W)
0 lux with IR illumination on
- Tilt Range
- 90°
- Rotation Range
- 180°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
- Storage
- Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 1920x1080
- Maximum Streams
- 2 video streams (Up to 7 configurable profiles)
- S/N Ratio
- 59 dB
- Dynamic Range
- WDR Support
- Video Streaming
- Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings
- General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator
Network
- Users
- Live viewing for up to 10 clients
- Security
- Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management
- Protocols
- 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
- Smart Motion Detection
- Five-window video motion detection, people detection, time filter
- VADP Package
- Smart Motion Detection
Alarm and Event
- Event Trigger
- Camera tampering detection, Manual trigger,Motion detection, Periodical trigger, Recording notification, SD card life expectancy, System boot
- Event Action
- Event notification via email, HTTP, FTP, SFTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, SFTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mbps Network/PoE connection
- LED Indicator
- System power and status indicator
- Power Input
- IEEE 802.3af Class 0 PoE, DC 12V
(Simultaneous Power Redundancy Supported)
- Power Consumption
- PoE:
Max. 6.49W/4W (IR on/off)
DC 12V:
Max. 5.1W/3.4W (IR on/off)
- Dimensions
- Ø 91.1 x 181.5 mm
- Weight
- 671 g
- Certifications
- EMC: CE (EN55032 Class A,EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003 issue 7,RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22); IA: BIS (IS 13252):BSMI;Environment: IK10 (IEC 62262), IP66 (IEC 60529)
- Operating Temperature
- Starting Temperature:
-30°C ~ 50°C (-22°F ~ 122°F)
Working Temperature:
-30°C ~ 55°C (-22°F ~ 131°F) (IR off)
-30°C ~ 50°C (-22°F ~ 122°F) (IR on)
- Humidity
- 95% RH (non-condensing)
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
Included Accessories
- Packing Contents
- Quick installation guide, alignment sticker, screw pack, cable gland
