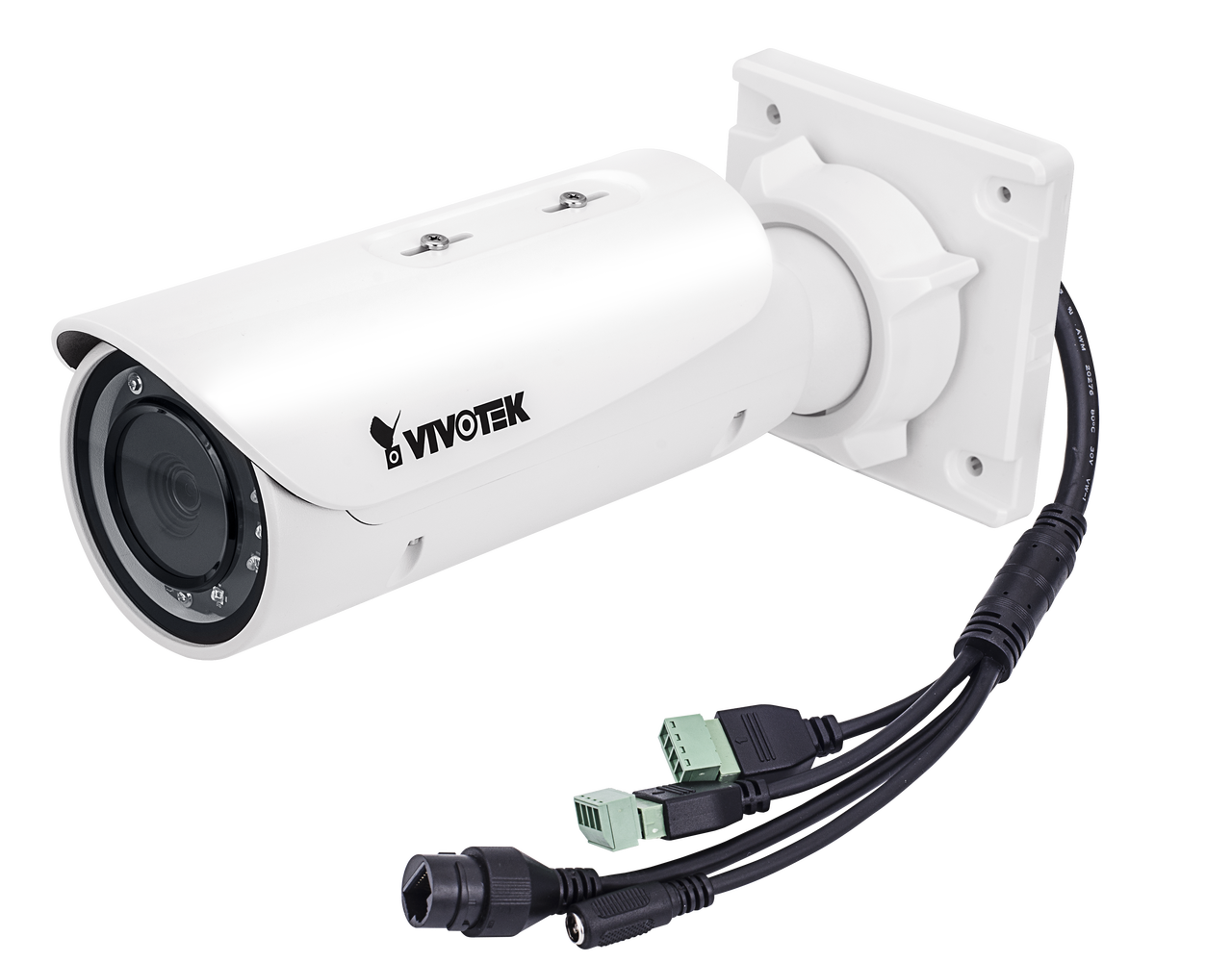

Vivotek IB9381-EHT 5MP H.265 Bullet Network Camera

Replaced by the IB9387-EHT

Vivotek IB9381-EHT Features

• Max Resolution: 2560x1920 (5MP)
• Image Sensor: 1/1.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.04 Lux @ F1.3 (Color) 0.001 Lux @ F1.3 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 4 ~ 9 mm / F1.2 ~ F2.3
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Remote Focus
• Field of View: 45° ~ 84° (Horizontal), 34° ~ 62° (Vertical), 64° ~ 113° (Diagonal)
• Compression Styles: H265 & H264 & MJPEG
• Frame Rate: H.265 & H.264: 30 fps @ 2560x1920, 60 fps @ 1920x1080; MJPEG: 12 fps @ 2560x1920, 30 fps @ 1920x1080
• WDR Technology: Yes, WDR Pro
• Image Settings: Adjustable resolution, quality and bitrate; Smart Stream II, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D noise reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via external microphone input & audio output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weather-proof, IK10 vandal-proof
• Dimensions: Ø 88 x 293 mm
• Weight: Net: 1193 g / 2.8 lb
• Operating Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
• Operating Humidity: 90%
• Power/Consumption: DC 12V or IEEE 802.3at PoE Class 4 / Max 25.5 W (Heater on)
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, sun shield, wall mount bracket, alignment sticker, desiccant bag, waterproof connector, screw pack, Software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek IB9381-EHT Overview

VIVOTEK's IB9381-EHT is a brand-new professional H.265 high-efficiency outdoor bullet network camera, offering 30 fps @ 5-Megapixel or 60 fps @ 1080p with outstanding image quality. By employing H.265 technology, the camera is able to provide higher and more efficient image compression rates than previous H.264 systems. In addition, VIVOTEK's sophisticated Smart Stream II technology enables the camera to optimize quality for desired regions and therefore to maximize efficiency of bandwidth usage. Combining both H.265 and Smart Stream II, the IB9381-EHT can reduce bandwidth and storage consumption by up to 80%* while retaining exceptional 5-Megapixel image quality. As a professional day/night camera, the IB9381-EHT is also equipped with WDR Pro and SNV, empowering users to enjoy superb image-detail in all lighting conditions. Additionally, robust IP66-rated housing ensures the ability of these advanced cameras to withstand rain and dust, thus guaranteeing smooth operation no matter how harsh the weather conditions. The cameras’ IK10-rated metal housing will also provide protection against acts of vandalism and other physical impacts. Finally, a wide operating temperature range further enhances the performance and reliability of the IB9381-EHT in both extremely cold and extremely warm weather, even while using PoE.
