Vivotek IB9387-EHT 5MP Remote Focus Varifocal Bullet Network Camera

Discontinued Recommended Replacement:

IB9387-EHT-A

Features

Camera Features

• Image Sensor 1/2.7" Progressive CMOS
• Max. Resolution 2560x1920 (5MP)
• Lens Type Remote focus
• Focal Length f = 2.7 ~ 13.5 mm
• Aperture F1.4 ~ F2.8
• Auto-iris P-iris
• Field of View 30° ~ 100° (Horizontal), 23° ~ 72° (Vertical), 38° ~ 135° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• Minimum Illumination 0.06 Lux @ F1.4 (Color), <0.01 Lux @ F1.4 (B/W), 0 Lux with IR illumination on
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

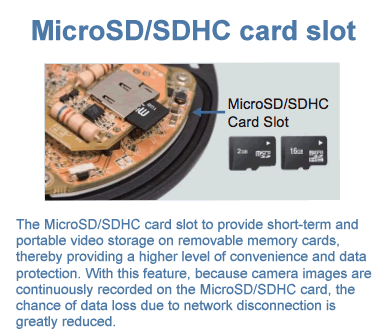

• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• WDR Technology WDR Pro
• Day/Night Yes

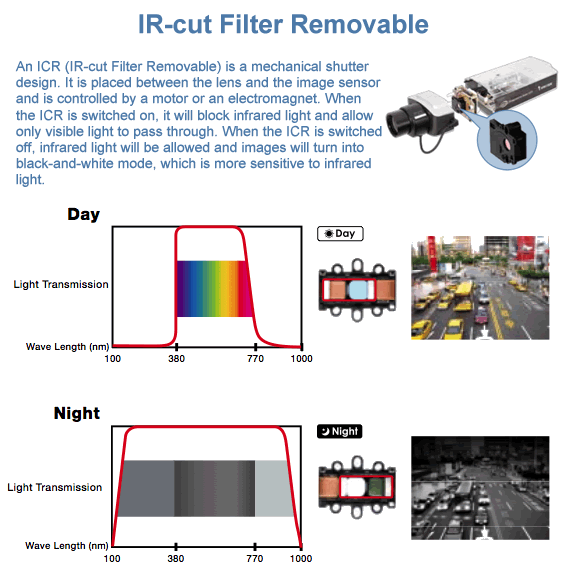

• Removable IR-cut Filter Yes
• IR Illuminators Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*6
• Rotation Range 180°

Video

• Video Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 2560x1920, 30 fps @ 2560x1440, 60 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio 50 dB
• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
• Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC
• Dynamic Range 120 dB

Audio

• Audio Capability Two-way Audio (full duplex)
• Audio Compression G.711, G.726
• Audio Interface External microphone input, External line output

Network

• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported

Intelligent Video

• VCA
• Standard VCA (optional)
• *Including line crossing detection, field detection, loitering detection
• Smart Motion Detection
• Five-window video motion detection, human detection, time filter
• VADP Package
• Genetec package, Trend Micro IoT Security, Stratocast, Smart Motion Detection

General

• Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection, Audio input, Audio output, AC 24V power input (optional), DC 12V power input, Digital input*1, Digital output*1, LED Indicator, System power and status indicator
• Power Input IEEE 802.3at PoE Class 4, DC 12V, AC 24V (optional) (Redundant Power)
• Power Consumption PoE: Max. 23.3/12 W (Heater on/off), DC 12V: Max. 19/10 W (Heater on/off), AC 24V: Max. 21.8/11.5 W (Heater on/off)
• Dimensions 118 x 118 x 294 mm
• Weight 1,254 g
• Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
• Operating Temperature Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F), Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F)
• Humidity 90%
• Warranty 36 months
• Casing IP66, IP67, IK10 (Metal Housing)

Included Accessories

• Quick installation guide, warranty card, screw pack, alignment sticker

Alarm and Event

• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

Overview

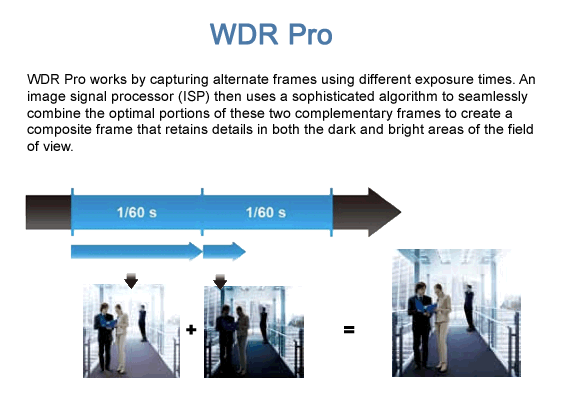

The IB9387 is a series of outdoor bullet network cameras offering up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb image quality at all resolutions or frame rates. Featuring VIVOTEK SNV and WDR Pro technology, the IB9387 series is capable of capturing high-quality imagery whether in high contrast or low light environment.

The IR illuminator is equipped with 30-meter effective range for better night visibility. In order to maintain operation even in harsh outdoor environments, the IB9387 series is encased in IP66, IP67, IK10 housing, rendering it impervious to rain and dust.

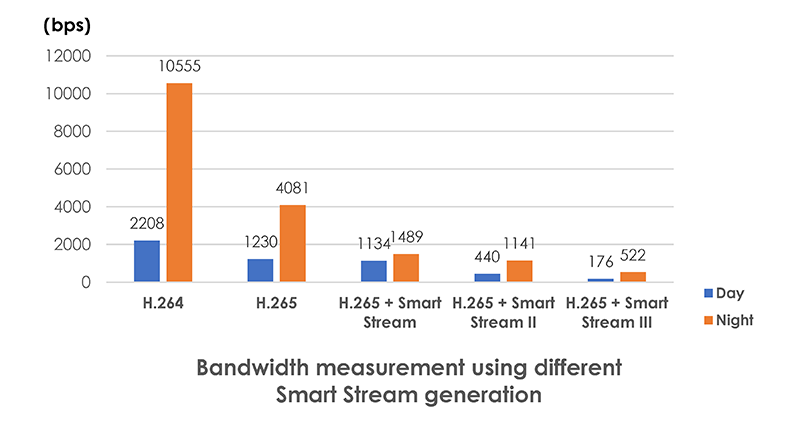

Employing VIVOTEK's Smart Stream III technology and H.265 compression codec support, the IB9387 series reduces bandwidth by up to 90% while retaining impressive image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize operation to match a range of applications and scenarios.
