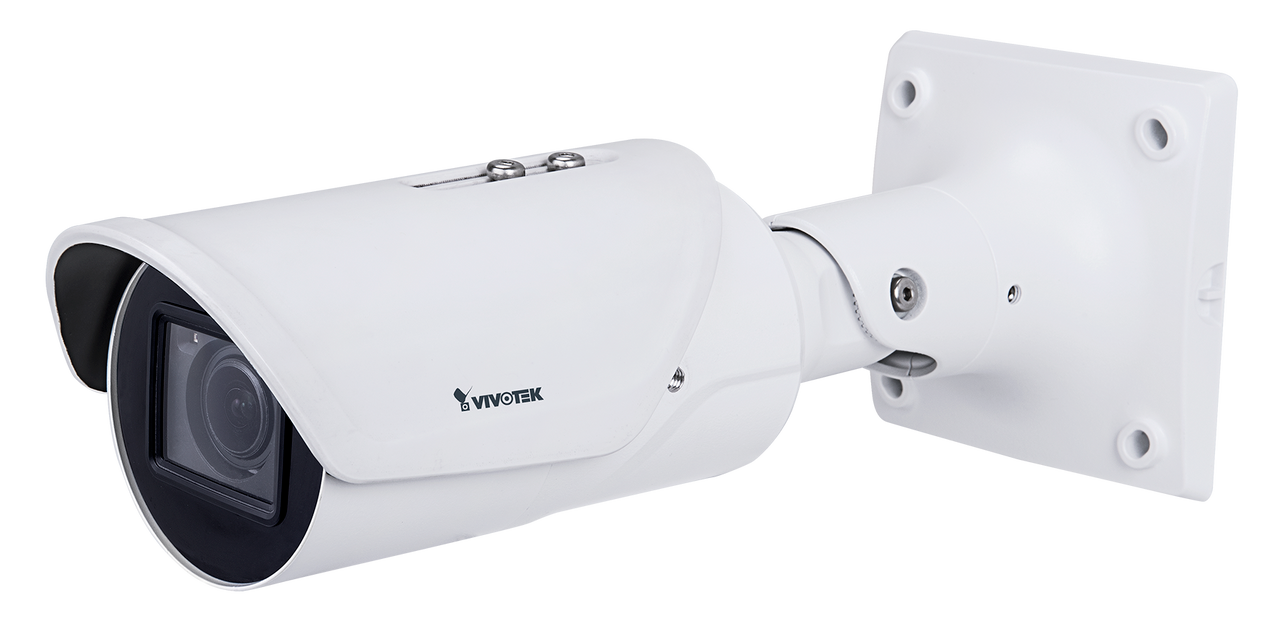

Vivotek IB9387-EHT-A 5MP Remote Focus Bullet Network Camera
Discontinued - Recommended Replacement: IB9387-EHTV-v3 (2.7-13.5 mm) or IB9389-EHT-v2
Vivotek IB9387-EHT-A Features
Camera Features
- Image Sensor 1/2.7" Progressive CMOS
- Max. Resolution 2560x1920 (5MP)
- Lens Type Motorized, Vari-focal, Remote Focus
- Focal Length f = 2.7 ~ 13.5 mm
- Aperture F1.4 ~ 2.8
- Auto-iris P-iris
- Field of View 30° ~ 100° (Horizontal), 23° ~ 72° (Vertical), 38° ~ 135° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators up to 50 meters with Smart IR II, IR LED*6
- Minimum Illumination 0.075 Lux @ F1.4 (Color), <0.01 lux @ F1.4 (B/W), 0 Lux with IR illumination on
- Tilt Range 90°
- Rotation Range 180°
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
Video
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 2560x1920 (WDR Pro on), 30 fps @ 2560x1440 (WDR Pro on), 60 fps @ 1920x1080 (WDR Pro off)
- Maximum Streams 3 simultaneous streams
- S/N Ratio 57 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III
- Image Settings Time stamp, text overlay, flip and mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, HLC, defog, 3DNR, video rotation, EIS
Audio
- Audio Capability Two-way Audio (full duplex)
- Audio Compression G.711, G.726
- Audio Interface External microphone input, External line output
Network
- Users Live viewing for up to 10 clients
- Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported
Solution Integration
- Smart Motion Detection Five-window video motion detection, people detection, time filter
- Smart VCA Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection
- VADP Package Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security
Alarm and Event
- Alarm Triggers Motion detection, digital input, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, shock detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection, Audio input, Audio output, AC 24V power input, DC 12V power input, Digital input *2, Digital output *2, BNC out
- LED Indicator System power and status indicator
- Power Input AC 24V, DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy)
- Power Consumption PoE: Max. 25/20 W (IR on/off), DC 12V: MaX. 20.4/15 W (IR on/off), AC 24V: Max. 22/17 W (IR on/off)
- Dimensions Ø 118 x 118 x 294.6 mm
- Weight 1,254 g
- Casing IP66, IP67, IK10 (Metal Housing)
- Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
- Operating Temperature Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F), Working Temperature(IR on): -50°C ~ 50°C (-58°F ~ 122°F), Working Temperature(IR off): -50°C ~ 60°C (-58°F ~ 140°F)
- Humidity 98%
- Warranty 36 months
Included Accessories
- Quick installation guide, warranty card, screw pack, alignment sticker, desiccant bag, waterproof accessory bag, sunshieLD
Please note: The -A indicates products that are National Defense Authorization Act compliant. We have a link to Vivotek's full statement and compliant products list under the Data Sheets & Manuals tab.
Vivotek IB9387-EHT-A Overview
VIVOTEK IB9387-A is a series of outdoor bullet network cameras offering up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb image quality at all resolutions or frame rates. Featuring VIVOTEK SNV and WDR Pro technology, IB9387-A Series is capable of capturing high quality image whether in high contrast or low light environment.
The IB9387-A series offers remote focus lens for different user scenario. The IR illuminators are equipped with 50 meter effective range for better night visibility. For harsh outdoor environment, IB9387-A series is encased in IP66, IP67 and IK10 housing, making it impervious to rain and dust.
Employing VIVOTEK's smart stream III technology and H.265 codec support, the IB9387-A Series reduces bandwidth up to 90%* while keeping great image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized application for various application and user scenarios.
The IB9387-A series also now includes a new wave of advanced Video Content Analysis (VCA) - Smart VCA, including intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection. These features are the next steps in elevating surveillance cameras from image capturing devices to advanced notification instruments, allowing users to see more in smarter ways.
