Discontinued - Recommended Replacement: IB9387-LPR-v2
Features
Camera Features
- Image Sensor 1/2.7" Progressive CMOS
- Max. Resolution 2560x1920 (5MP)
- Lens Type Motorized, Vari-focal, Remote Focus
- Focal Length f = 2.7 ~ 13.5 mm
- Aperture F1.4 ~ F2.8
- Auto-iris P-iris
- Field of View 30° ~ 100° (Horizontal) / 23° ~ 72° (Vertical) / 38° ~ 135° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro (120 dB)
- Day/Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*6
- Minimum Illumination 0.06 Lux @ F1.4 (Color), <0.01 Lux @ F1.4 (B/W), 0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage
- Built-in 16GB MicroSD card for LPR images
- Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
Video
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 2560x1920, 30 fps @ 2560x1440, 60 fps @ 1920x1080
- Maximum Streams 3 simultaneous streams
- S/N Ratio 50 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog
Audio
- Audio Capability Two-way Audio (full duplex)
- Audio Compression G.711, G.726
- Audio Interface External microphone input, External line output
Network
- Users Live viewing for up to 10 clients
- Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported
Solution Integration
- Video Motion Detection Five-window video motion detection
- Embedded Software VIVOTEK ANPR, VADP Package, Genetec package, Trend Micro IoT Security
Alarm and Event
- Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events
Camera: Event notification via digital output, audio clip, email, HTTP, FTP, NAS server, SD card, push notification, File upload via email, HTTP, FTP, NAS server, SD card
ANPR Software: Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, send event to Milestone VMS, send event to Wiegand middleware board
General
- Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection, Audio input, Audio output, AC 24V power input (optional), DC 12V power input, Digital input*1, Digital output*1
- LED Indicator System power and status indicator
- Power Input IEEE 802.3af PoE Class 0, DC 12V, AC 24V (optional, Redundant Power)
- Power Consumption PoE: Max. 12 W, DC 12V: Max. 10 W, AC 24V: Max. 11.5 W Dimensions 118 x 118 x 294 mm
- Weight 1,254 g (2.76 lb)
- Casing IP66, IP67, IK10 (Metal Housing)
- Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
- Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F), Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
- Humidity 90%
- Warranty 36 months
Included Accessories
- Quick installation guide, warranty card, screw pack, alignment sticker
Overview

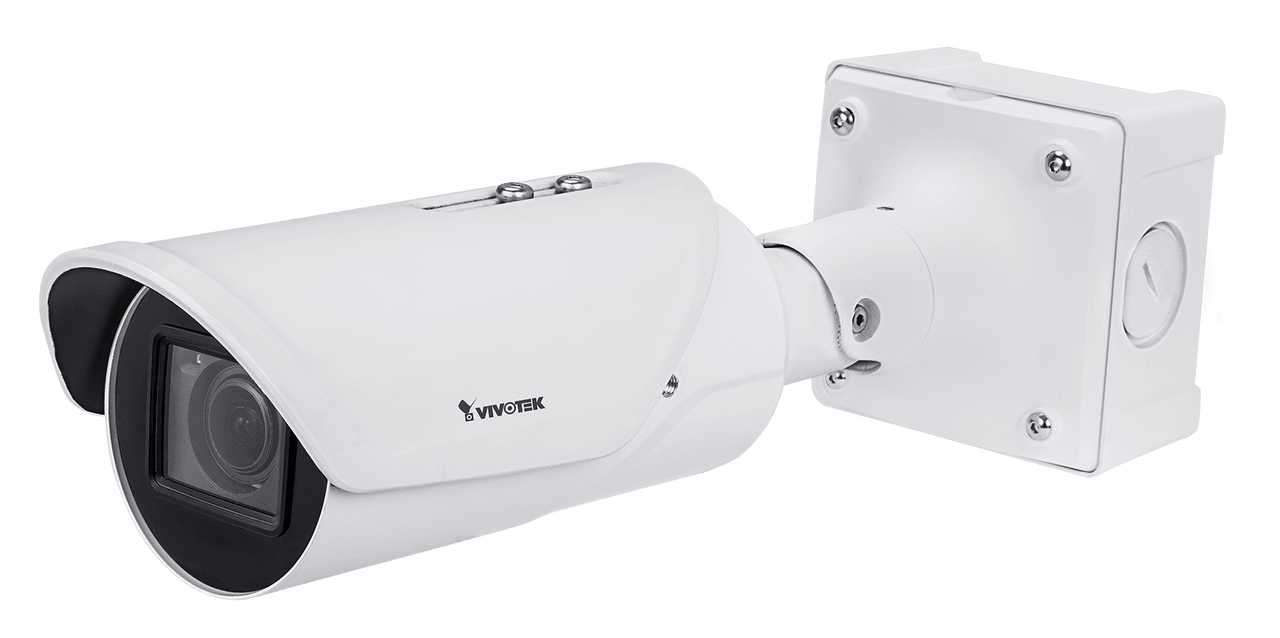

VIVOTEK’s IB9387-LPR camera is a standalone LPR camera system, featuring built-in license plate recognition software as well as a white-lists and black-lists for advanced license plate verification. It can read multiple countries or states at the same time, e.g. Singapore and Malaysia; Texas, Oklahoma and the neighboring states. It converts number plates into Wiegand signals for use with an access control system, and also offers various APIs for integration with 3rd party systems such as parking management, toll collection, and weighbridge systems. The system is ideally applied for parking access control and Stop & Go toll systems.
