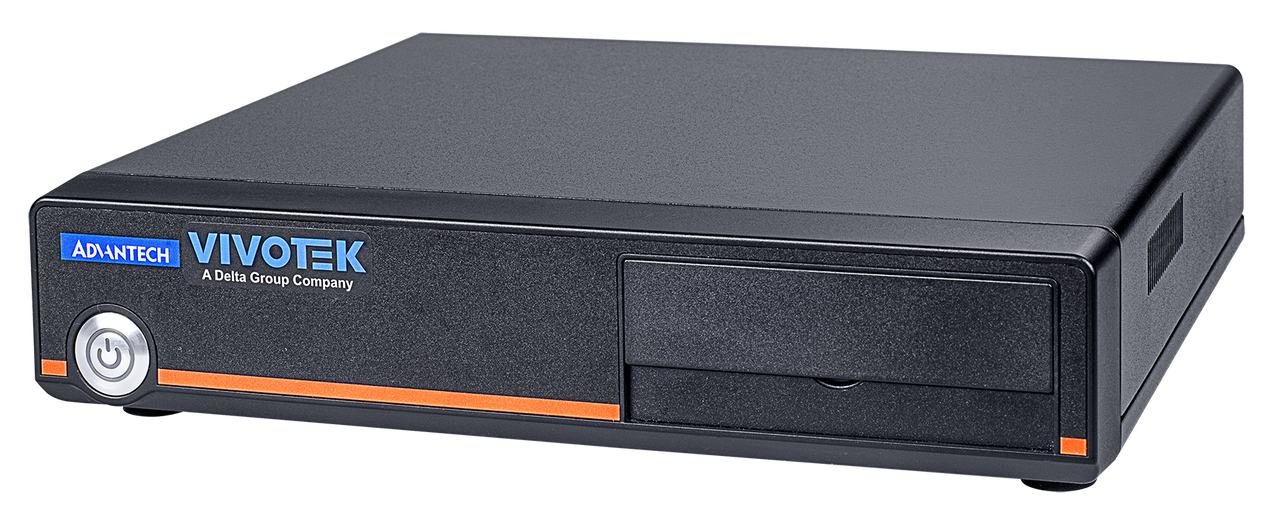

Vivotek IE9232-F Facial Recognition Workstation

Sale price$3,886.50
SKU: IE9232-F
Quantity:

Contact

  • Mask Detection and Recognition
  • Enroll a Person's Profile with up to 5 Pictures
  • Real-time Notifications and Alerts
  • Persons of Interest (POI) Management
  • Comprehensive Reports
  • Support up to 6 Cameras/Servers

System Architecture

Product Information
Model
IE9232-F
Hardware
Intel CPU: i7, Memory: DDR4 32GB RAM, HDD: 2.5" 500GB SSD
OS
Linux
Maximum Number of Faces in Database
50,000
Network
10/100Mb/1Gb Network
Maximum Number of Devices Connecting
(Build-in 1CH) Up to: 6
Power Input
100-240V AC
Power Consumption
Max. 90W
Dimensions
240 x 210 x 57 mm (LWH)
Weight
Weight: 1.3 kg net and 2.1 kg gross
Saftity Certifications
CE, FCC, UL, CB, BSMI
System
Architecture
Three Tier Server-client system:
· Web Server
· Application Server
· Database Server
Supported OS
Ubuntu Server 20.04
Supported Protocols
HTTP & HTTPS
Supported Hypervisors
VMWare, Hyper-V, Virtual Box
Container Type
Docker
Database Type
MongoDB
System Security
· Single device login
· Renewable session token
· Hardened HTTPS
Management Interface
Interface
Using Web client
Supported Browsers
· Google Chrome
· Mozilla Firefox
Languages
· English
· Traditional Chinese
Supported Image Sources
Supported IP Cameras
· Any H.264/H.265 RTSP IP Camera
Video Sources Configuration
Region of Interest (ROI)
Setup ROI area for face capture
Face Capture Parameters
· Minimum capture face size
· Frame capture interval
· Side face filter
· Biggest face only filter
Face Verification Parameters
· Minimum face recognition threshold
· Merge recognized faces interval
Environmental Adaptability
Camera Installation Height
· 3.0 meters max. camera height
· Mounting position within 10 degrees inclination
Supported Image Modes
Color & Monochrome
Robust Against
· Large expressions
· Beard and hairstyles
· Eyeglasses
· Caps and scarfs
· Irregular lighting
· Partial face occlusion
Supported Devices & Integrations
I/O Relay
· Moxa E1214
· Advantech ADAM 60XX
· VIVOTEK AO-20W I/O Device
IP-to-Wiegand Converter
· Doorcard DCT-4TW26
· VIVOTEK AO-20W Wiegand Box
HTTP Notifications
Send customized GET/POST HTTP messages
Others
· Use VAST Face RESTful API
Persons of Interest Management (POI)
POI Management
· Enroll person using Web client
· Manage face profiles database through Web Portal
POI Authentication
· Using Face as a credential
· Using Card Number
POI Groups
· Default groups: VIP, Blacklist, Staff
· User defined person groups
POI Batch Enrollment
Supports bulk enrollment using Excel & .JPEG files
Enrollment Photo
· Min. face size = 200 x 200 pixel
Requirements
· 1MB Max. photo size (.JPG or .PNG)
POI Profile Information
· Name, ID #, card #, job position, email, phone, POI group(s), and expiration date
POI Reports
Investigation Reports
Generate face recognition reports and filter events by:
· Location
· Time period
· Person’s name
· POI Group
· POI type (enrolled or stranger)
Attendance Reports
Generate staff clocking reports and filter events by:
· Clock-in time
· Clock-out time
· Stay length
· Late Arrival
· Early Leave
Actions Reports
Generate a report for which pre-defined actions were triggered in response to an event
Export Data
Export results to Excel file
Trigger Rules and System Actions
Rule Engine
Rule based engine to trigger single or multiple system actions based on:
· Event Location
· Schedule
· Detection time period
· Specific POI profile
· POI face group affiliation
· Person type (enrolled or stranger)
· POI is (not) a member of a group
Supported System Actions
· Trigger I/O Relay
· Trigger IP-to-Wiegand converter
· Send HTTP GET/POST command
· WebSocket notification
System Users Management
System Users
Register user accounts using Name, E-Mail address & Phone number
System User Groups
· System Administrator
· Super User
· Person Manager
System Inter-Compatibility
Supported Products
· VIVOTEK VAST2 VMS/CMS
· VIVOTEK VAST Face Manager/CMS
Face Recognition Verticals
Possible Applications
· Identify potential troublemakers (shoplifters, criminals or any other barred individuals)
· Detect VIP members upon arrival to deliver a tailored experience
· Provide physical entry to commercial buildings, residences, and other rooms
· Contactless staff clock in system
· Verify visitor’s identity
