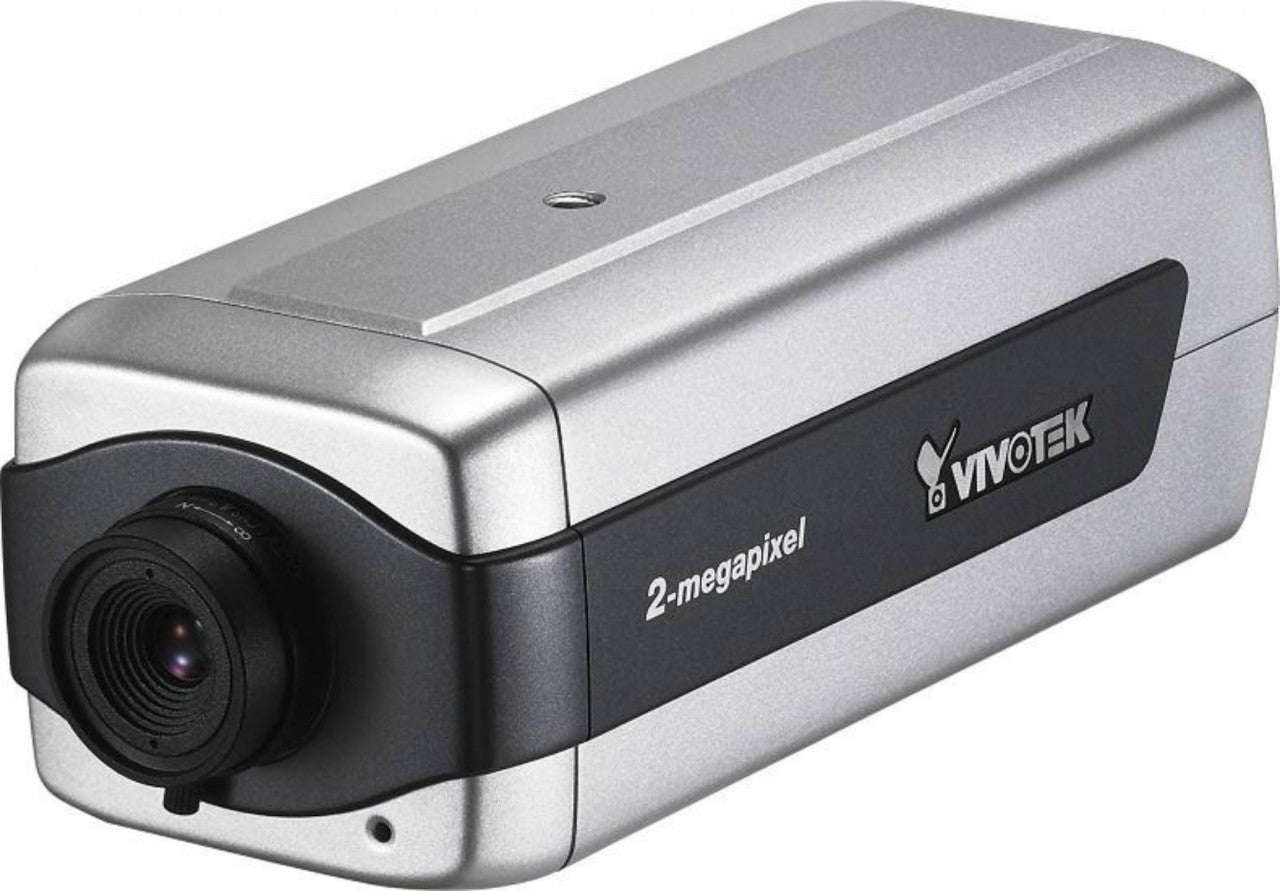

Vivotek IP7160 front
Vivotek IP7160 rear
Vivotek IP7160 rear diagram
Vivotek IP7160 front diagram
Vivotek IP7160
Vivotek IP7160 2 Megapixel Network Camera


Vivotek IP7160 2 Megapixel Network Camera

Sale price$0.00
SKU: IP7160

Discontinued; replaced by the IP8152

Vivotek IP7160 Features

  • Max Resolution: 1600x1200
  • Image Sensor: 1/3.2" CMOS sensor
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.8 Lux / F1.6
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: CS-mount, fixed
  • Focal Length: f = 4.2 mm, F1.8
  • Zoom: ePTZ
  • Iris: N/A
  • Focus: Manual
  • Field of View: 71.2° (horizontal)
  • Compression Styles: MJPEG & MPEG-4
  • Frame Rate: MPEG-4: Up to 20 fps at 1280x720, Up to 10 fps at 1600x1200; MJPEG: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure, AGC, AWB, AES, BLC (Backlight Compensation), Supports privacy masks
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: External microphone input, Audio output, External/Internal microphone switch, Supports two-way audio via SIP protocol, Supports audio mute
  • Alarm/Event Management: Triple-window video for motion detection, Tamper detection, One D/I and one D/O for external sensor and alarm, Event notification using HTTP, SMTP or FTP, Local recording of MP4 file
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, SD/SDHC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 6.1 x 2.8 x 2.4" (154 x 72 x 62mm)
  • Weight: 1.5 lbs (663g)
  • Operating Temperature: 32 ~ 122°F (0 ~ 50°C)
  • Operating Humidity: 80% RH
  • Power: 12V DC, Power consumption: Max. 7 W, 802.3af compliant Power-over-Ethernet
  • Warranty: 2 Year
  • What's Included: Power Adapter, Camera Stand, CS-Mount Lens, Software CD, Quick Installation Guide, L-Type Hex Key Wrench

Vivotek IP7160 Overview

The VIVOTEK IP7160 network camera is provided with a host of features that make it suitable for high-security locations. The camera records at very high resolutions, providing enough data to make use of video content analysis. It is also provided with intelligent software that detects attempts to vandalize the device. This camera saves network bandwidth by using industry-standard compression, which preserves video quality while reducing the size of the data. The camera is also capable of being mounted very easily, reducing installation costs. The VIVOTEK IP7160 network camera has a 2-megapixel sensor. This provides crisp images that are suitable for locations where detailed video has to be captured. The camera has a wide field of coverage, allowing it to take in large areas of a room. The VIVOTEK IP7160 is also provided with its own onboard external storage slot and accepts SD/SDHC cards. This camera can use this storage to prevent data loss during network outages. The camera is provided with technology that reduces the frame rate during times of inactivity and increases it when there is activity in front of the camera. The VIVOTEK IP7160 network camera can be powered directly from its Ethernet connection. This allows the camera to be installed without the need to provide another source of electricity other than the network. The camera will detect attempts to redirect the field of view, cover the lens or spray paint the lens. The camera is also provided with two-way audio capability.
